23 12 055 Replacing Radial Seal For Output Flange (S5D 260Z/ 310Z): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Tightening torque, 23 71 1AZ / 2AZ. Refer to 23 71 TRANSMISSION MOUNTS .

Brace output flange with special tool 23 0 020.

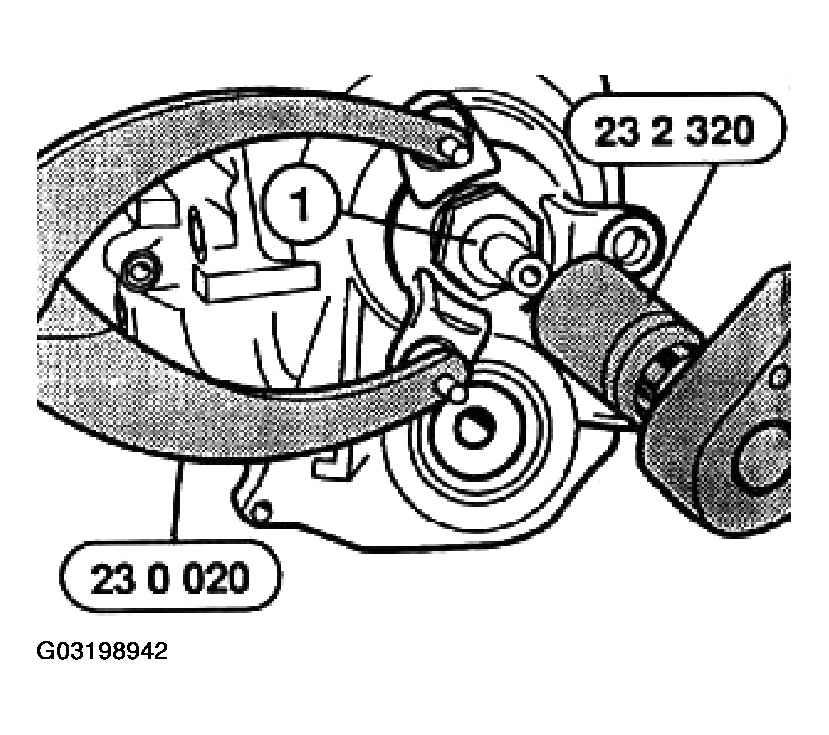

Fig 1: Releasing Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release collar nut (1) with special tool 23 2 320.

Install collar nut (1) with screw retaining compound.

Tightening torque, 23 21 1AZ. Refer to 23 21 TRANSMISSION SHAFTS .

Detach output flange with special tool 33 1150 from output shaft.

Heat output flange to approx. 80°C and push onto output shaft.

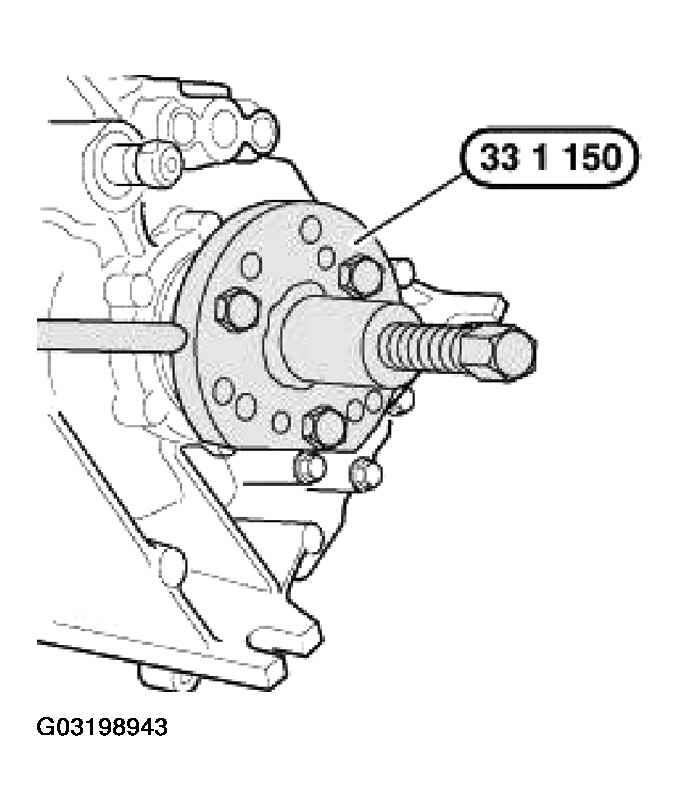

Fig 1: Removing Output Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Remove radial seal with special tool 00 5 010.

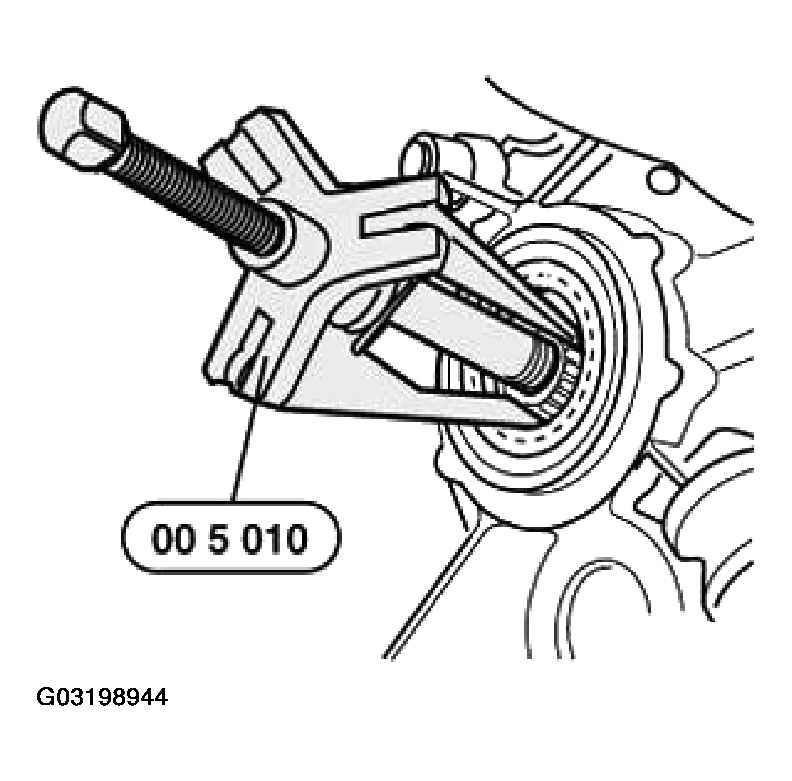

Fig 2: Removing Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing lips of new radial seal (3) with transmission oil.

Drive radial seal (3) home flush with special tool 23 2 300.

NOTE: To drive in: use a plastic hammer.

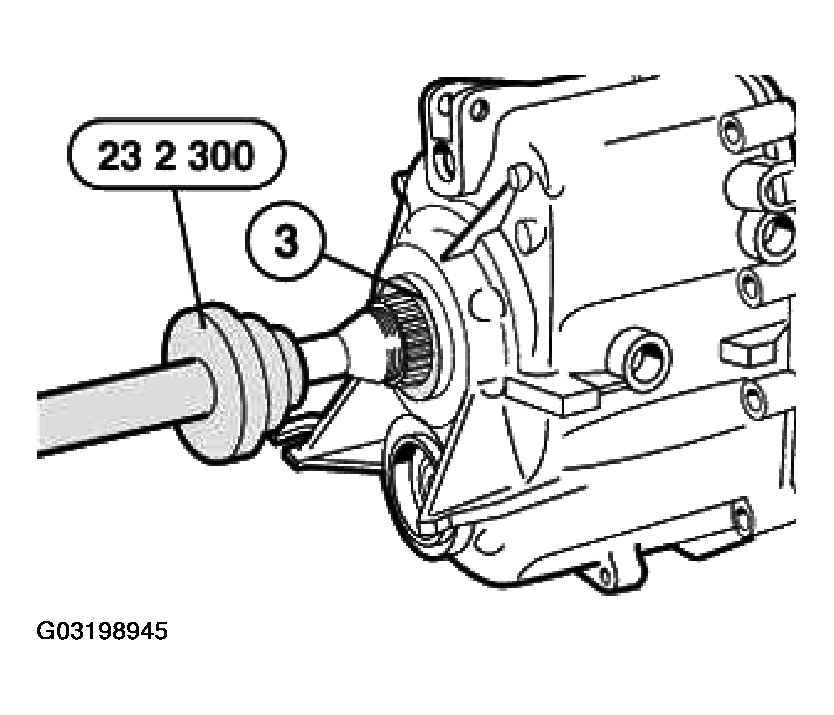

Fig 3: Installing Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.
