1812 030 Removing And Installing/Replacing Rear Muffler (Z3 / S54)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Support rear mufflers with lifter.

Release screw connections (1) between center muffler and rear muffler.

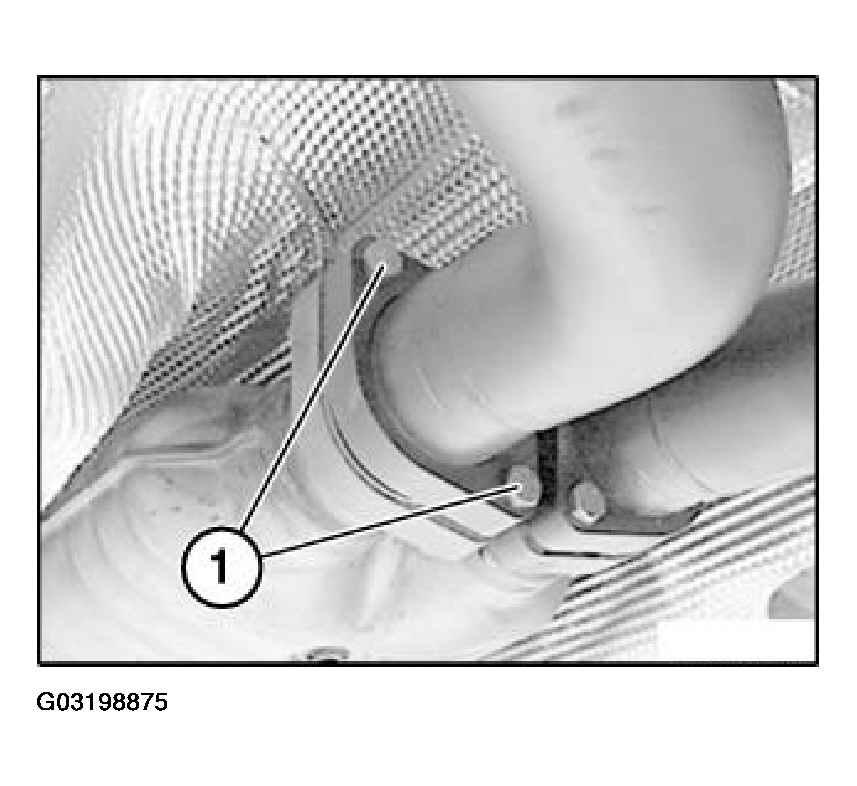

Fig 1: Removing Screw Between Center Muffler And Rear Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check gaskets, replace if necessary.

Replace self-locking nuts.

Coat threads with -CRC- copper paste.

Release screw (1).

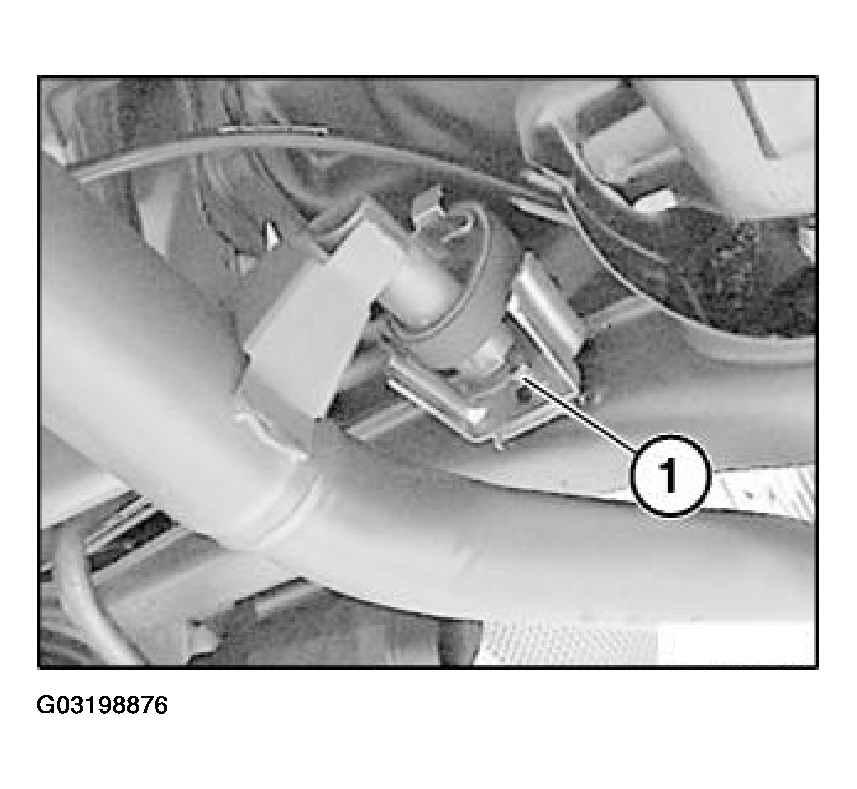

Fig 2: Locating Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After full installation of exhaust system, align exhaust brackets until free from tension by moving and then tighten down.

Release hexagon nuts (1).

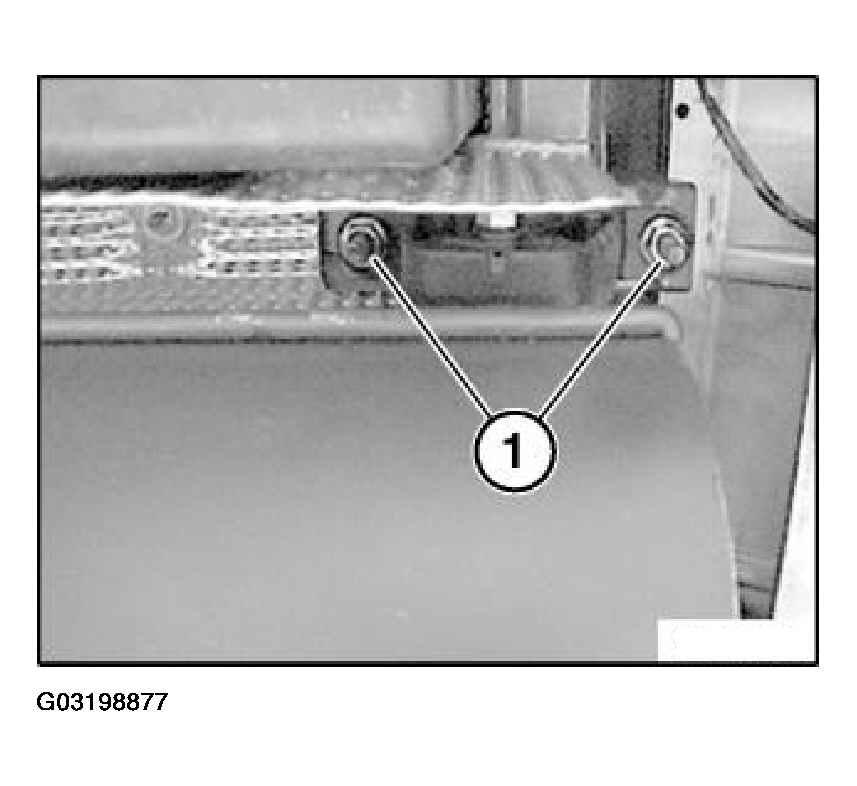

Fig 3: Releasing Hexagon Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release hexagon nuts (1).

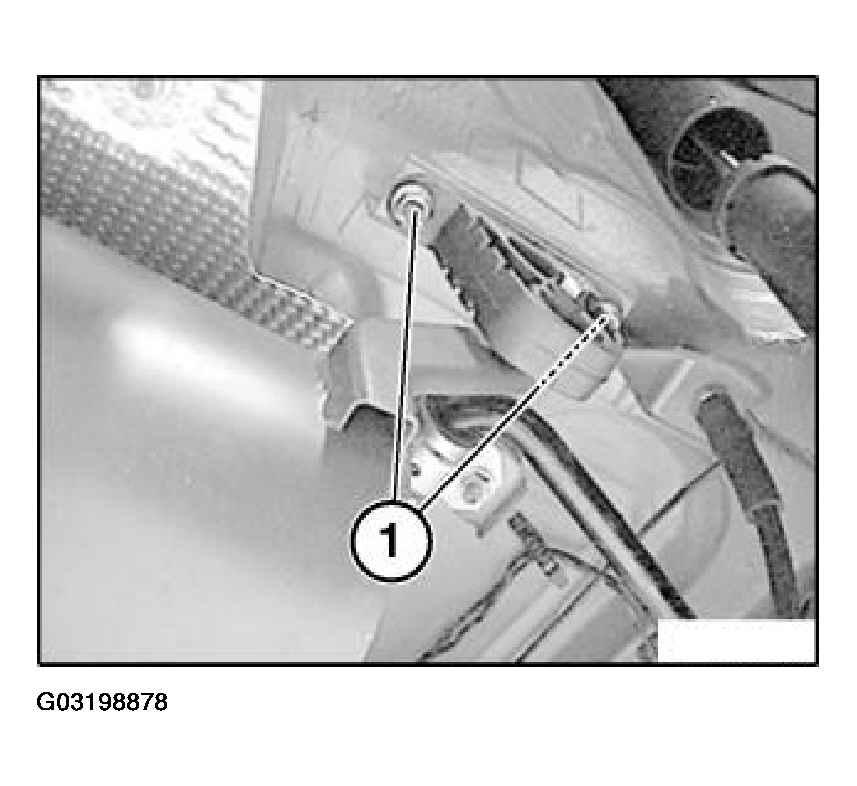

Fig 4: Locating Hexagon Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear muffler towards bottom.
