13 54 045 Removing and installing/sealing a throttle assembly (S54): Notes

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD .

Remove fan cowl.

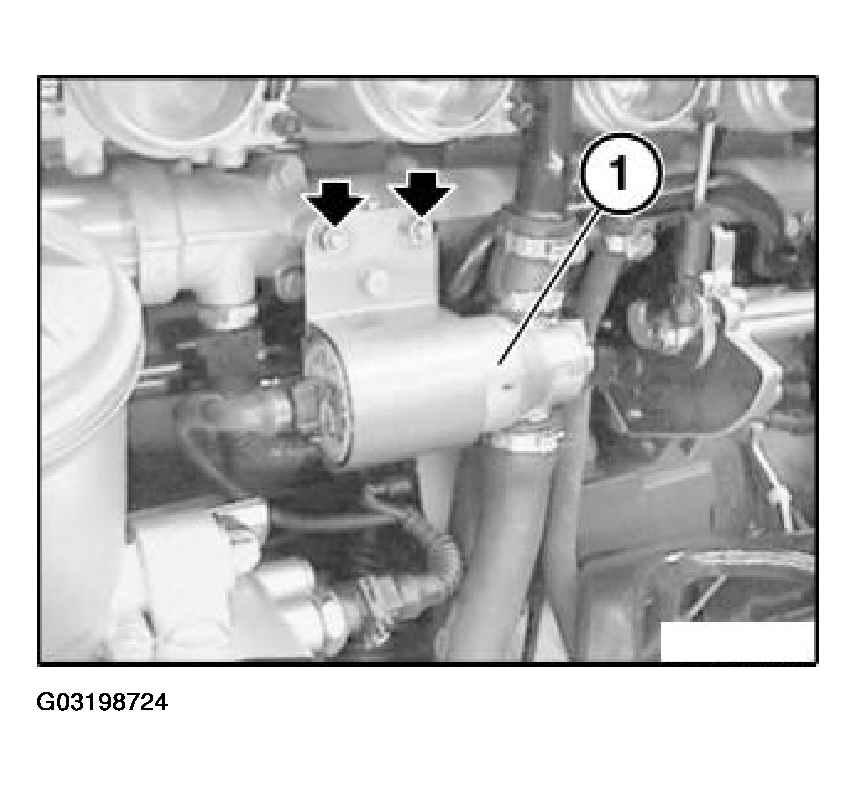

Release nuts, remove idle-speed control valve (1) together with holder from assembly and place to one side.

Fig 1: Removing Idle-Speed Control Valve

Courtesy of BMW OF NORTH AMERICA, INC.

If throttle assembly 1 is to be removed, remove throttle potentiometer. Refer to 13 63 555 Replacing throttle potentiometer (S54)  .

If throttle assembly 6 is to be removed, remove pulse generator of inlet camshaft. Refer to 12 14 523 REPLACING PULSE GENERATOR ON INLET CAMSHAFT .

Remove fuel injector rail. This operation is described in the section "Removing and installing/replacing a fuel injector". Refer to 13 64 501 Removing and installing/replacing a fuel injector (S54)  . Remove auxiliary air line.

Removal:

Removal of a throttle assembly is described separately from its installation.

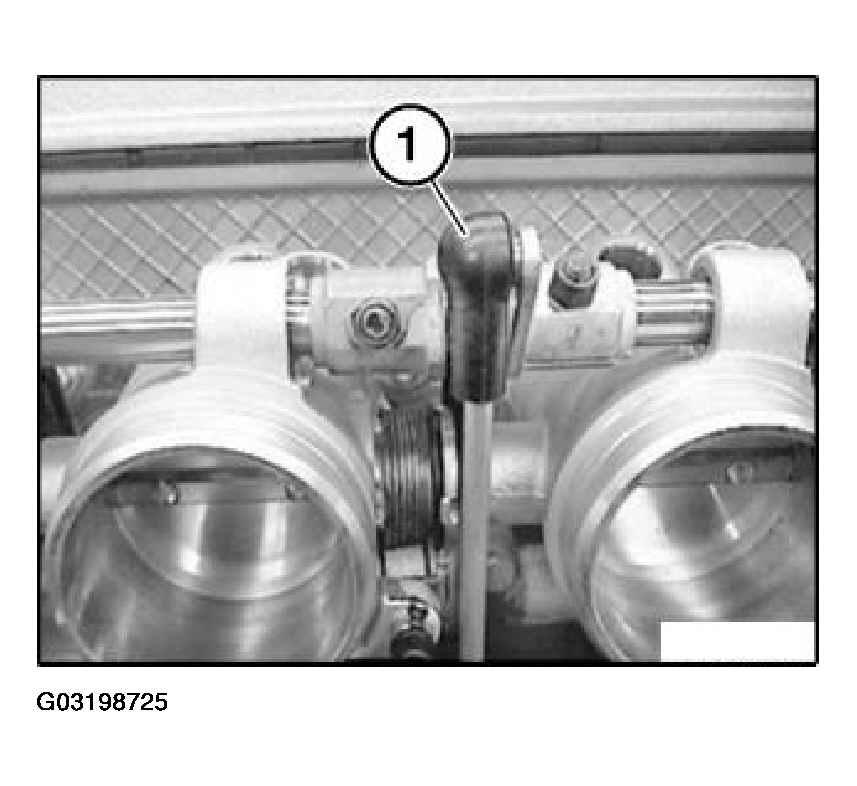

Unclip pull rod (1) for throttle actuator on throttle side (long pull rod).

Fig 2: Unclipping Long Pull Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip pull rods (1) on all throttle assemblies.

Fig 3: Unclipping Pull Rods On Throttle Assemblies

Courtesy of BMW OF NORTH AMERICA, INC.

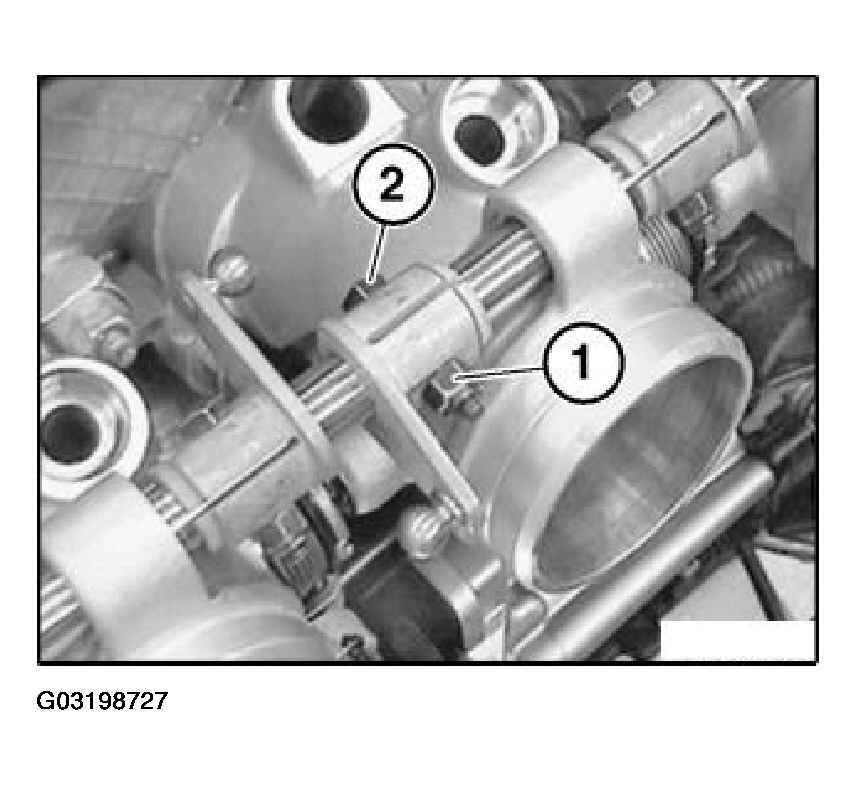

Release screw connection of actuating lever on long pull rod.

Always grip screw (2) and turn nut (1) in so doing.

Fig 4: Releasing Screw Connection Of Actuating Lever On Long Pull Rod

Courtesy of BMW OF NORTH AMERICA, INC.

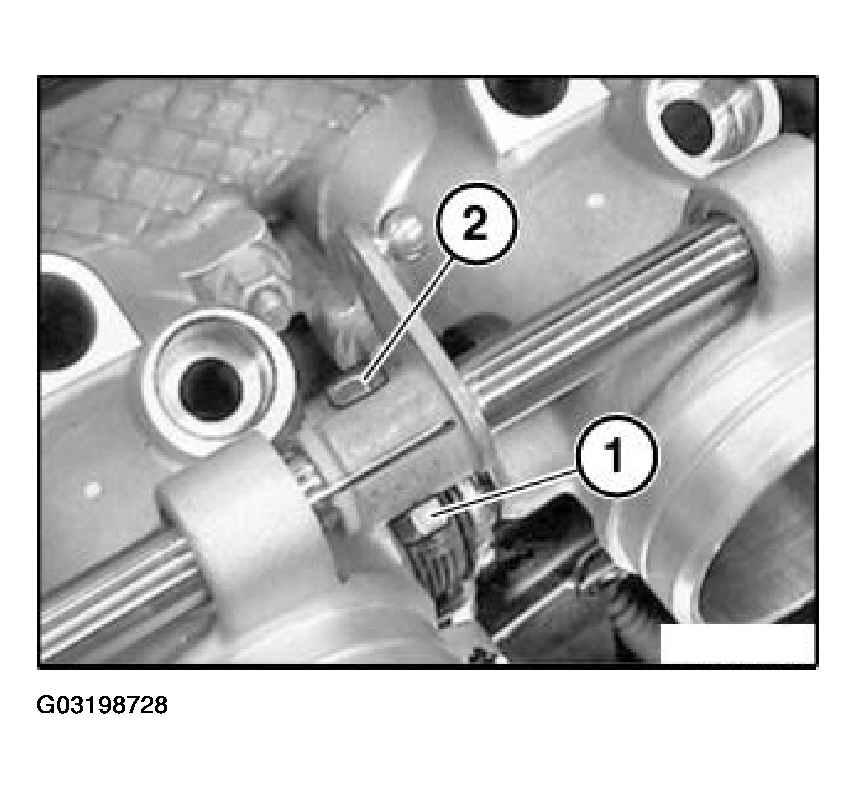

Release screw connection of actuating lever with actuating shaft on all throttle assemblies.

Always grip screw (2) and turn nut (1) in so doing.

Fig 5: Releasing Screw Connection On All Throttle Assemblies

Courtesy of BMW OF NORTH AMERICA, INC.

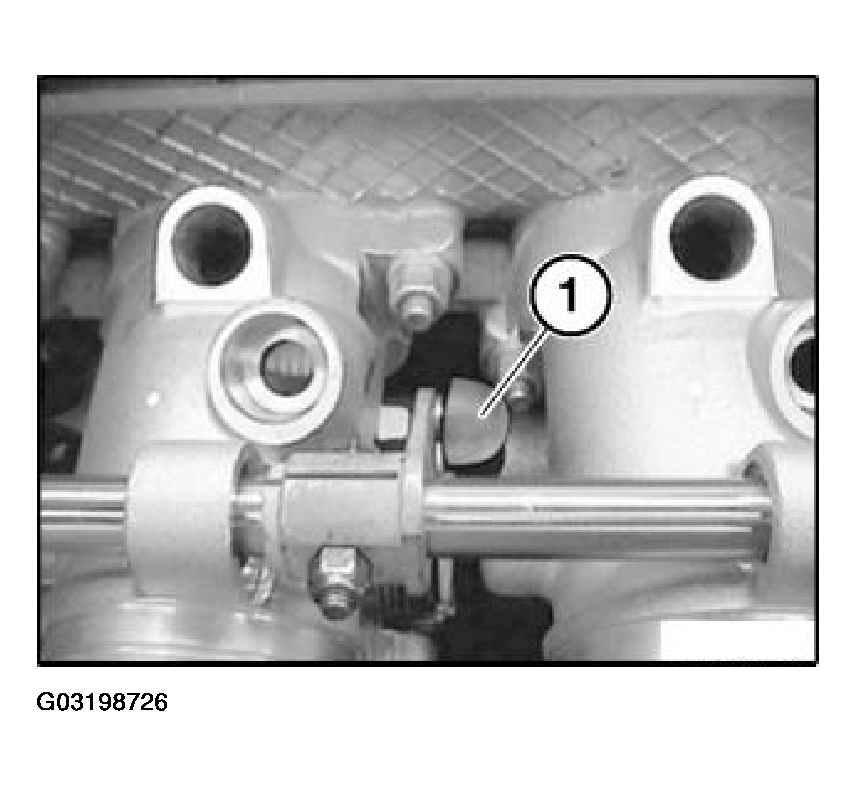

Detach lock washer (1) from actuating shaft.

Fig 6: Detaching Lock Washer From Actuating Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

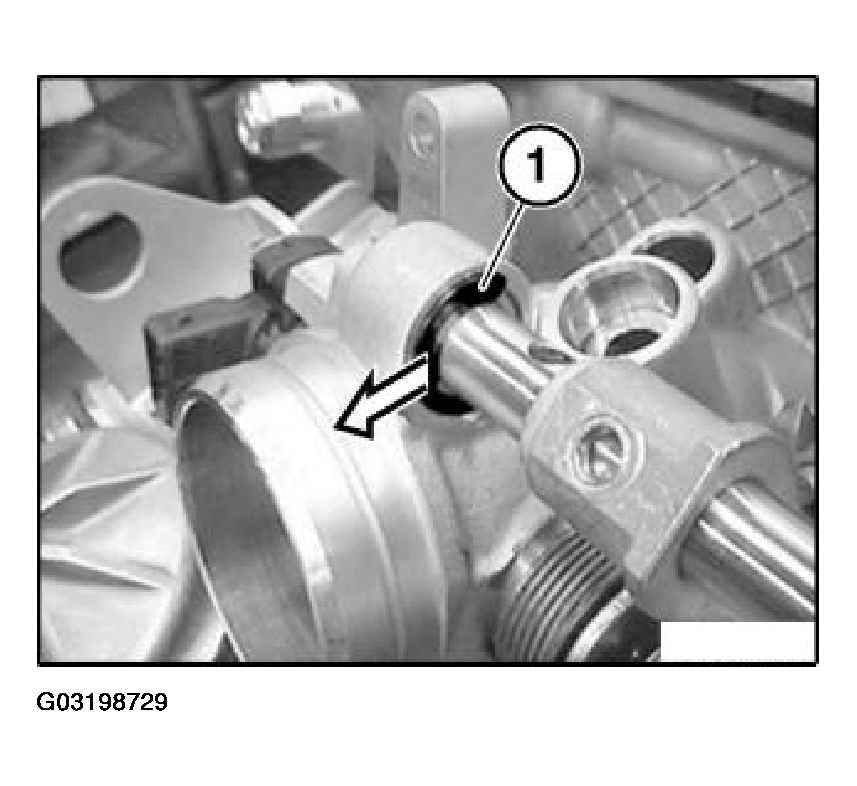

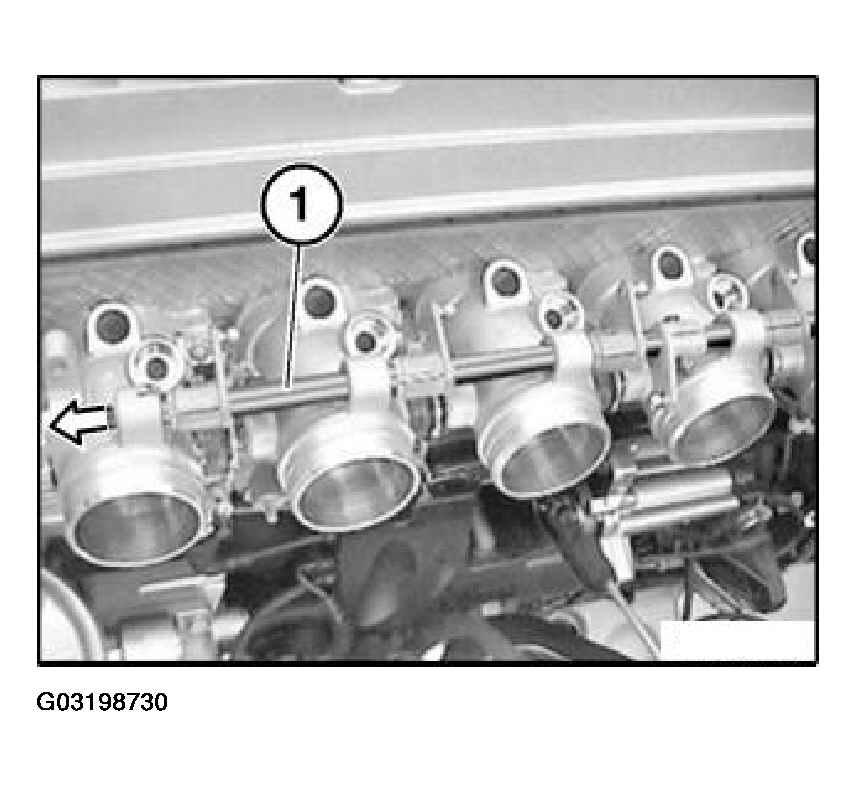

Withdraw actuating shaft (1) in direction of arrow from throttle assemblies.

Fig 7: Withdrawing Actuating Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

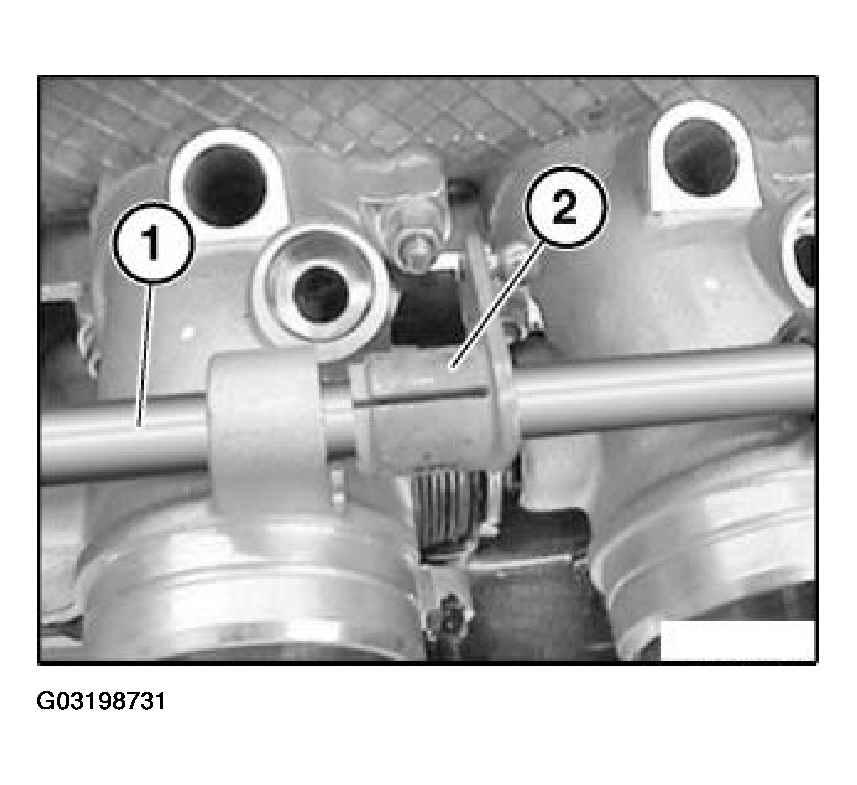

Support actuating lever (2) when withdrawing actuating shaft (1).

Fig 8: Supporting Actuating Lever

Courtesy of BMW OF NORTH AMERICA, INC.

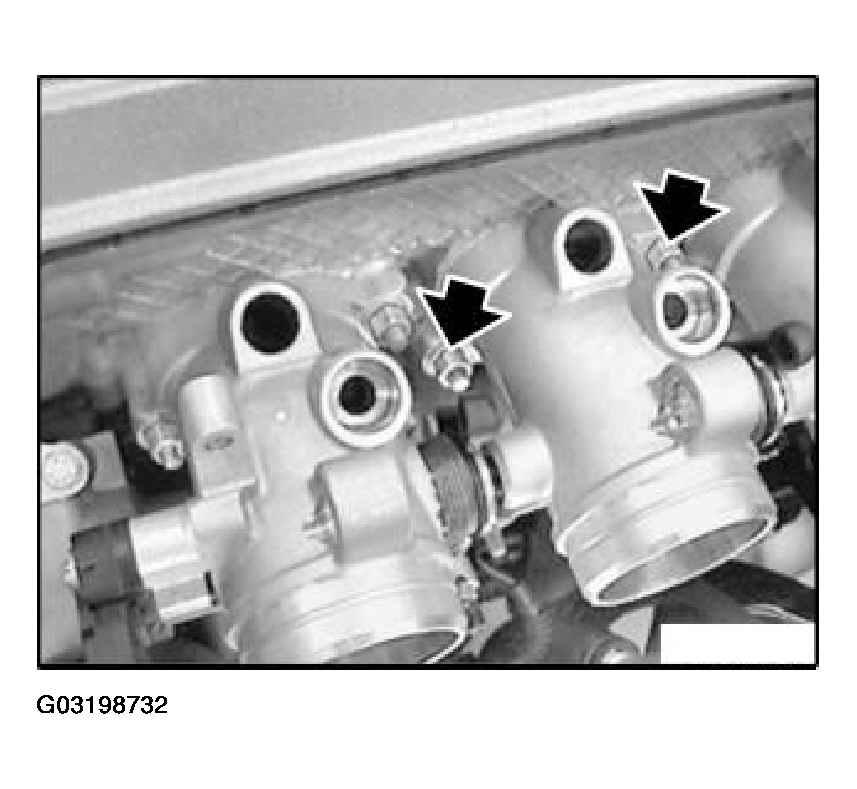

Release screw connection of corresponding throttle assembly.

Remove throttle assembly.

Fig 9: Removing Throttle Assembly

Courtesy of BMW OF NORTH AMERICA, INC.
