Special tools required:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

12 1 120

Remove heater bulkhead.

Release screw.

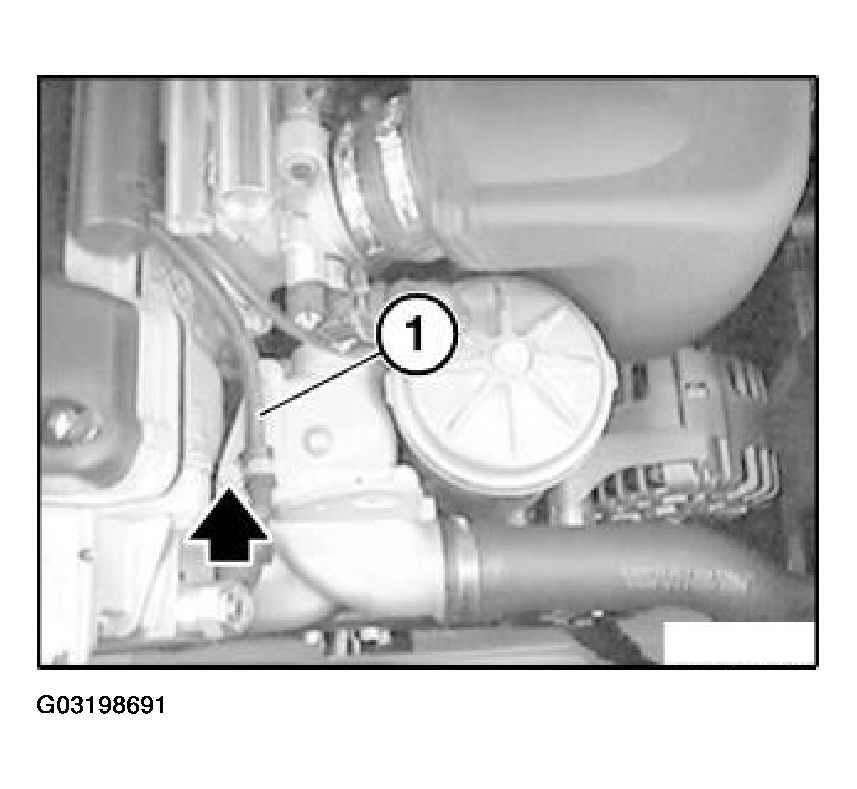

Remove cable (1) from holder.

Fig 1: Removing Cable From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

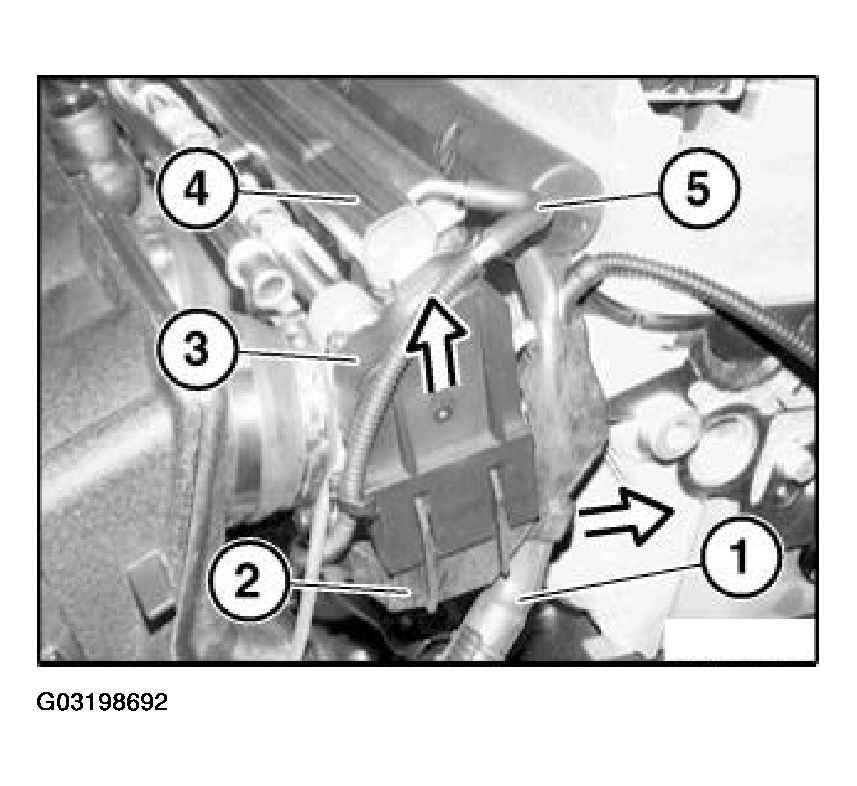

Detach wiring harness (1) for fuel injector rail from holder (2).

Fig 2: Detaching Wiring Harness For Fuel Injector Rail

Courtesy of BMW OF NORTH AMERICA, INC.

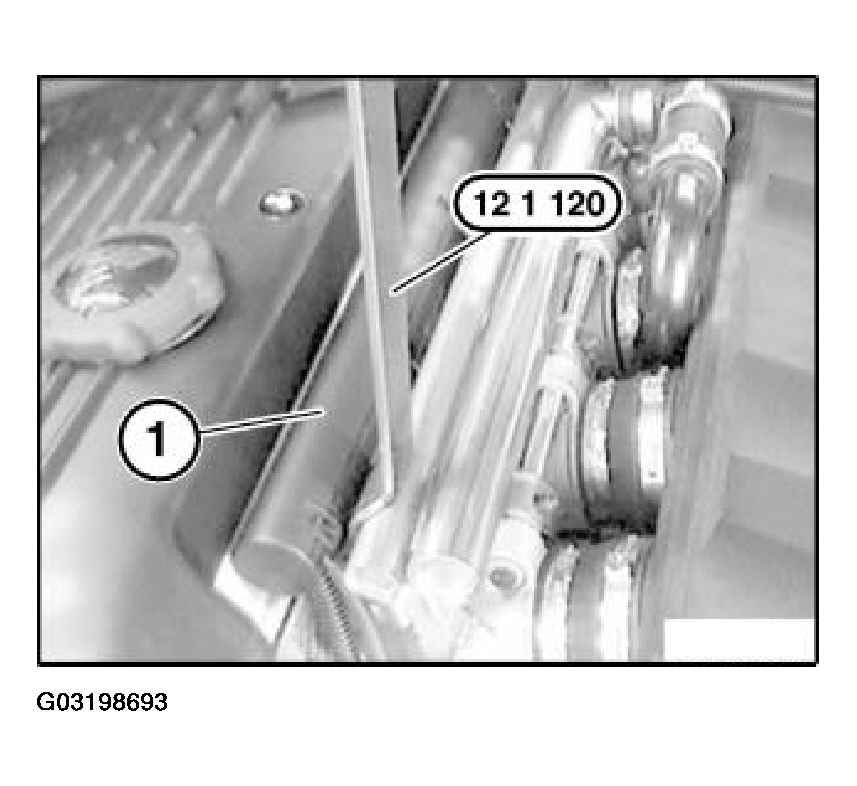

CAUTION: The connector strip (1) may break if it is removed without special tool 12 1 120

Fig 3: Removing Connector Strip

Courtesy of BMW OF NORTH AMERICA, INC.

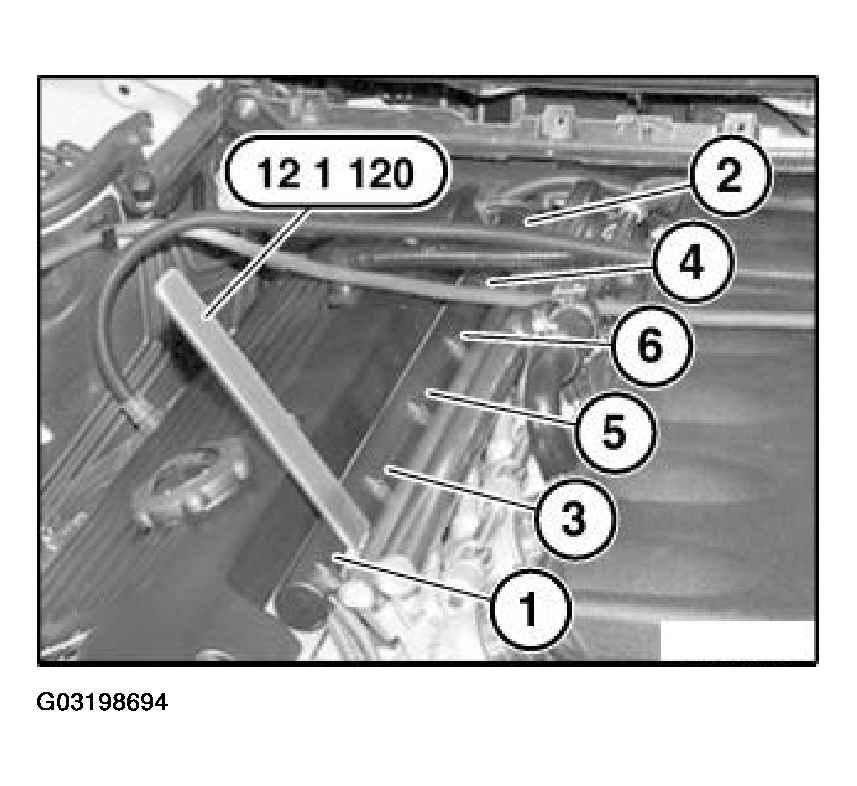

Unlock connector strip with special tool 12 1 120 in sequence 1 to 6.

Lay connector strip to one side.

Fig 4: Unlocking Sequence Of Connector Strip

Courtesy of BMW OF NORTH AMERICA, INC.

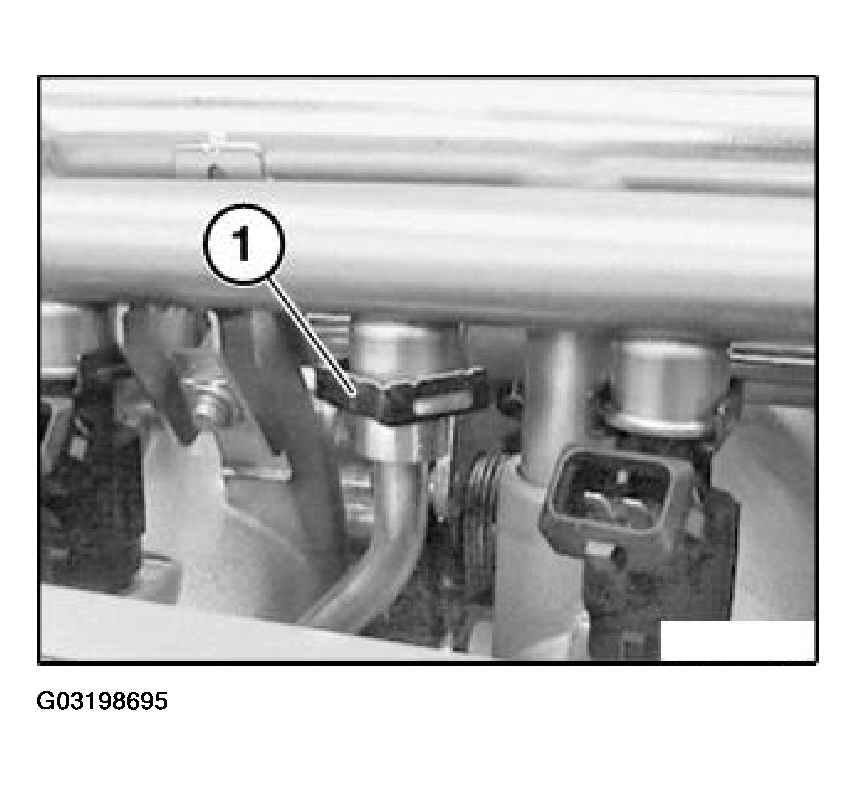

Detach retainer (1). Pull fuel line out of fuel injector rail.

Fig 5: Pulling Fuel Line Out Of Fuel Injector Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Catch and dispose of escaping fuel.

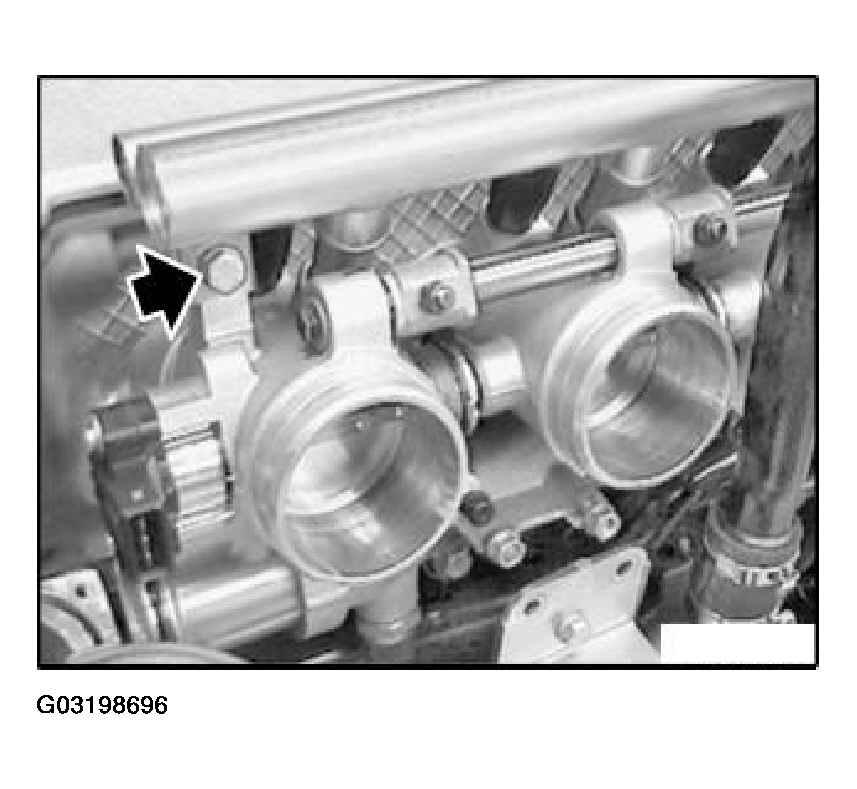

Release screw connection of fuel injector rail and air pipe on left and right.

Fig 6: Removing Fuel Injector Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out fuel injector rail towards top.

Recycling:

Catch and dispose of escaping fuel.

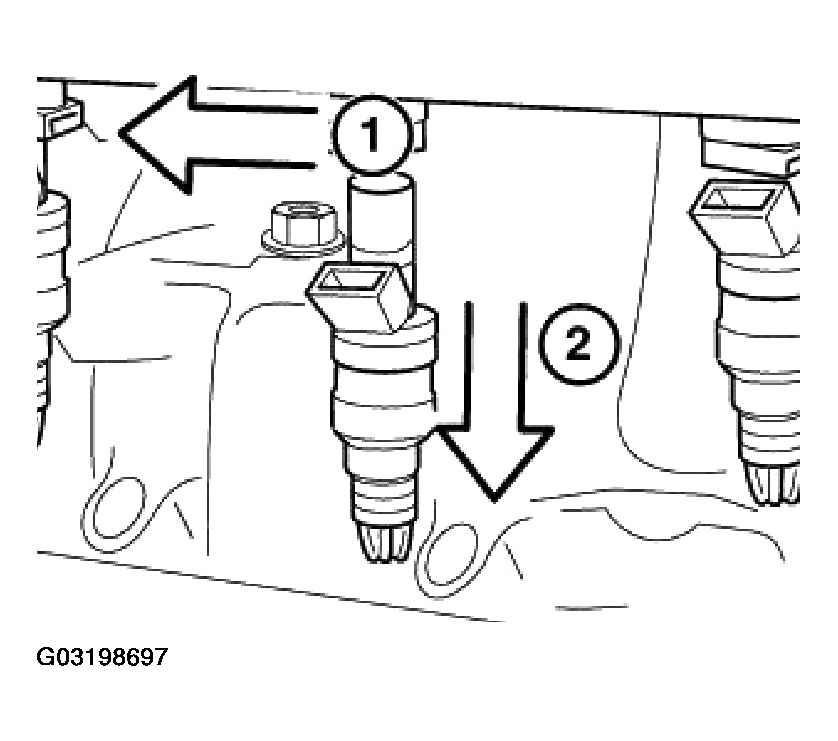

Lever out retainers (1) and remove fuel injectors (2) from injection pipe.

Fig 7: Removing Fuel Injectors From Injection Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

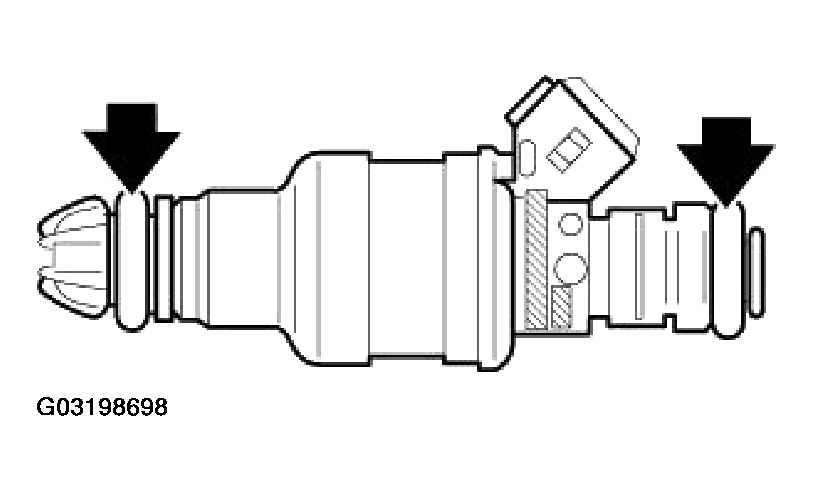

Check O-rings, replace if necessary.

When fitting, coat all O-rings with lubricant SAE 90.

Fig 8: Locating O-Rings

Courtesy of BMW OF NORTH AMERICA, INC.
