Version, fuel hoses with integrated unlocking facility:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Press fuel hose (1) downwards and keep pressed.

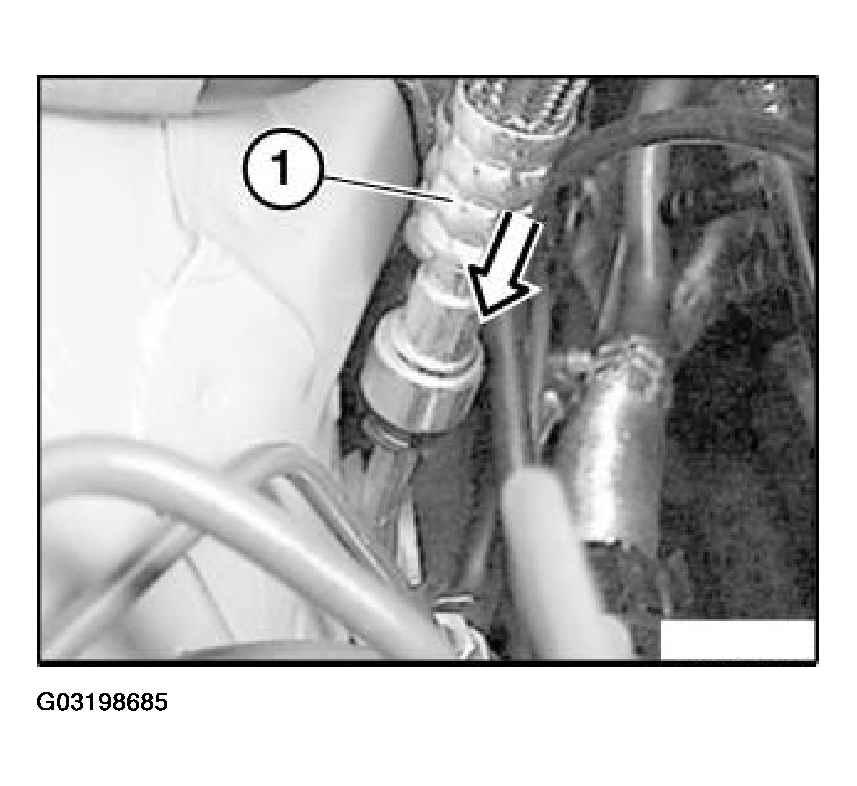

Fig 1: Pressing Fuel Hose Downwards
G03198685Courtesy of BMW OF NORTH AMERICA, INC.

Press unlocking ring (2) upwards, keep pressed and detach fuel hose (1).

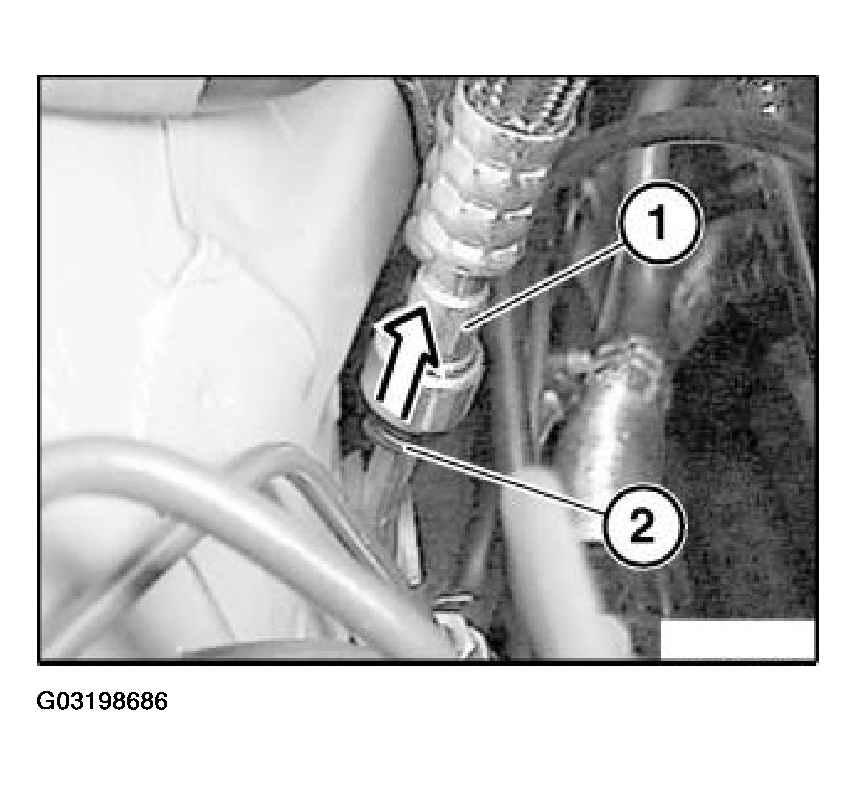

Fig 2: Detaching Fuel Hose
G03198686Courtesy of BMW OF NORTH AMERICA, INC.
