Section 59 (Fuel System - Repair Instructions)
>>
injection nozzle and Injector
>>
13 53 540 Replacing, sealing fuel hoses
>>
Seal off fuel hoses:
Seal off fuel hoses:
WARNING:
This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
Fuel hoses with hose clamps:
Seal hoses with special tool 13 3 010.

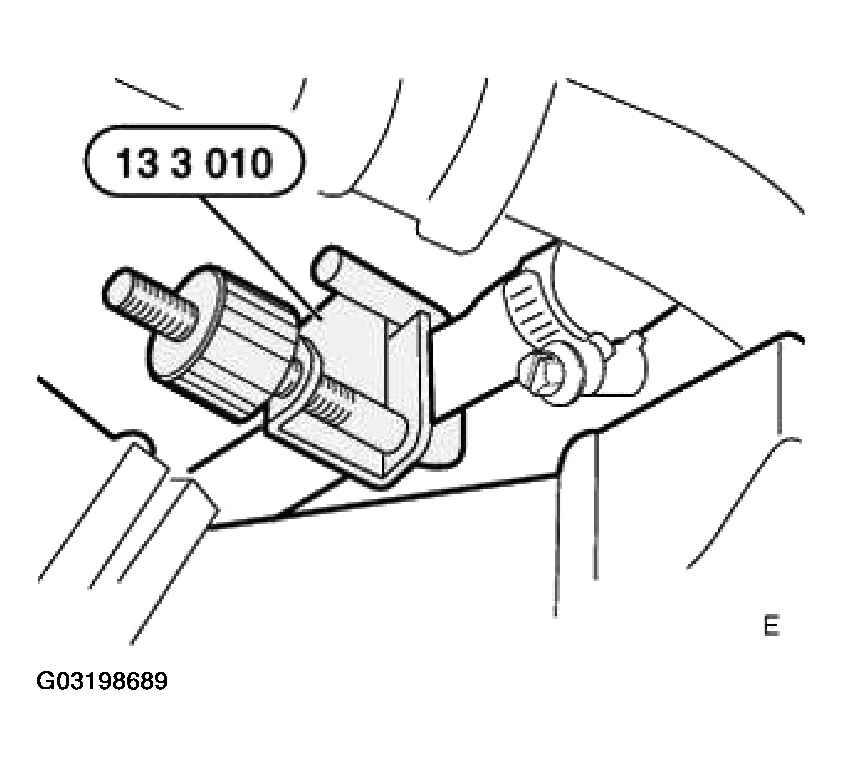

Fig 1: Sealing Hoses
Courtesy of BMW OF NORTH AMERICA, INC.
