13 31 035 Replacing fuel line (S54)

Special tools required:

• 12 1 120

Interrogate fault memory of DME control unit.

Switch off ignition.

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD .

Remove starter motor

Recycling

Fuel emerges when fuel line is detached. Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

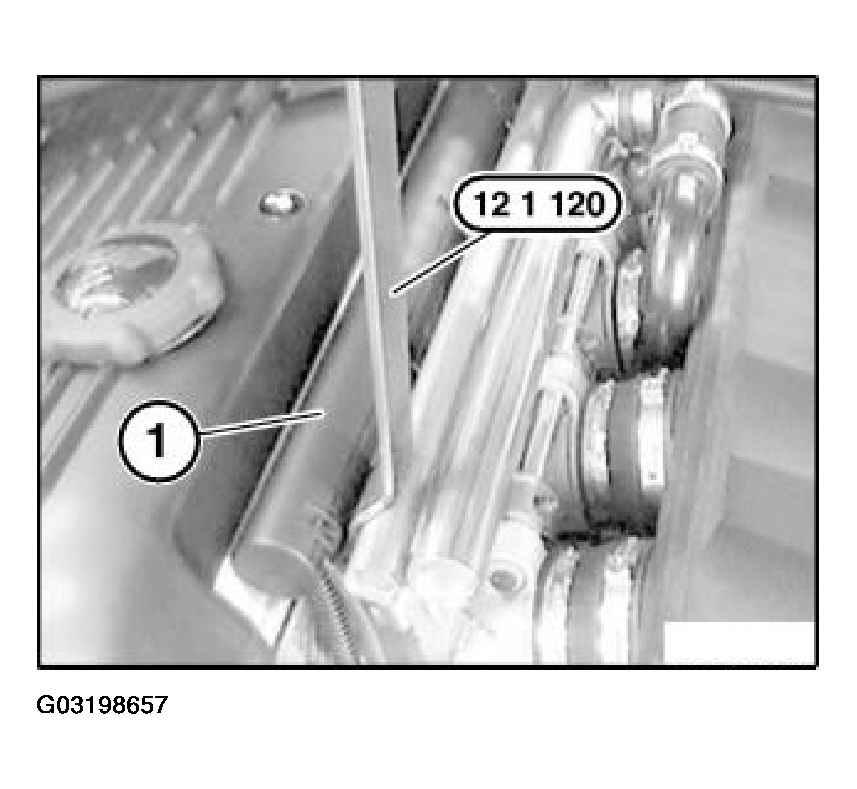

Fig 1: Removing Connector Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector strip with special tool 12 1 120 in sequence 1 to 6.

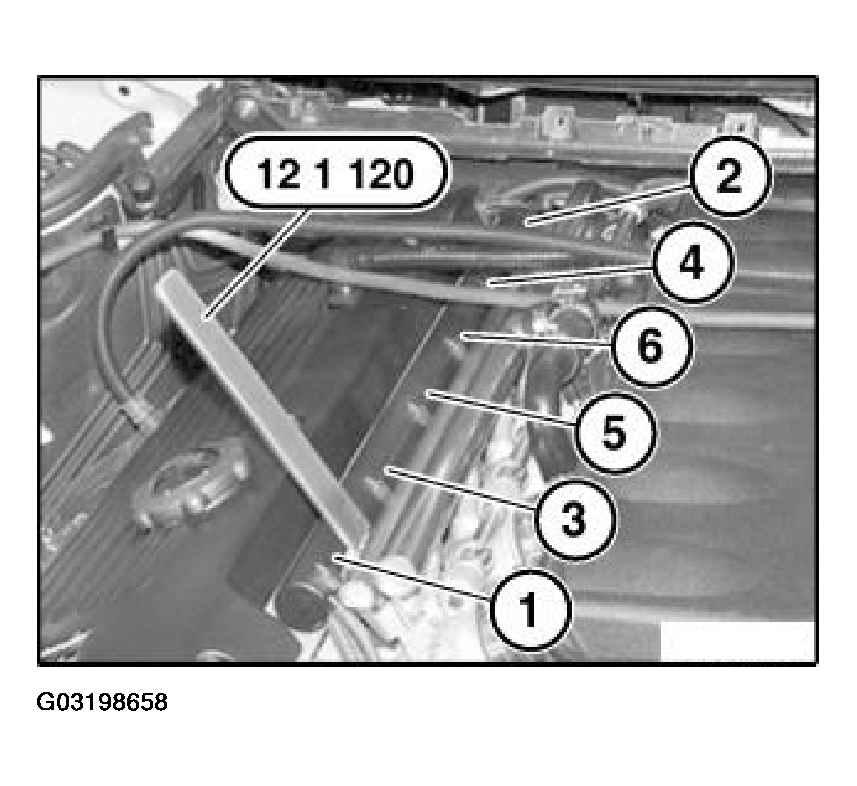

Fig 2: Unlocking Sequence Of Connector Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Release upper screw of fuel line (2) from return line.

Unclip vacuum line from holders on fuel line.

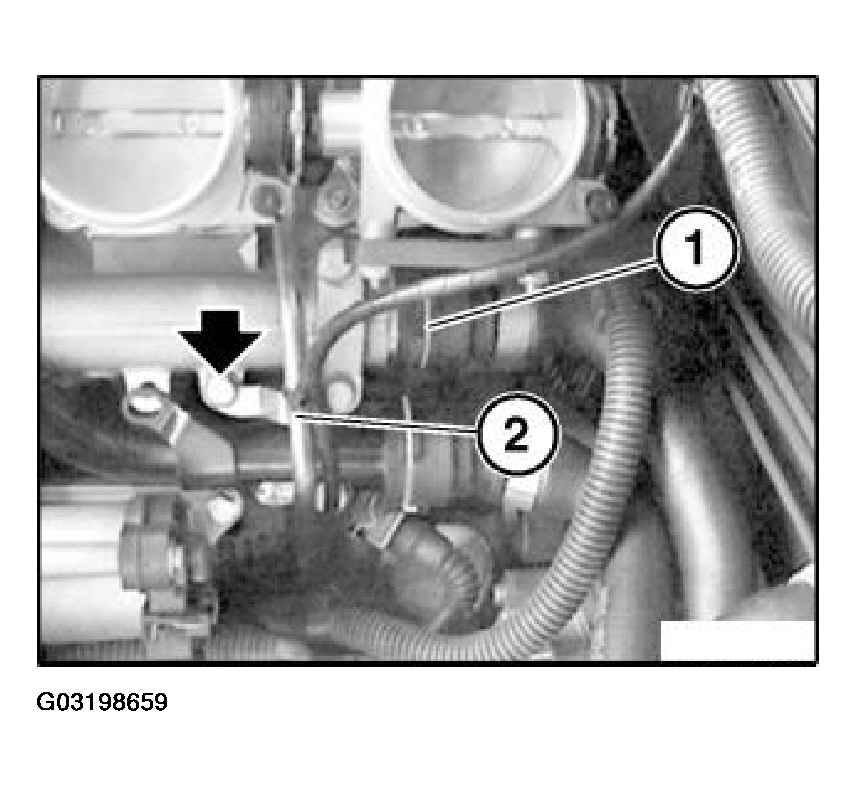

Fig 3: Releasing Upper Screw Of Fuel Line From Return Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release lower screw of fuel line (2) from engine block.

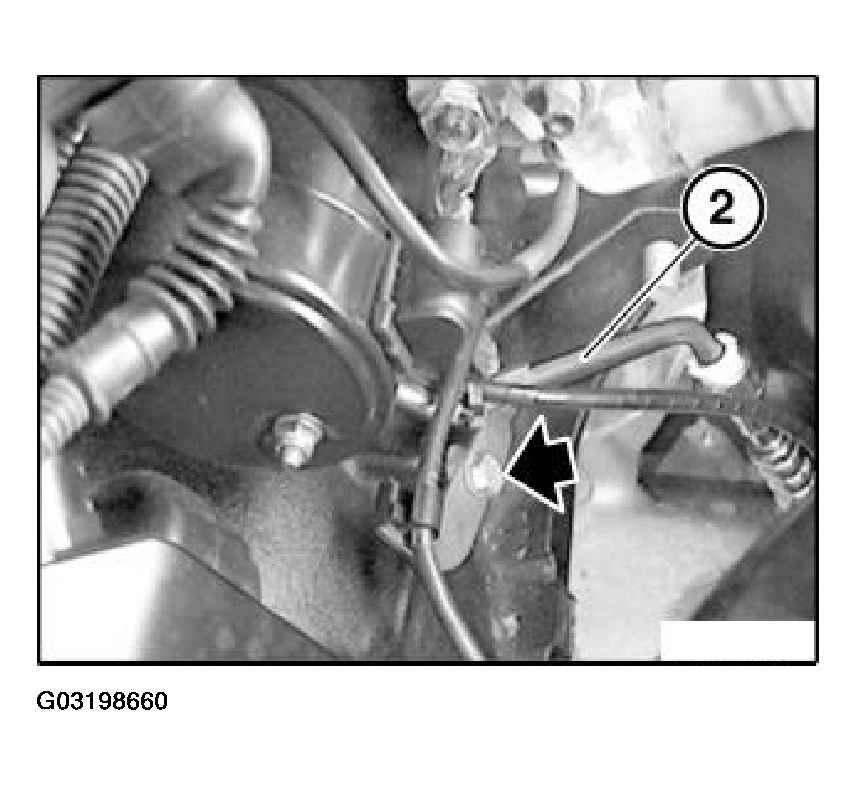

Fig 4: Releasing Lower Screw Of Fuel Line From Engine Block

Courtesy of BMW OF NORTH AMERICA, INC.

Follow instructions for unlocking fuel line. Refer to 13 53 540 Replacing, sealing fuel hoses  .

Unlock fuel feed line and detach from fuel line (2).

Detach retainer (1).

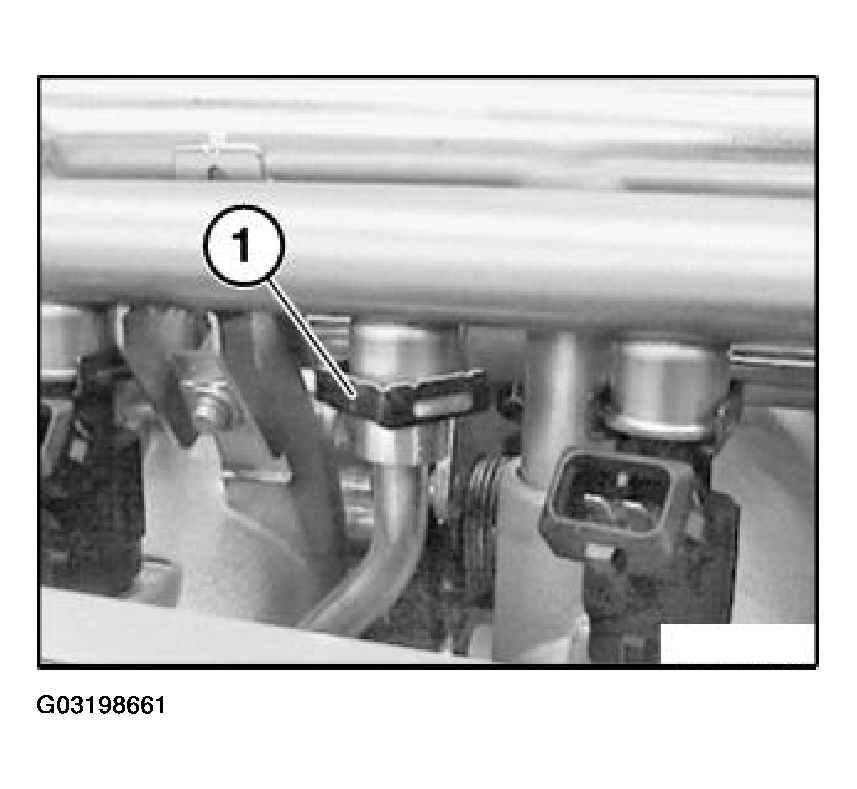

Fig 5: Detaching Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Pull fuel line out of fuel injector rail and remove.
