12 72 010 Removing and installing/replacing throttle actuator (S54)

Turn off ignition.

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (S54) .

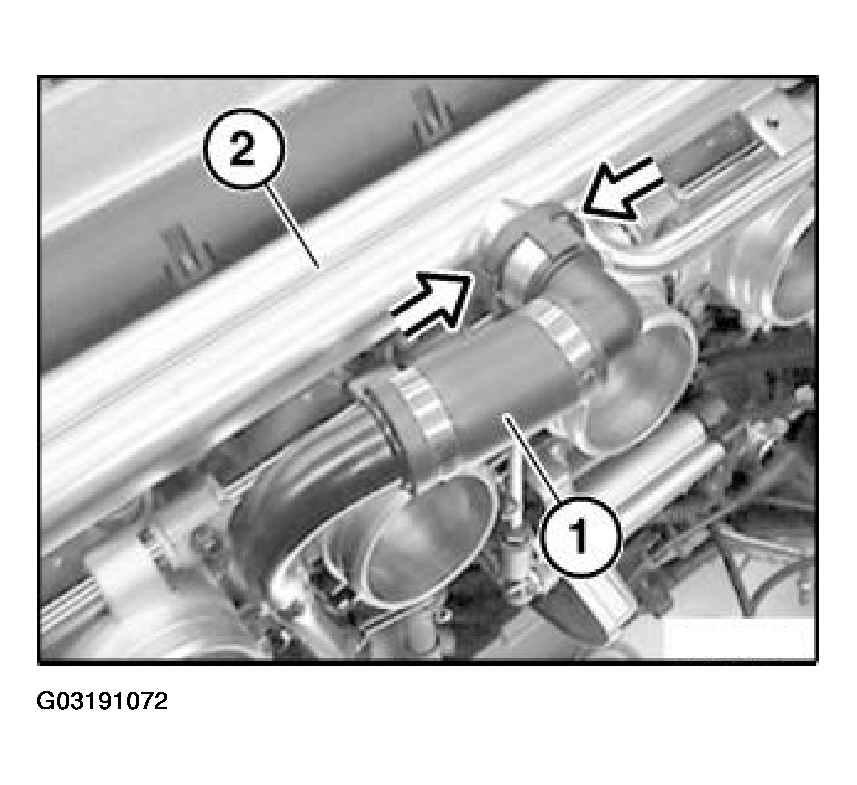

Press lock together and detach air hose (1) from air pipe (2).

Fig 1: Detaching Air Hose From Air Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

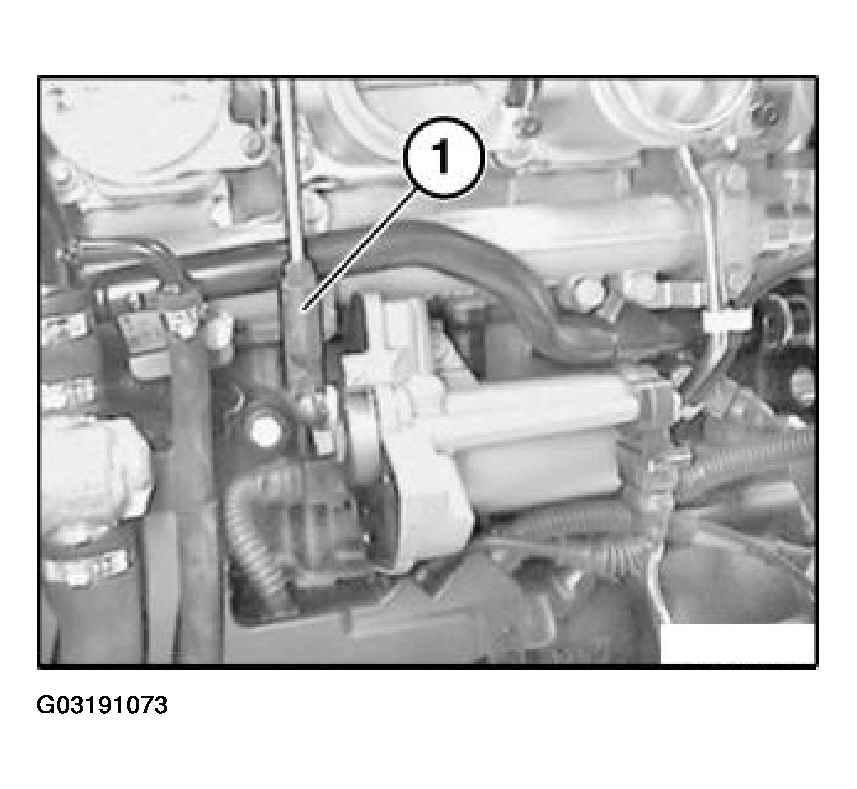

Unhook pull rod (1) from ball head on servomotor side.

Fig 2: Unhooking Pull Rod From Ball Head

Courtesy of BMW OF NORTH AMERICA, INC.

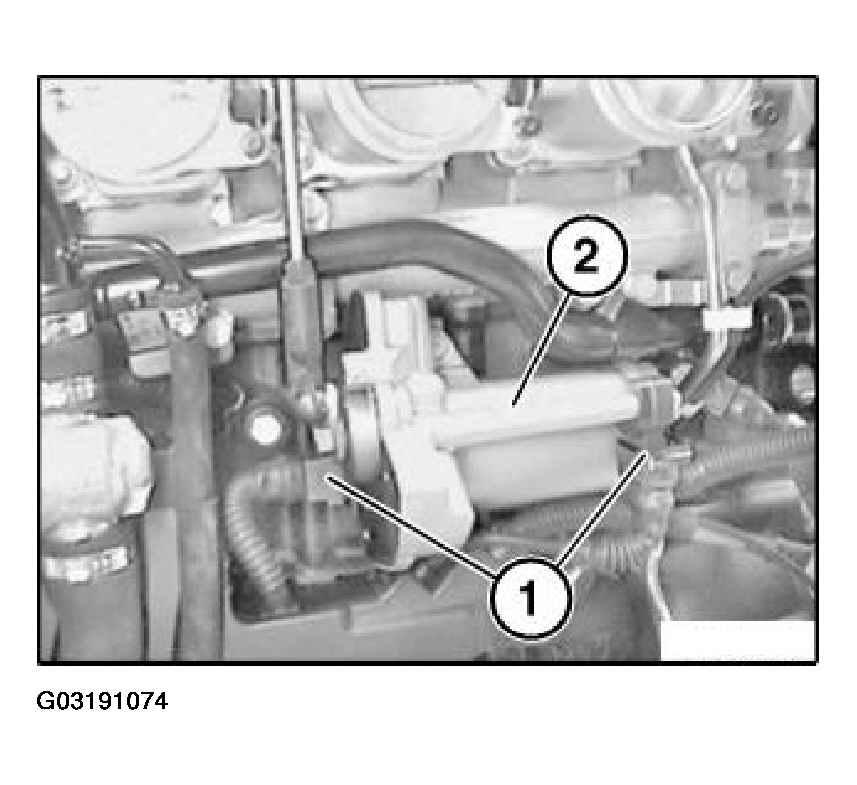

Unlock plug (1) and detach from throttle actuator (2).

Fig 3: Detaching Plug From Throttle Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

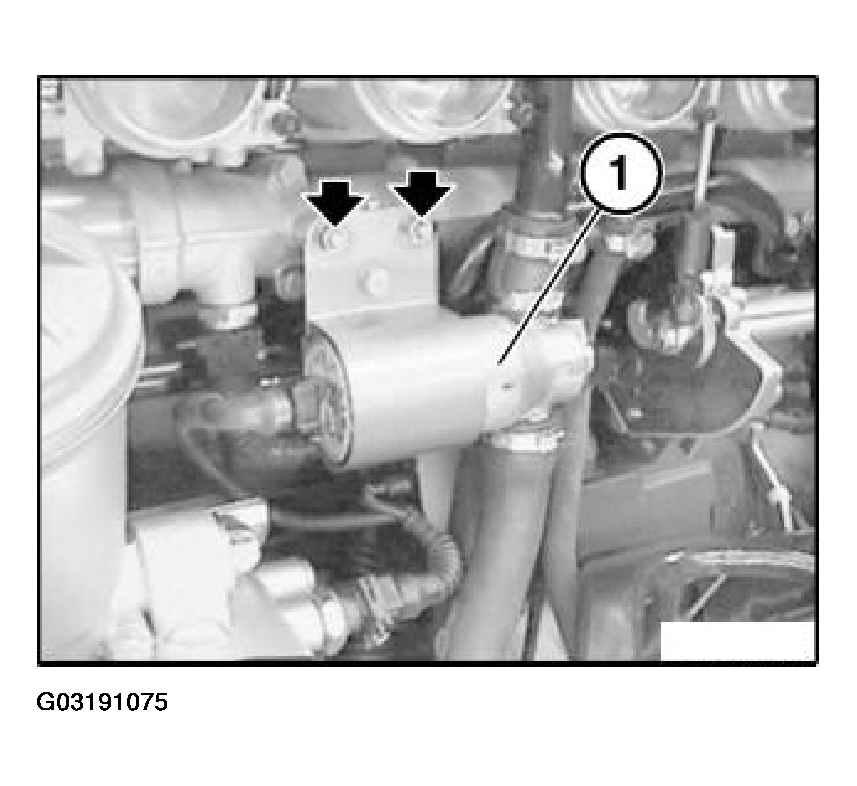

Release nuts and lay idle-speed control valve (1) to one side to gain access to screw connection of cable duct.

Fig 4: Releasing Nuts Of Idle-Speed Control Valve

Courtesy of BMW OF NORTH AMERICA, INC.

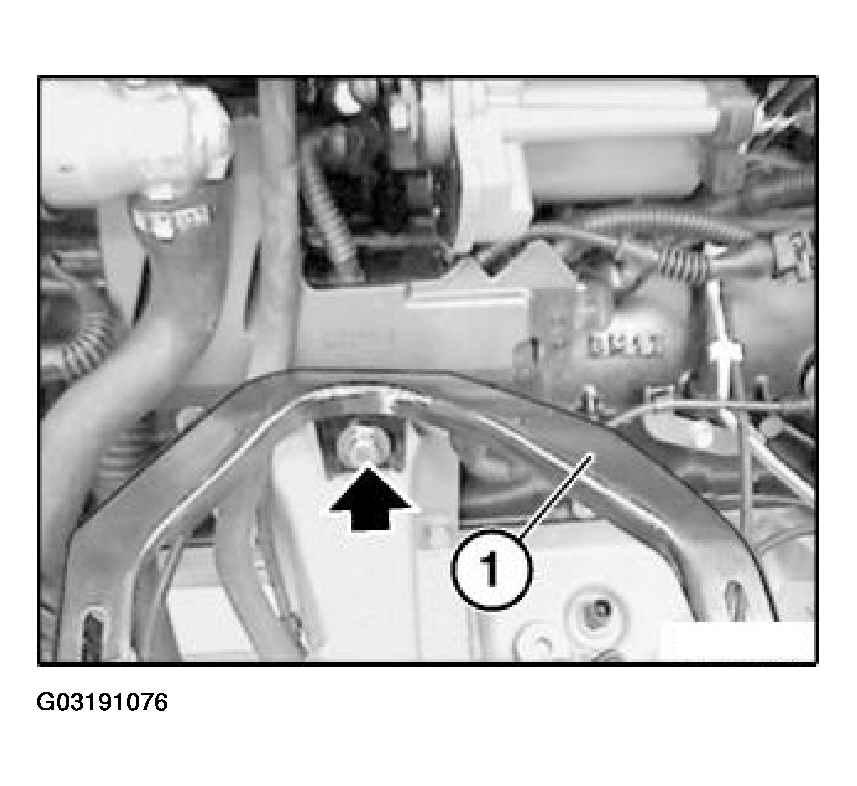

Release screw and remove manifold support (1).

Fig 5: Removing Manifold Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation  :

In order to avoid torsion stress on manifold, secure manifold support with screw but do not tighten down screw. Only tighten down screw when manifold is mounted on throttle assembly.

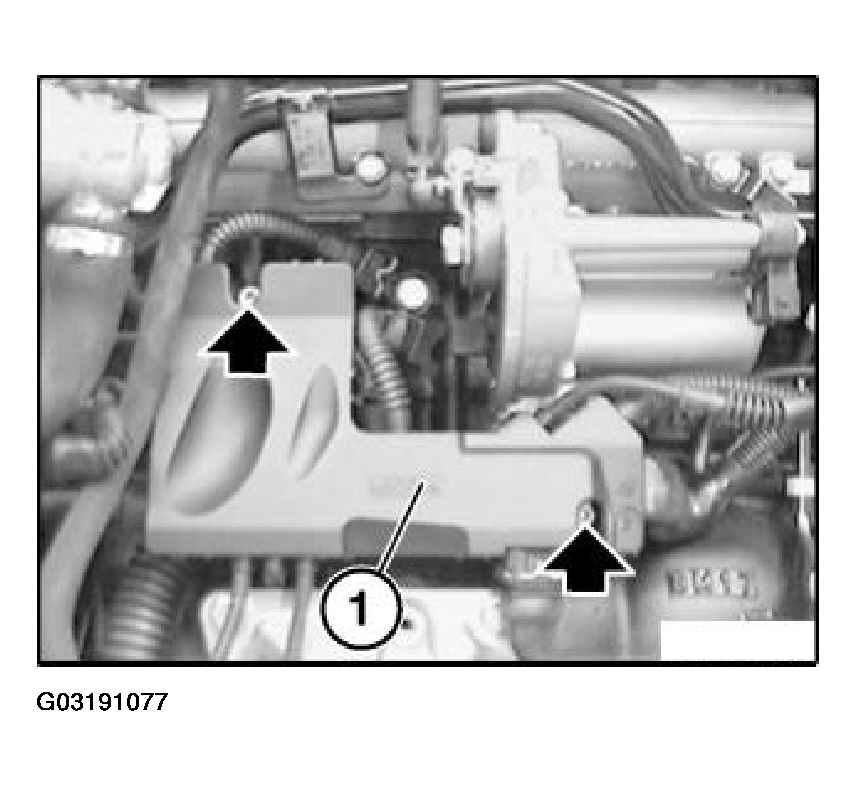

Release screws.

Lay cable duct (1) to one side.

Fig 6: Removing Cable Duct

Courtesy of BMW OF NORTH AMERICA, INC.

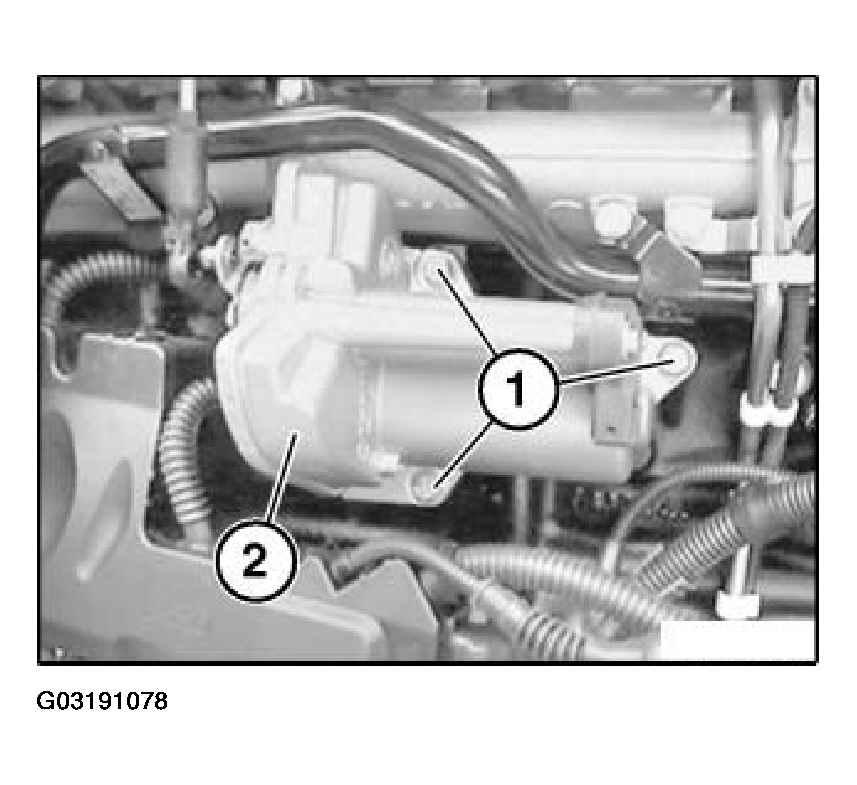

Release screws (1).

Remove throttle actuator (2).

Fig 7: Removing Throttle Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation  :

Adjust full-load stop after installing throttle actuator. Adjusting the full-load stop is described in the section "Basic throttle adjustment".

Installation:

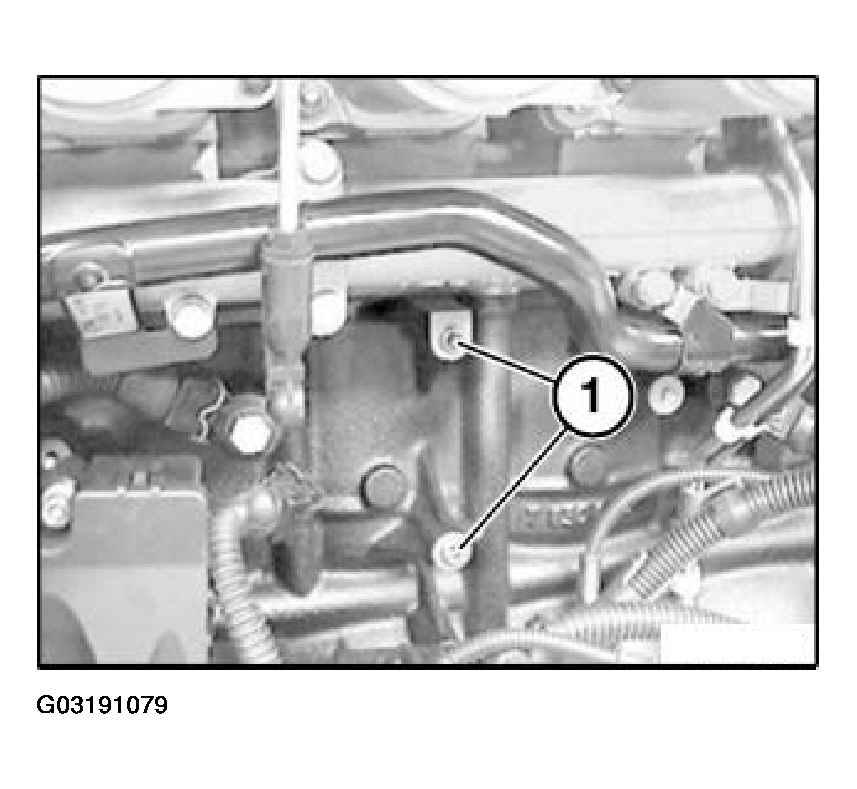

Check adapter sleeves (1) for damage and correct installation position.

Fig 8: Checking Adapter Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.
