00 00 250 BMW engine oil service incl. supplementary service (S54): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Tightening torque, 11 42 2AZ. Refer to 11 42 OIL FILTER AND PIPES .

Replace sealing ring in oil-filter cover and sealing ring on bolt.

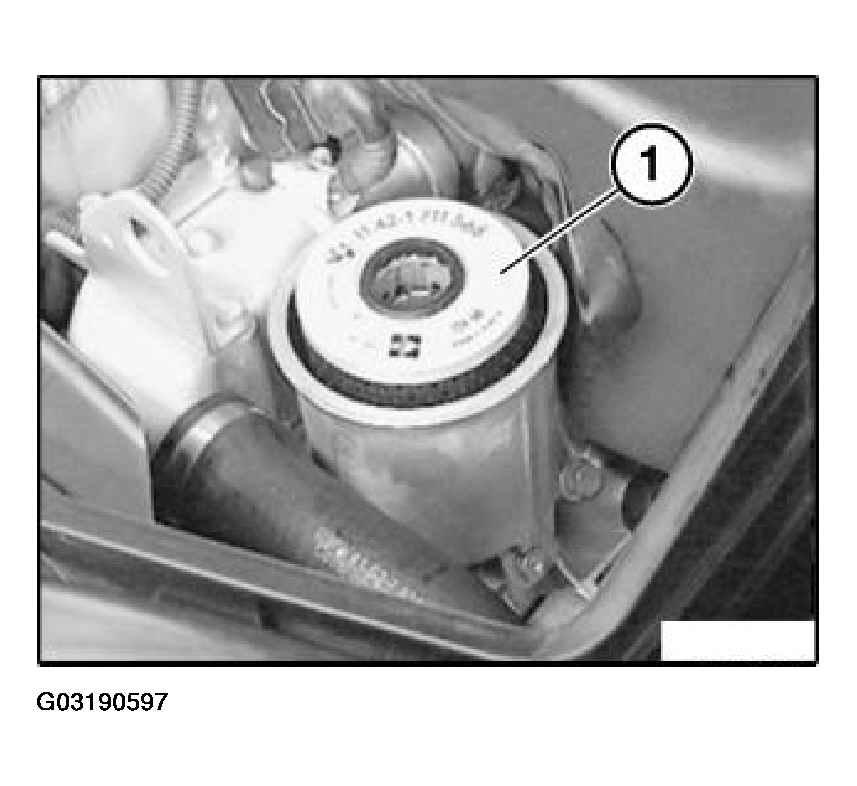

Fig 1: Identifying Sealing Ring In Oil-Filter Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replace oil filter element (1).

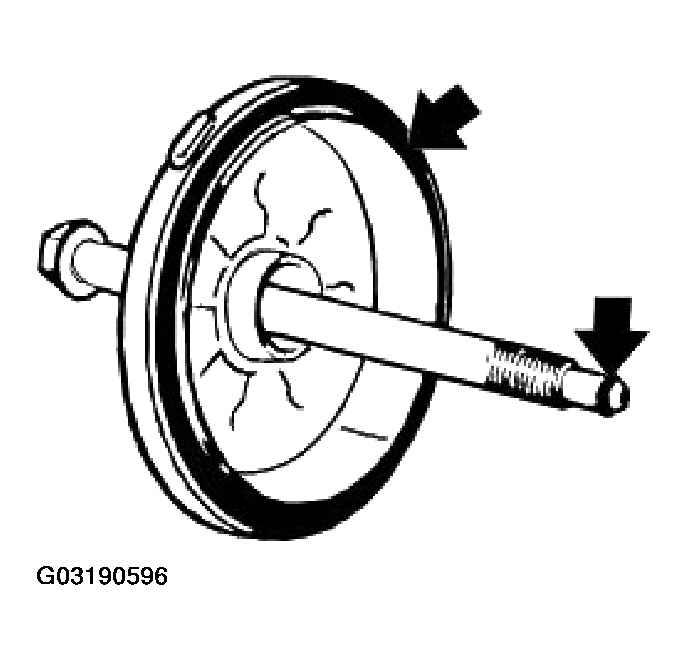

Fig 2: Identifying Oil Filter Element

Courtesy of BMW OF NORTH AMERICA, INC.

Drain or draw off engine oil.

If engine oil is drained:

E46 only

Lever out cover (1) on side with a screwdriver.

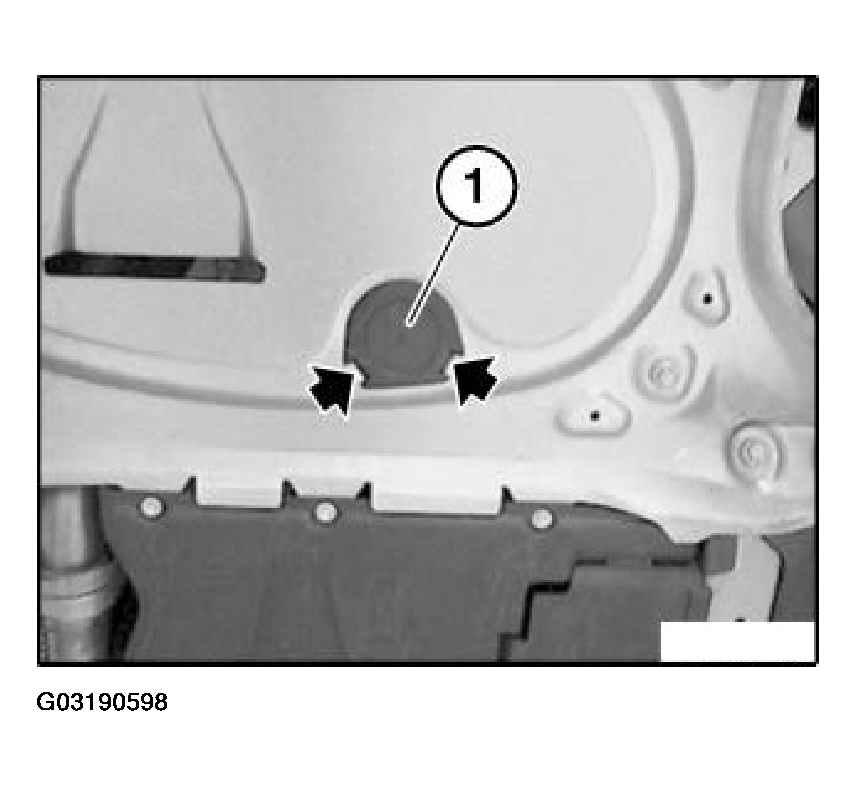

Fig 3: Identifying Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Open oil drain plug and drain off engine oil.

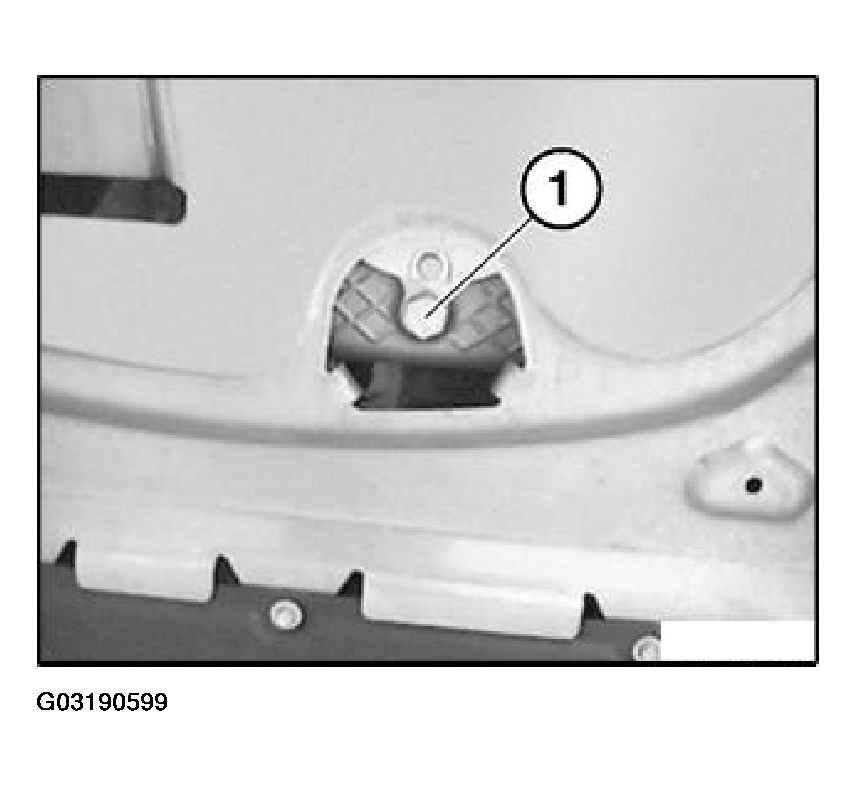

Fig 4: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring.

Tightening torque, 11 13 1AZ. Refer to 11 13 OIL PAN .

Complete vehicle and set in horizontal position.

Top up engine oil.

Start engine and run at idle until oil indicator lamp goes out.

Switch off engine, wait approx. 5 minutes and then check engine oil level.

Top up engine oil if necessary.
