Replacing Radial Seal For Output Flange (S5D 280Z/S5D 320Z, 4WD)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2005 BMW 330xi, 2005 BMW 325xi, 2004 BMW 330xi, 2004 BMW 325xi, and 2003 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: After completion of work, check transmission oil level. See CHECKING FLUID LEVEL . Use only approved transmission fluid. See RECOMMENDED FLUID . Failure to comply with this instruction will result in serious damage to the transmission.

Unflange propeller shaft from transmission and tie up to one side. See REMOVING AND INSTALLING PROPELLER SHAFT (CARDAN UNIVERSAL JOINT) COMPLETELY .

S5D 320Z transmission in E46/16: support transmission with Special Tools (00 2 030) and (23 0 140). See Fig 1 .

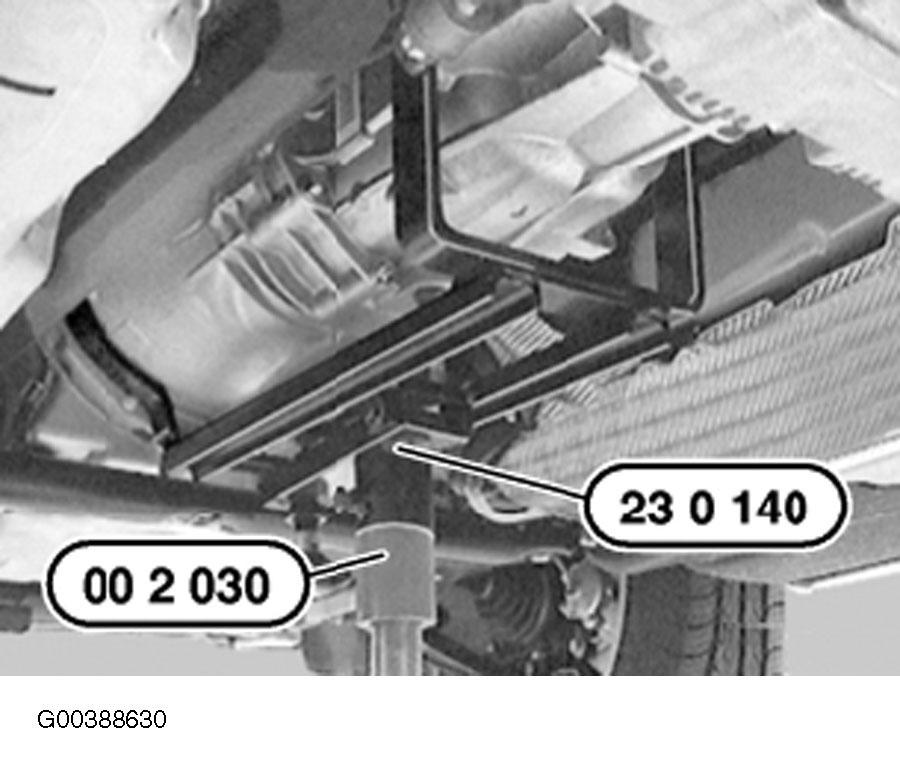

Fig 1: Supporting Transmission (E46/16)

G00388630

Courtesy of BMW OF NORTH AMERICA, INC.

Remove transfer case. See REMOVING AND INSTALLING TRANSFER CASE .

Fit Special Tool (23 0 250) on output flange (1). See Fig 2 .

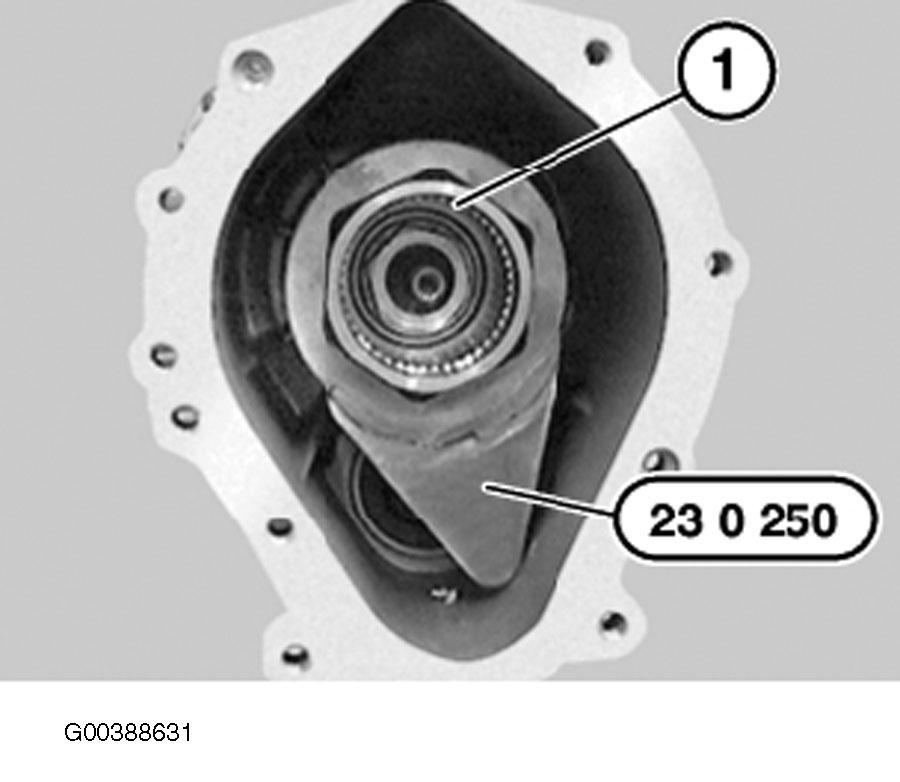

Fig 2: Fitting Special Tool On Output Flange

G00388631

Courtesy of BMW OF NORTH AMERICA, INC.

Release collar nut with Special Tool (23 2 320). See Fig 3 . Upon installation, insert collar nut with Loctite 243. Tighten to specification. See TORQUE SPECIFICATIONS .

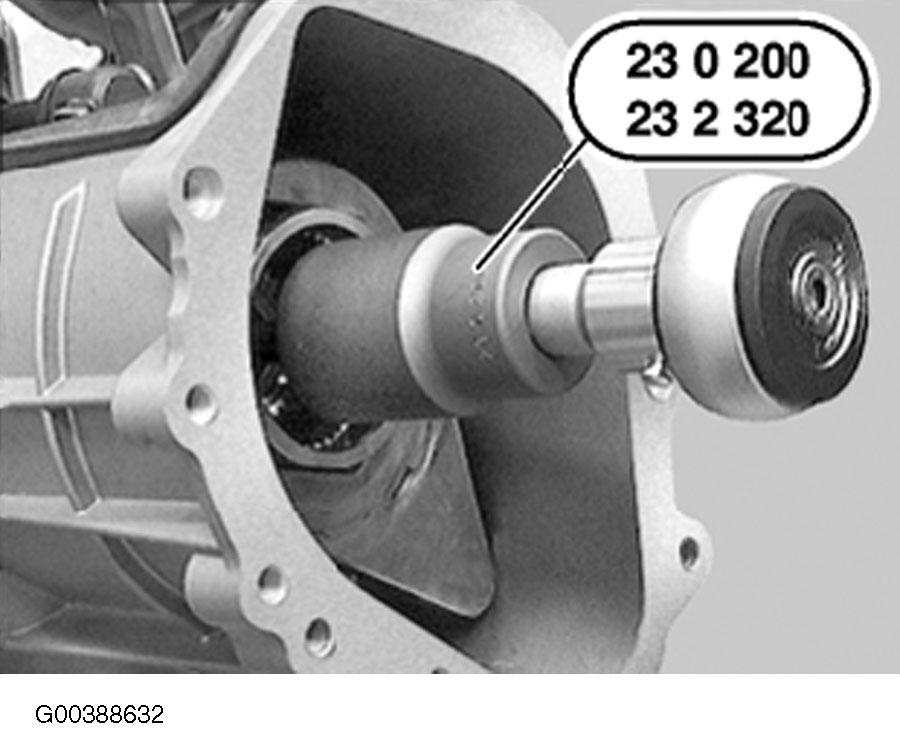

Fig 3: Releasing Collar Nut

G00388632

Courtesy of BMW OF NORTH AMERICA, INC.

Detach output flange (1) with three-claw extractor tool (2) from output shaft. See Fig 4 . Upon installation, heat output flange (1) to approx. 80°C and push onto output shaft.

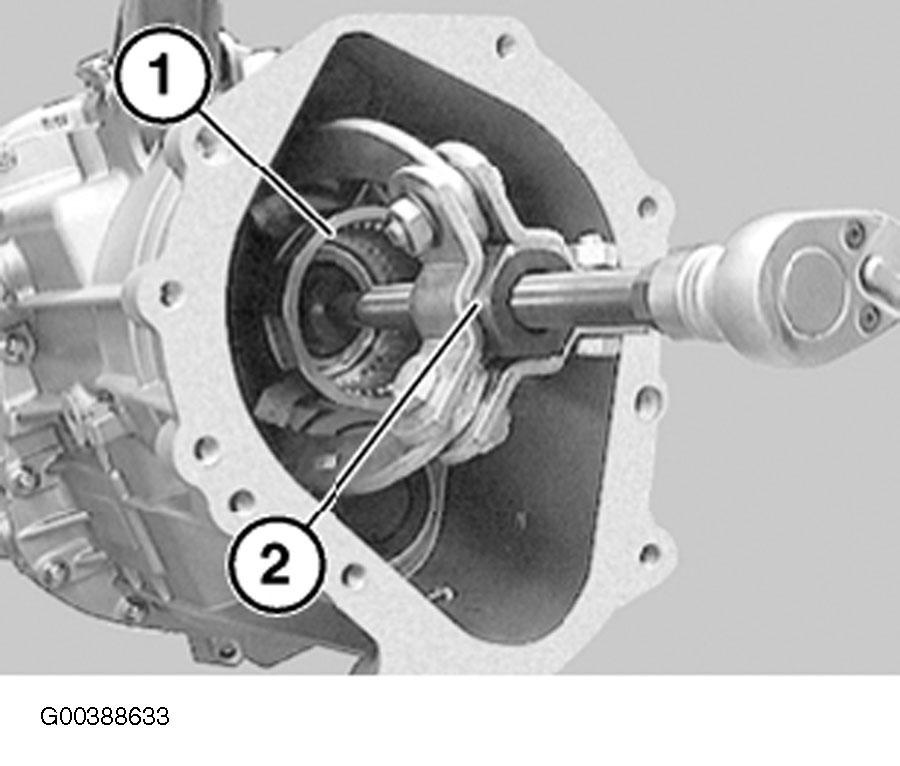

Fig 4: Detaching Output Flange

G00388633

Courtesy of BMW OF NORTH AMERICA, INC.

Remove radial seal (1) with Special Tool (00 5 010). See Fig 5 .

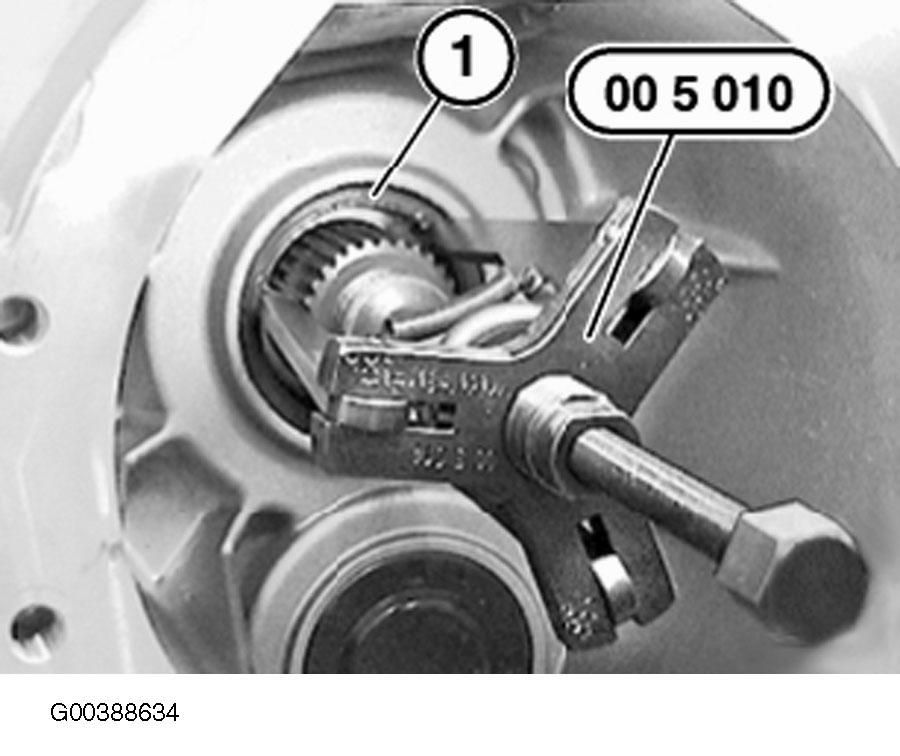

Fig 5: Removing Radial Seal

G00388634

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: coat sealing lips of new radial seal (1) with transmission oil. See Fig 6 . Drive in radial seal (1) with Special Tool (23 0 190) and plastic hammer until flush.

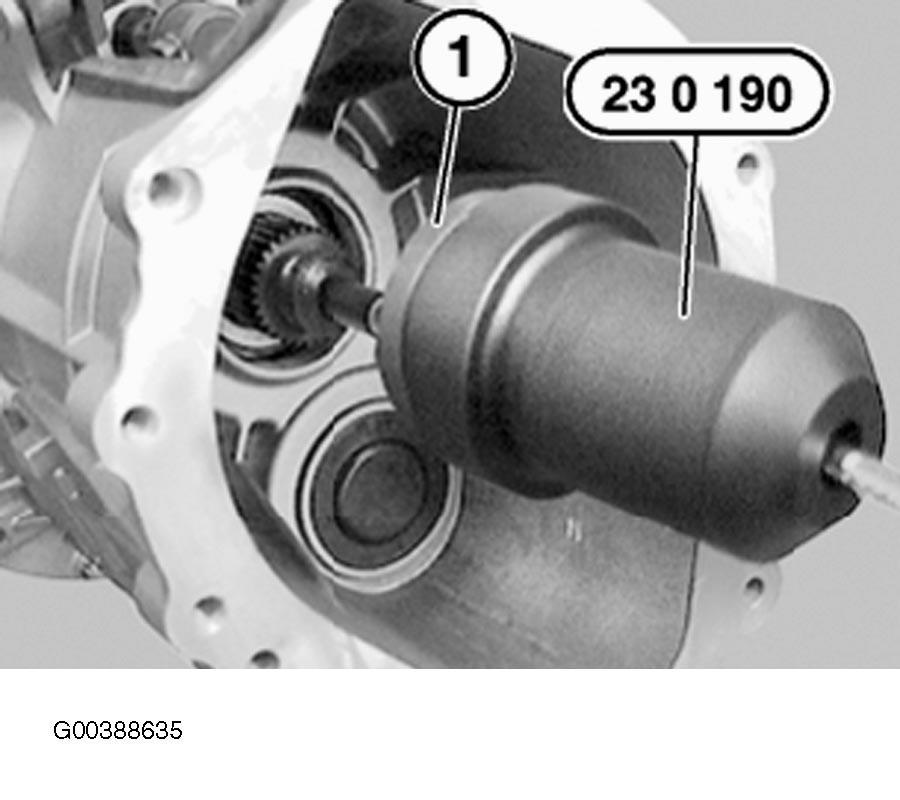

Fig 6: Installing Radial Seal
