Replacing Radial Seal For Selector Shaft

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330i, 2005 BMW 330Ci, and 2005 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in text refer to numbers in figures.

CAUTION: After completion of work, check transmission fluid level. See CHECKING FLUID LEVEL . Use only approved transmission fluid. See RECOMMENDED FLUID . Failure to comply with this instruction will result in serious damage to the transmission.

Shift transmission into 2nd gear. Unflange propeller shaft from transmission and tie back to one side. See REMOVING AND INSTALLING PROPELLER SHAFT (CARDAN UNIVERSAL JOINT) COMPLETELY .

Lever retaining ring (1) out of groove with a small screwdriver. See Fig 1 . Push retaining ring (1) towards rear. Drive out straight pin (2).

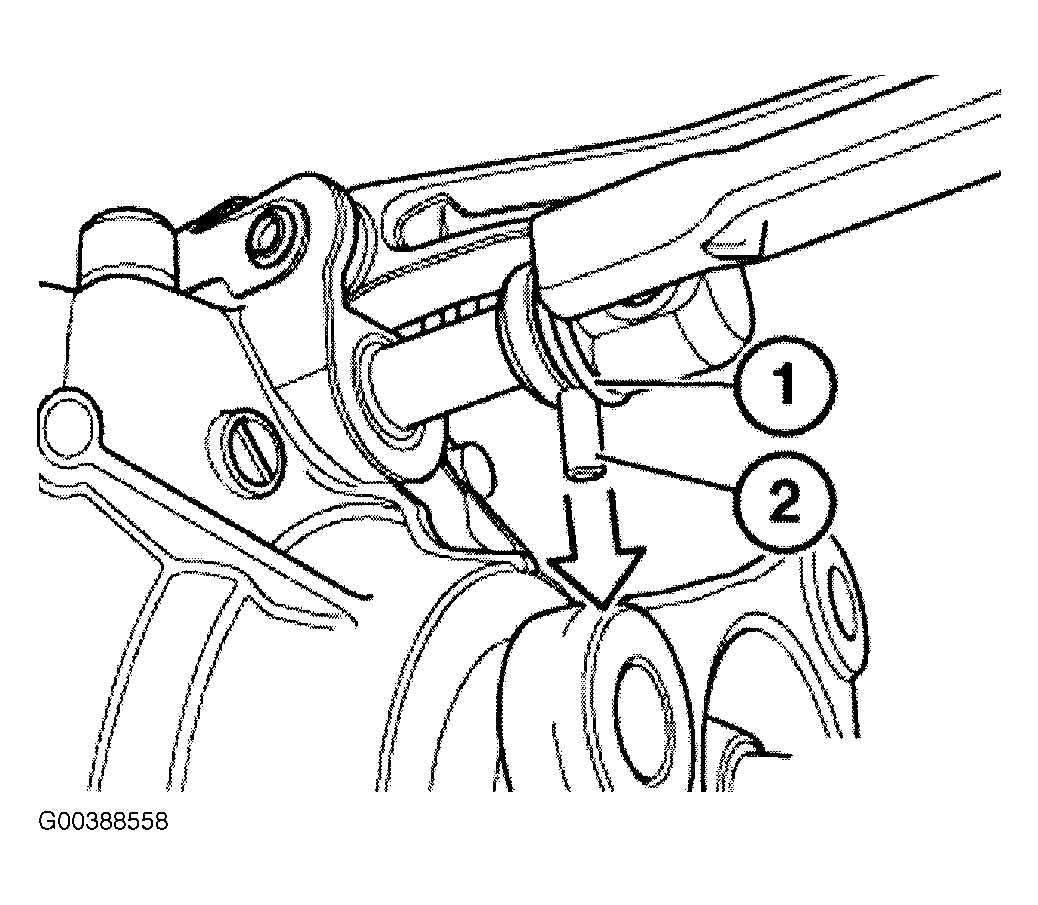

Fig 1: Removing Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in Special Tool (23 0 210) until it is firmly connected to radial seal (1). See Fig 2 . Pull out radial seal with Special Tool (23 0 210).

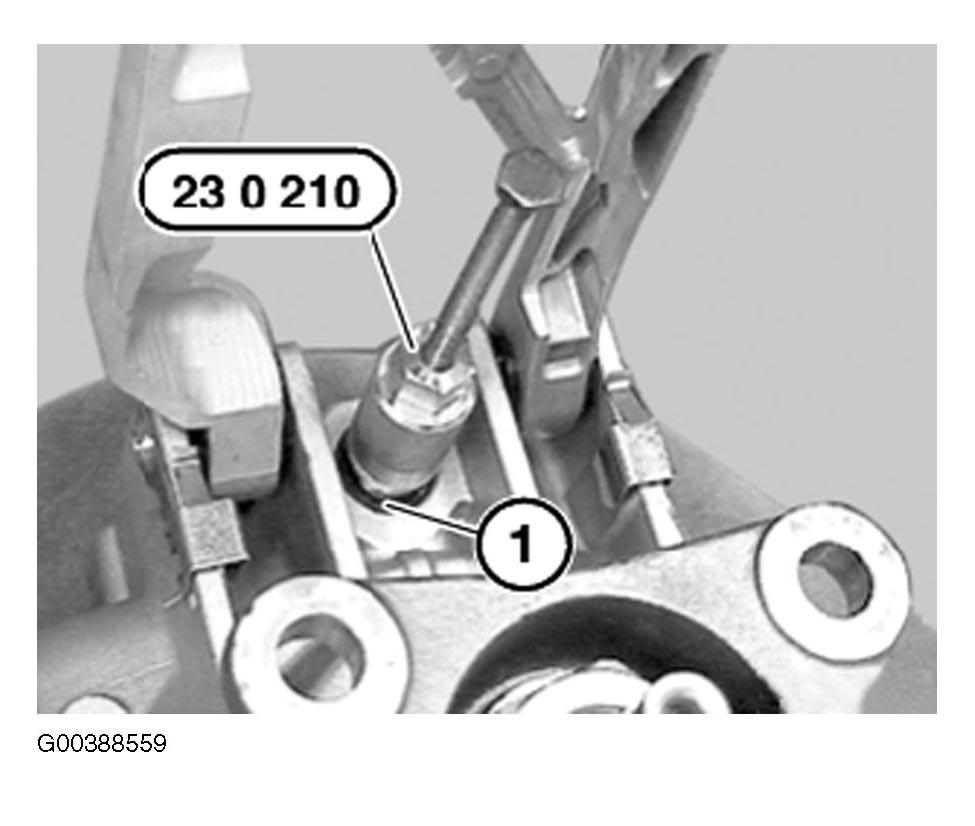

Fig 2: Pulling Out Radial Seal For Selector Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing lips of radial seal and selector shaft with gear oil. Drive in radial seal with Special Tool (23 0 220). See Fig 3 .

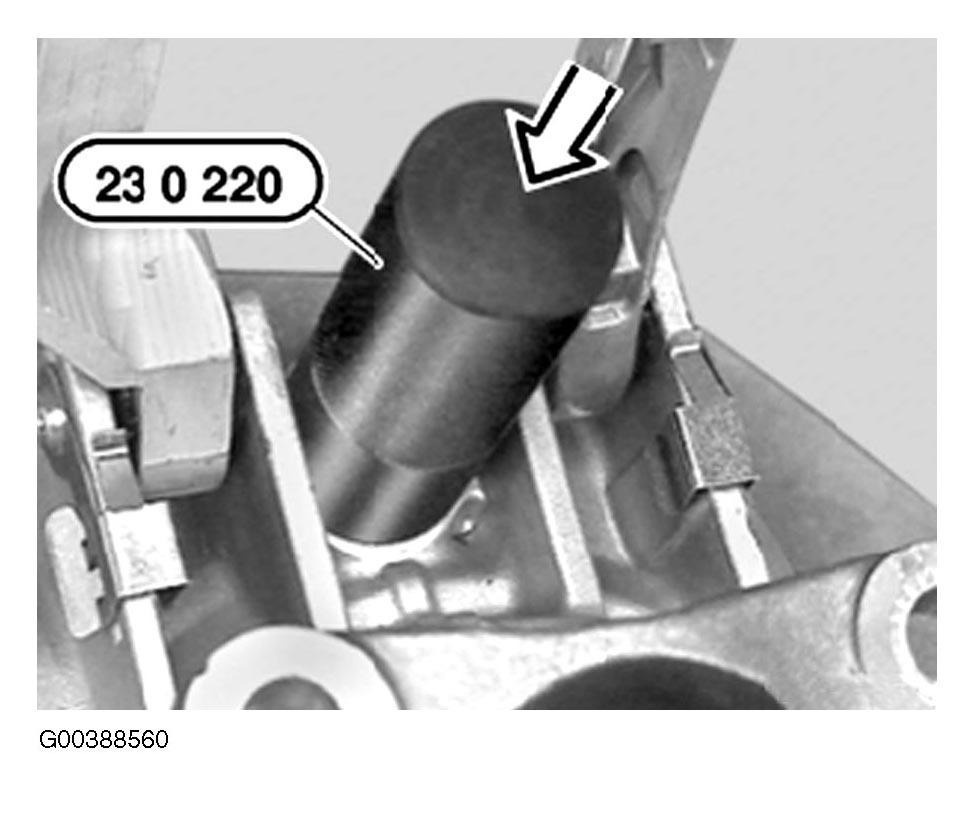

Fig 3: Driving In Radial Seal For Selector Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
