Removing Hydraulic Pump Relay (SMG)

WARNING: This page does not describe the selected car, but rather 22 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330i, 2005 BMW 330Ci, and 2005 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in text refer to numbers in figures.

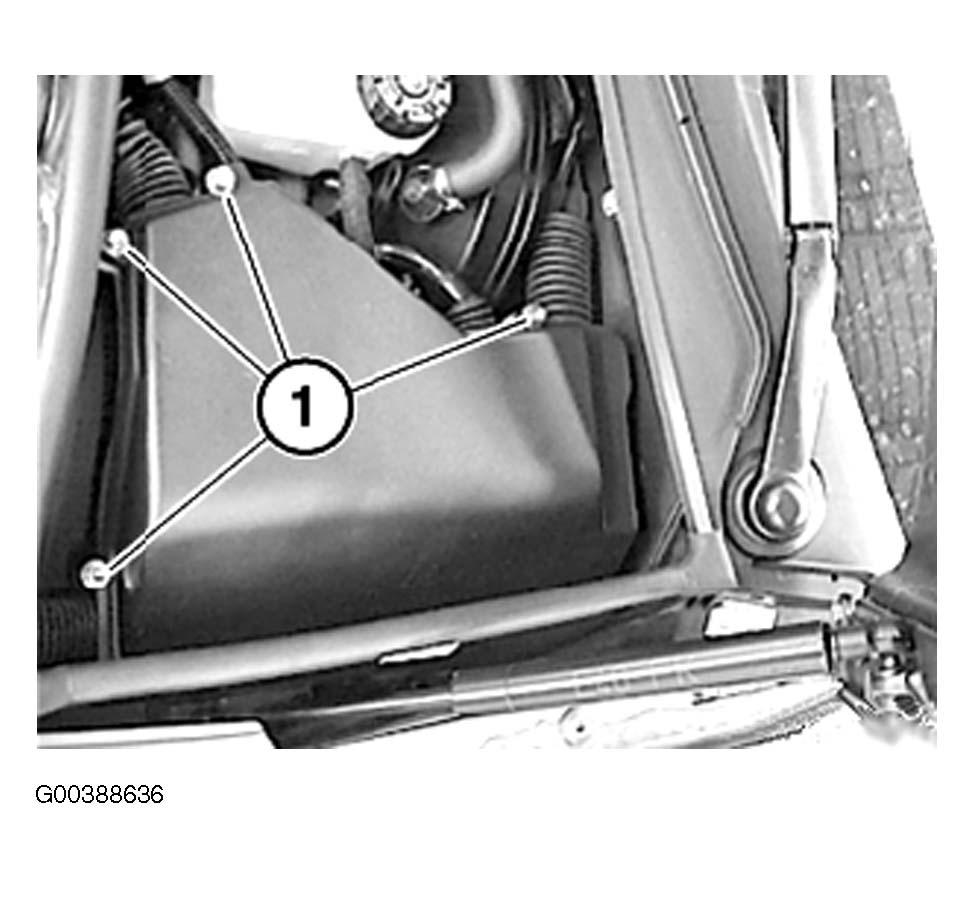

Release screws (1). See Fig 1 . Remove electronics box cover.

Fig 1: Removing Electronics Box Cover

Courtesy of BMW OF NORTH AMERICA, INC.

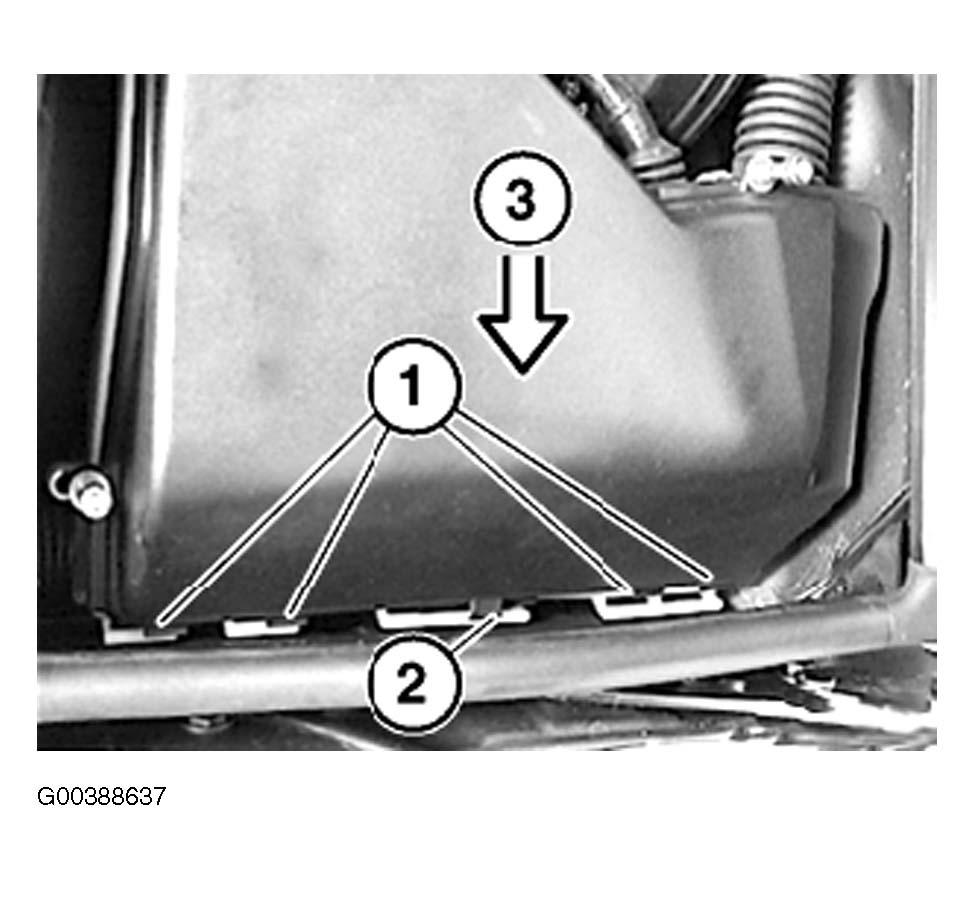

Installation: correctly install wiring harness with grommet in electronics box cover (watertightness). Engage electronics box cover (3) in hinges on underside of box. See Fig 2 . Then correctly install upper stop (2) above hinges on underside of electronics box.

Fig 2: Installing Electronics Box Cover

Courtesy of BMW OF NORTH AMERICA, INC.

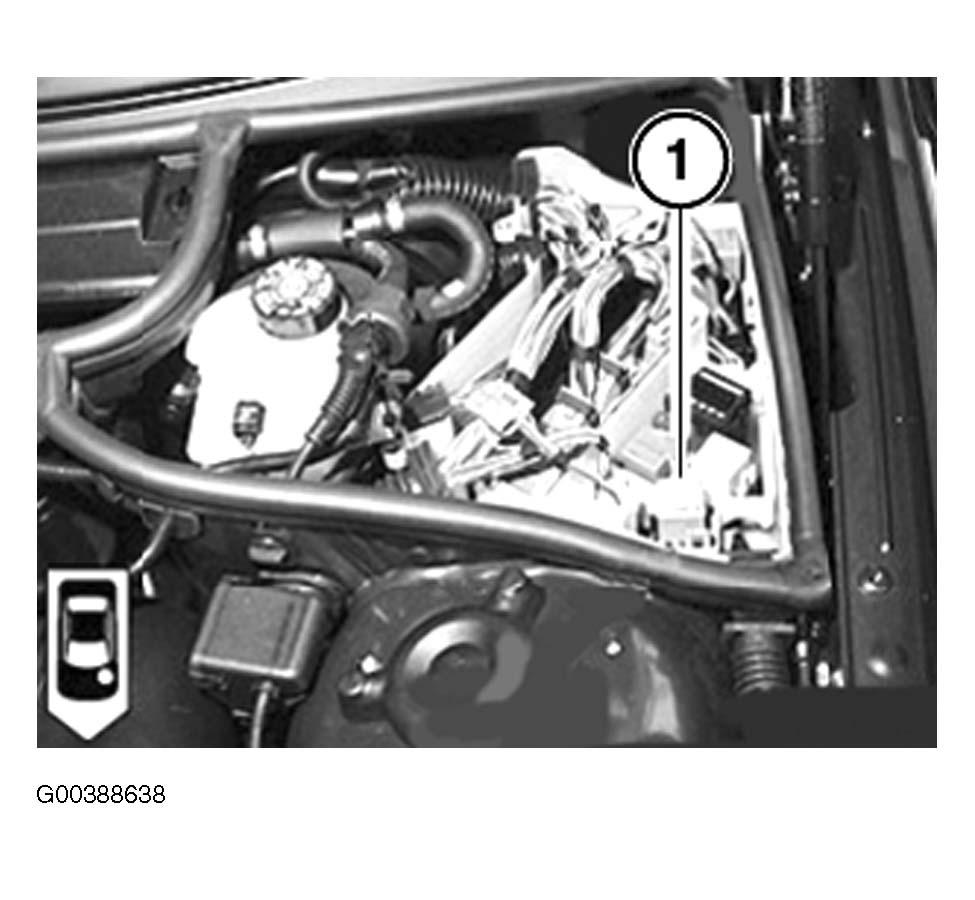

Remove relay (1). See Fig 3 .

Fig 3: Removing Hydraulic Pump Relay

Courtesy of BMW OF NORTH AMERICA, INC.
