Replacing Wiring Harness In Automatic Transmission (A5S 325Z)
WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers in text refer to numbers in figures.
NOTE:
After completing work, top up ATF level. Check/top up fluid level in automatic transmission. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (A5S 325Z)
.
Remove and install transmission oil sump. See REMOVING AND INSTALLING/SEALING OR REPLACING TRANSMISSION OIL SUMP (A5S 325Z) .
Remove and install transmission oil screen. See REMOVING AND INSTALLING/REPLACING TRANSMISSION OIL SCREEN (A5S 325Z) .
Remove and install shift unit. See REMOVING AND INSTALLING/REPLACING SHIFT UNIT (A5S 325Z) .

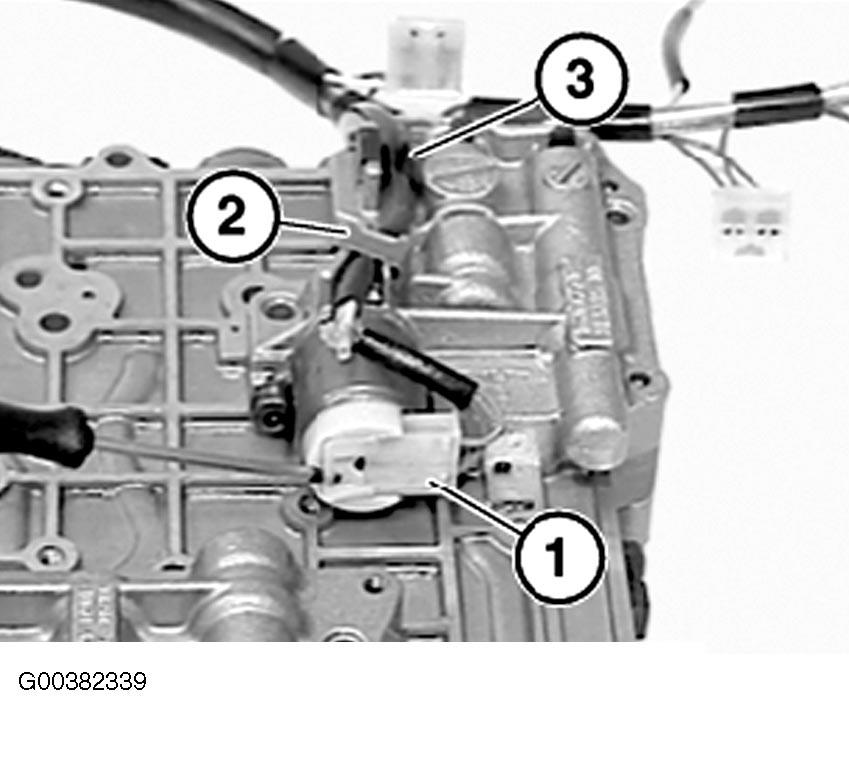

Disconnect plug (1) from solenoid valve. See Fig 1 . Detach plug (2) from pulse generator (3).

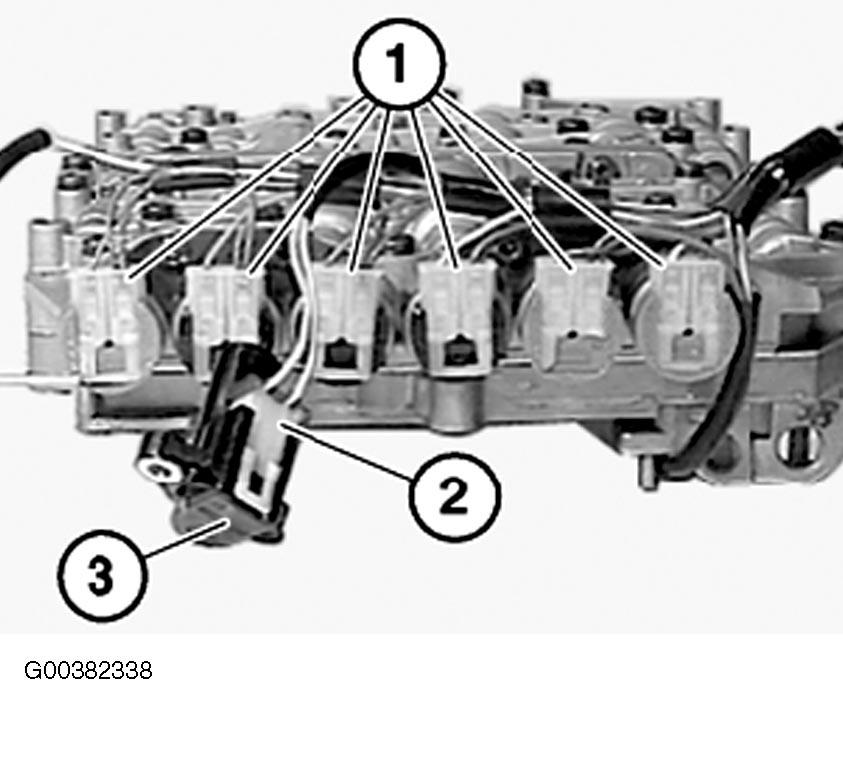

Remove connector (1). See Fig 2 . Remove retaining clip (2). Remove wiring harness from cable guide (3).
