Replacing Solenoid Valve Or Pressure Regulator (A5S 325Z)

WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in text refer to numbers in figures.

NOTE: After completing work, top up ATF level. Check/top up fluid level in automatic transmission. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (A5S 325Z) .

Remove and install transmission oil sump. See REMOVING AND INSTALLING/SEALING OR REPLACING TRANSMISSION OIL SUMP (A5S 325Z) .

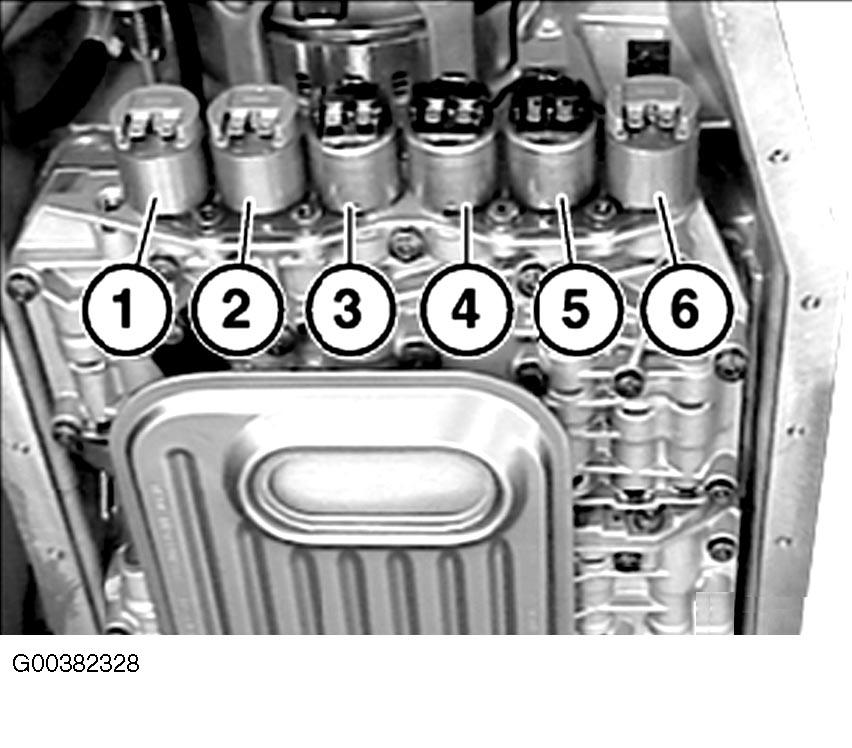

To locate solenoid valve and pressure regulator components, see Fig 1 .

Fig 1: Locating Solenoid Valve & Pressure Regulator Valve Components

Courtesy of BMW OF NORTH AMERICA, INC.

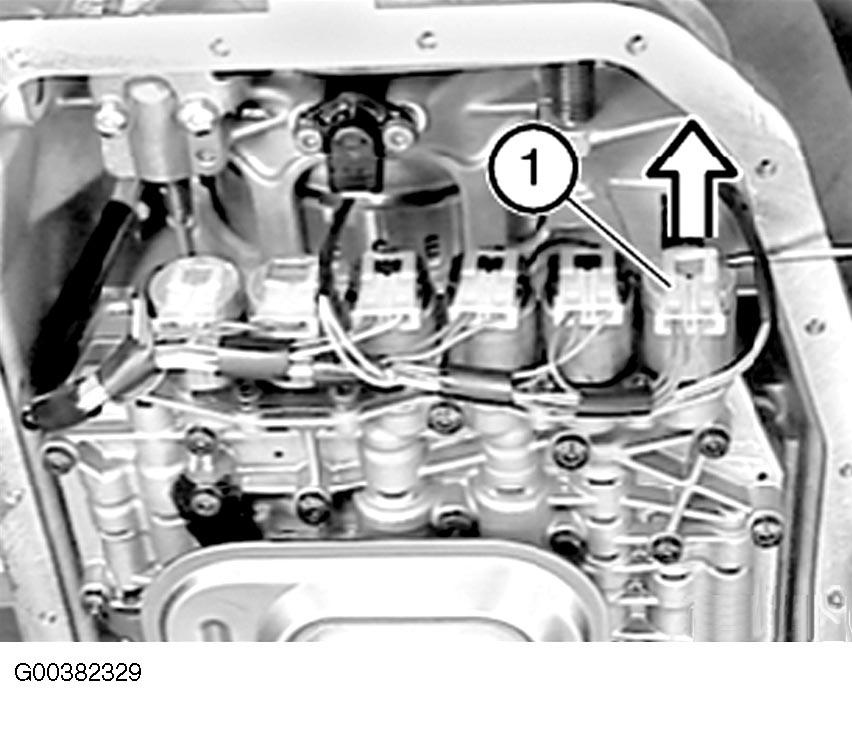

Detach plug (1) from solenoid valve or pressure regulator. See Fig 2 .

Fig 2: Detaching Plug

Courtesy of BMW OF NORTH AMERICA, INC.

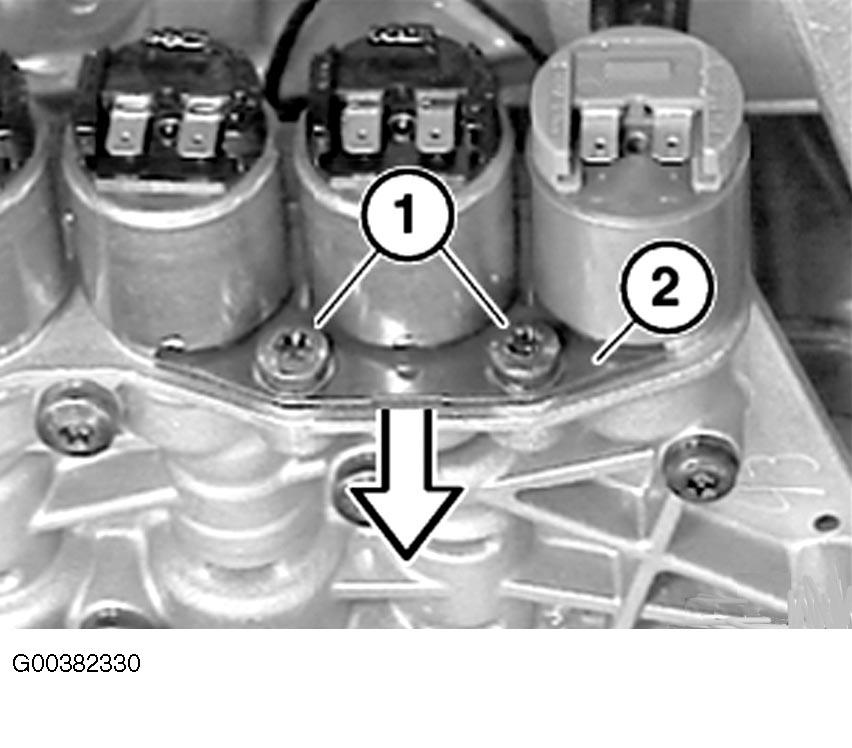

Release screws (1). See Fig 3 . Remove retaining plate (2). Withdraw solenoid valve (1, 2 or 3) or pressure regulator (2, 3 or 4). Upon installation: coat new solenoid valve with ATF.

Fig 3: Removing Solenoid Valve Or Pressure Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

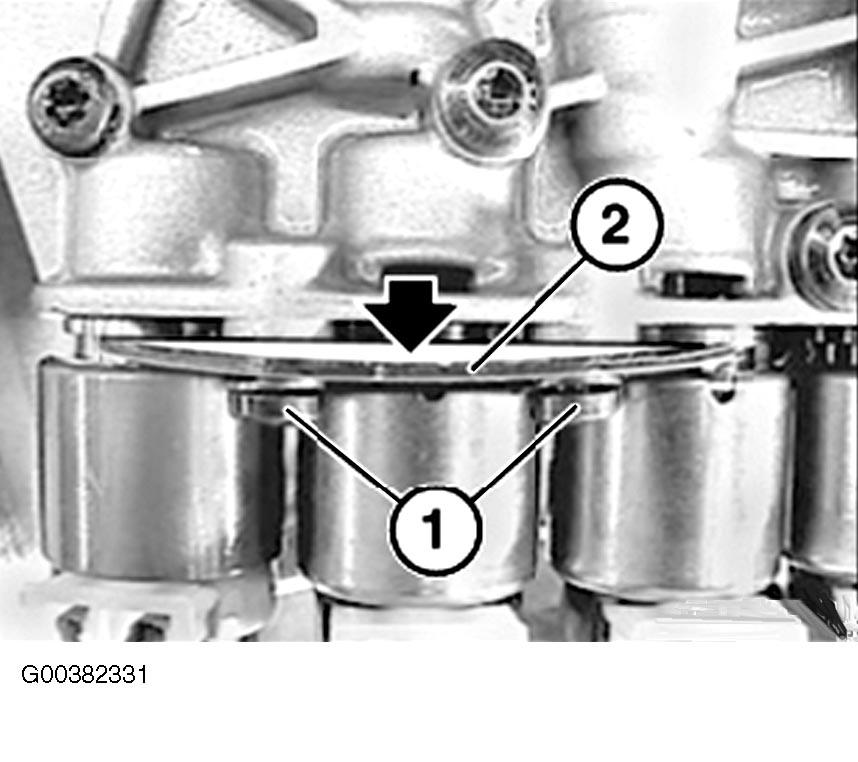

Installation: note installation position of retaining plate (2). See Fig 4 . Curved surface of retaining plate (2) must point to solenoid valve or pressure regulator. Install screws (1). Tighten to specification. See TORQUE SPECIFICATIONS .

Fig 4: Installing Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.
