Replacing Solenoid Valve 1, 2 Or 3 (A5S 360R / 390R, A4S 200R)
WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
After completing work, top up ATF level. Check/top up fluid level in automatic transmission. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (A5S 360R / 390R, A4S 200R / 310R)
.
Remove transmission oil sump. See REMOVING AND INSTALLING/SEALING OR REPLACING TRANSMISSION FLUID SUMP (A5S 360R / 390R, A4S 200R) .
CAUTION:
Note position of wiring harness.

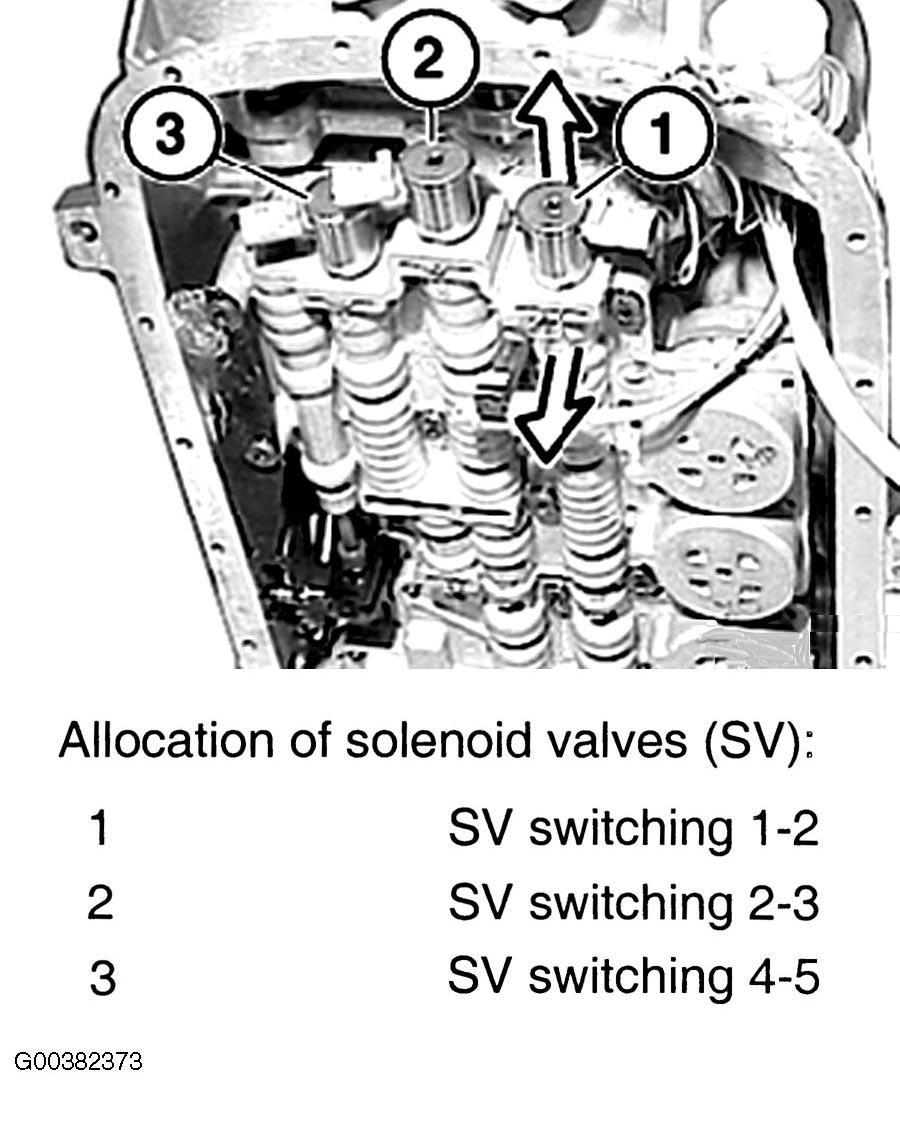

Disconnect plug from solenoid valve. Remove retaining spring and withdraw solenoid valve (1, 2 or 3). See Fig 1 . Upon installation: coat new solenoid valve with automatic transmission fluid.
