Replacing Radial Seal On Manual Shift Valve Shaft (A5S 325Z)

WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in text refer to numbers in figures.

NOTE: After completing work, top up ATF level. Check/top up fluid level in automatic transmission. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (A5S 325Z) .

Remove position switch from the manual shift valve shaft. See REMOVING AND INSTALLING/REPLACING POSITION SWITCH (A5S 325Z) .

Remove radial seal with Special Tool (24 5 260) from transmission housing. See Fig 1 .

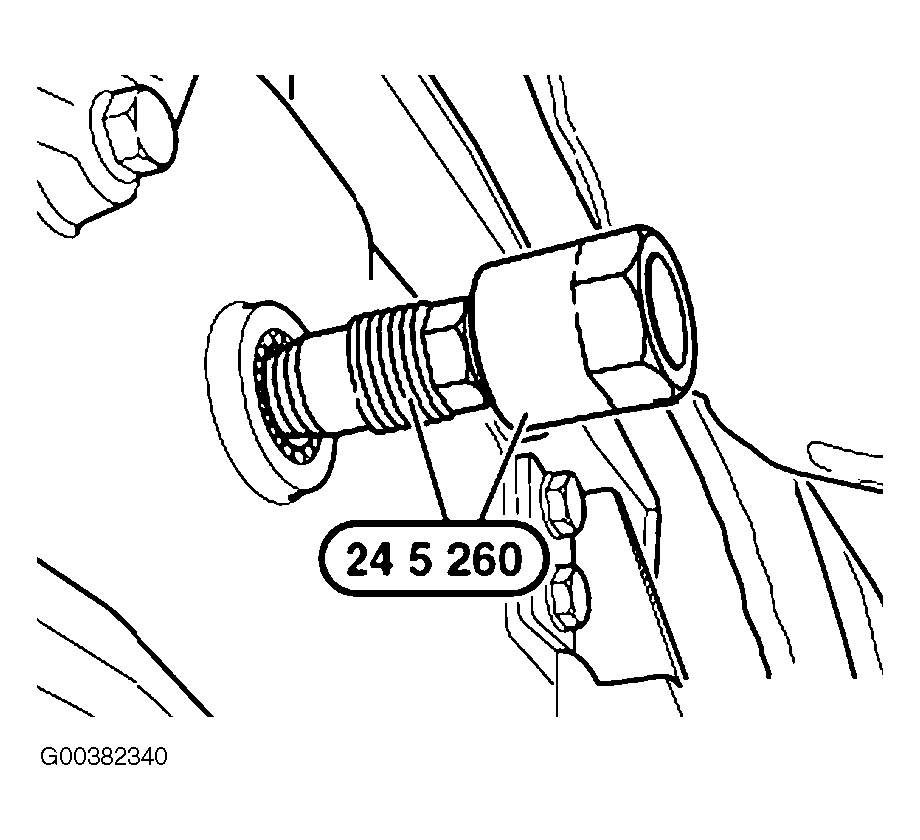

Fig 1: Removing Radial Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: fit Special Tool (24 5 490) to the manual shift valve shaft. See Fig 2 . Coat sealing lip of new radial seal (1) with transmission oil. Slide radial seal onto manual shift valve shaft.

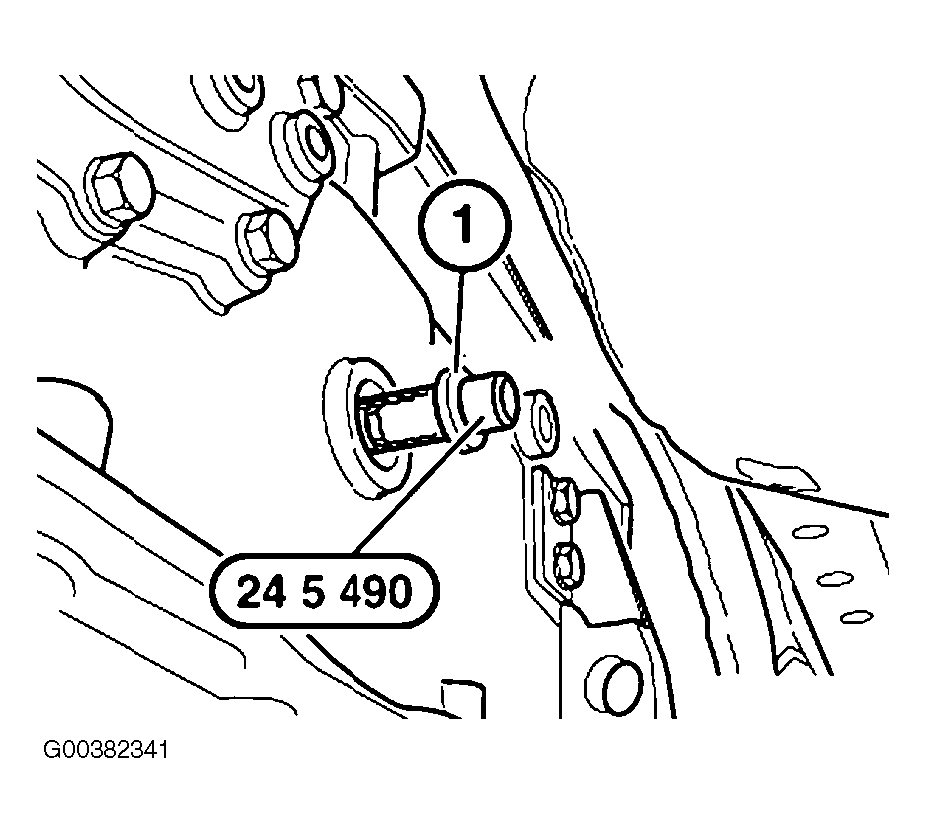

Fig 2: Sliding Radial Seal Onto Manual Shift Valve Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: press radial seal into transmission case with Special Tool (24 5 250). See Fig 3 . Pull Special Tool (24 5 490) off manual shift valve shaft.

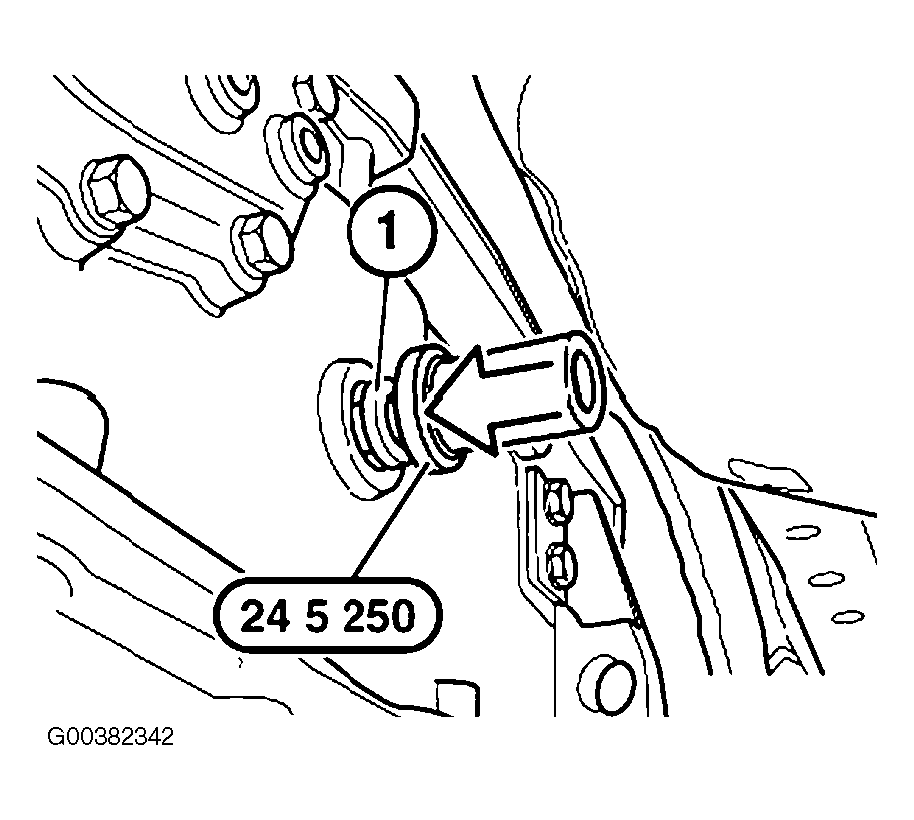

Fig 3: Pressing Radial Seal Into Transmission Case

Courtesy of BMW OF NORTH AMERICA, INC.
