Replacing Pulse Generator (Turbine Speed) (A5S 360R / 390R, A4S 200R)
WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers in text refer to numbers in figures.
NOTE:
After completing work, top up ATF level. Check/top up fluid level in automatic transmission. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (A5S 360R / 390R, A4S 200R / 310R)
.
Remove transmission oil sump. See REMOVING AND INSTALLING/SEALING OR REPLACING TRANSMISSION FLUID SUMP (A5S 360R / 390R, A4S 200R) .

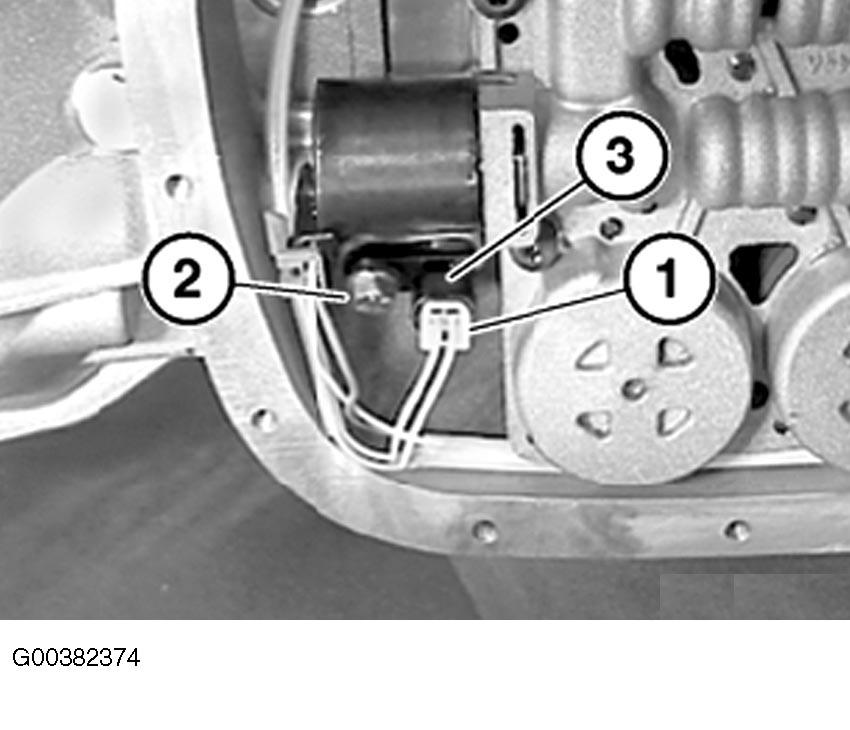

Pull off plug (1). See Fig 1 . Release screw (2). Withdraw pulse generator (3). Upon installation, tighten screw to specification. See TORQUE SPECIFICATIONS . Read out fault memory of EGS control unit. Check stored fault messages, eliminate faults and then clear fault memory.
