Replacing Pressure Regulator For Converter Lockup Clutch (As5 360R / 390R, A4S 200R)
WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
After completing work, top up ATF level. Check/top up fluid level in automatic transmission. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (A5S 360R / 390R, A4S 200R / 310R)
.
Remove shift unit. See REMOVING AND INSTALLING/REPLACING SELECTOR UNIT (A5S 360R / 390R, A4S 200R) .

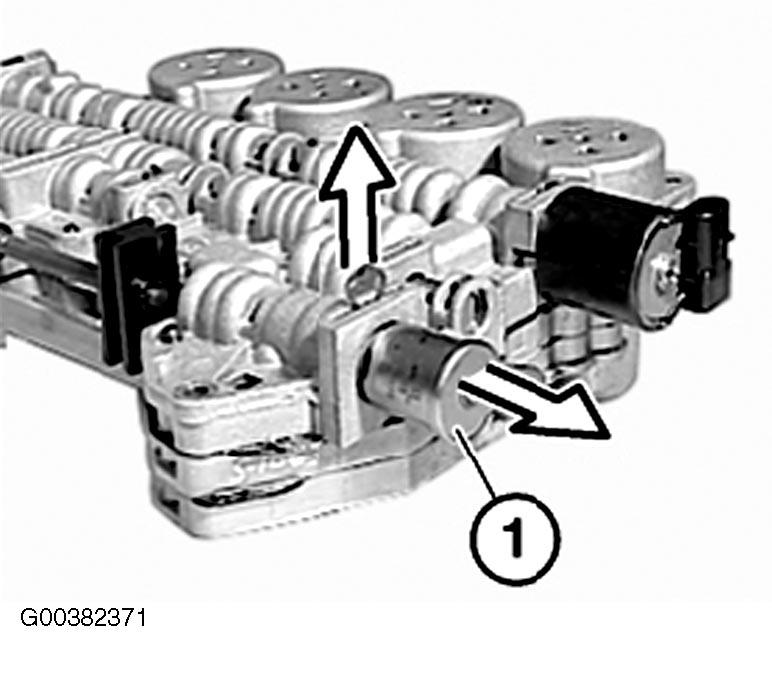

Remove retaining spring. Pull out pressure regulator (1) for converter lockup clutch. See Fig 1 .
Installation: coat new pressure regulator (1) for converter lockup clutch with automatic transmission fluid.
