Removing And Installing/Replacing Transmission Screen (A5S 360R / 390R, A4S 200R)

WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in text refer to numbers in figures.

NOTE: After completing work, top up ATF level. Check/top up fluid level in automatic transmission. See CHECKING/TOPPING UP FLUID LEVEL IN AUTOMATIC TRANSMISSION (A5S 360R / 390R, A4S 200R / 310R) .

Remove transmission oil sump. See REMOVING AND INSTALLING/SEALING OR REPLACING TRANSMISSION FLUID SUMP (A5S 360R / 390R, A4S 200R) .

Pull off transmission fluid screen (1) towards bottom and remove. See Fig 1 .

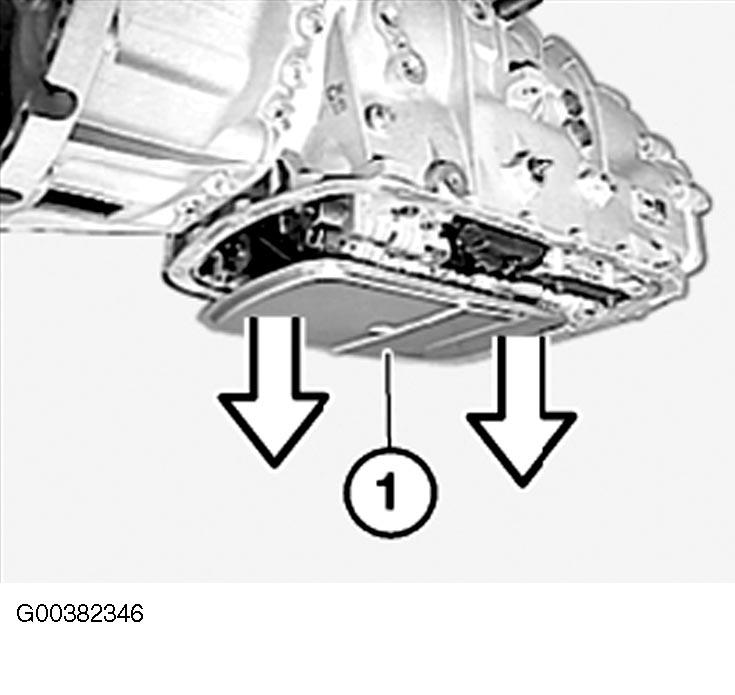

Fig 1: Pulling Off Transmission Fluid Screen

Courtesy of BMW OF NORTH AMERICA, INC.

If the sealing ring (1) has remained in the pump housing, it must be removed and the transmission fluid screen replaced. See Fig 2 .

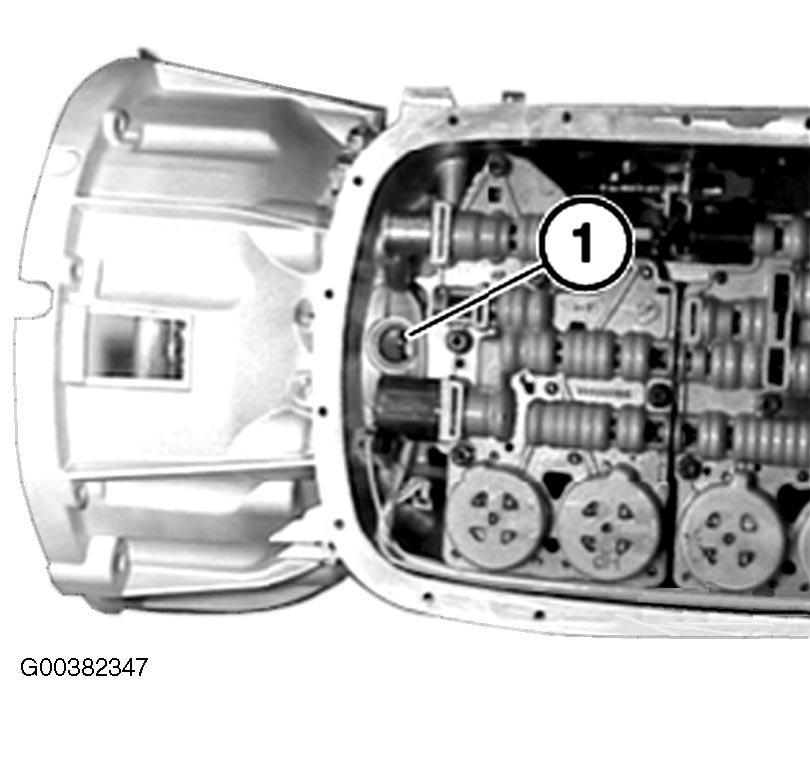

Fig 2: Locating Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: different transmission fluid screens are used in petrol/gasoline and diesel engines. Therefore check specified measurement A prior to installation. See Fig 3 . Measurement A: Gasoline engine:

M52TU = 38-40 mm
M43TU = 29-31 mm

Diesel engine: M57 = 29-31 mm. Position (1): Two gaskets are fitted.

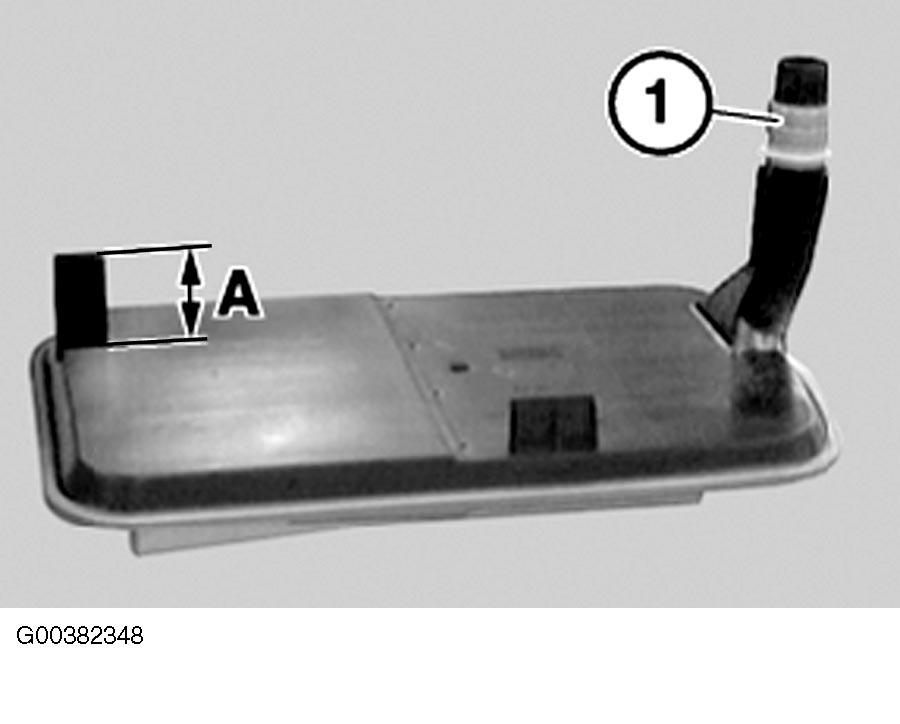

Fig 3: Identifying Transmission Screen

Courtesy of BMW OF NORTH AMERICA, INC.
