Installation (M3)

WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not reuse old wheel bearing. Note installation direction of wheel bearing. The Red sealing ring must face outwards. Otherwise, ABS function is not assured by impulse sensor integrated in bearing.

To install, reverse removal procedure. Draw in new wheel bearing with Special Tool (33 3 261/ 264/ 265). See Fig 1.
Replace stretched or damaged circlip. Ensure correct seating.
Pull in drive flange using Special Tool (33 3 261/ 262/ 263). See Fig 2.
Install brake disc.
Install axle shaft.

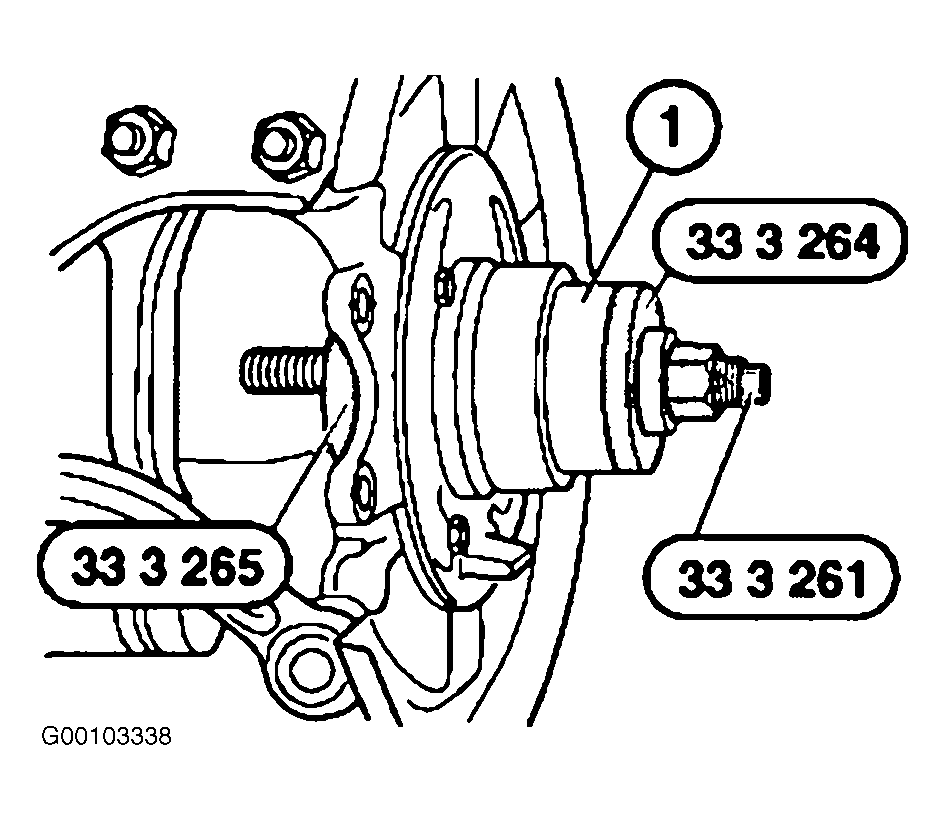

Fig 1: Pulling In New Wheel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Pulling In Drive Flange

Courtesy of BMW OF NORTH AMERICA, INC.
