Installation (Except M3)
WARNING: This page does not describe the selected car, but rather 43 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

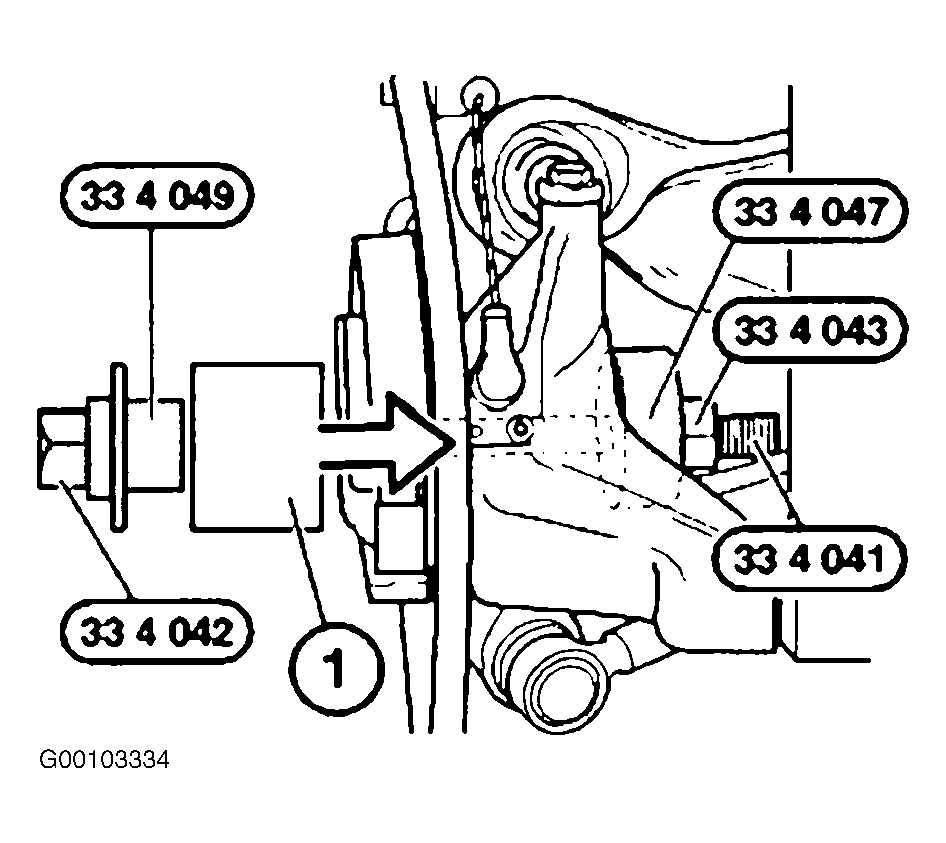

- Installation is reverse of removal. Draw in new wheel bearing with Special Tool (33 4 041/ 042/ 043/ 047). For 42 mm inner bearing race, use Special Tool (33 4 049) and for 39 mm inner bearing race, use (33 4 046). See Fig 1.
- Replace stretched or damaged circlip. Ensure correct seating.

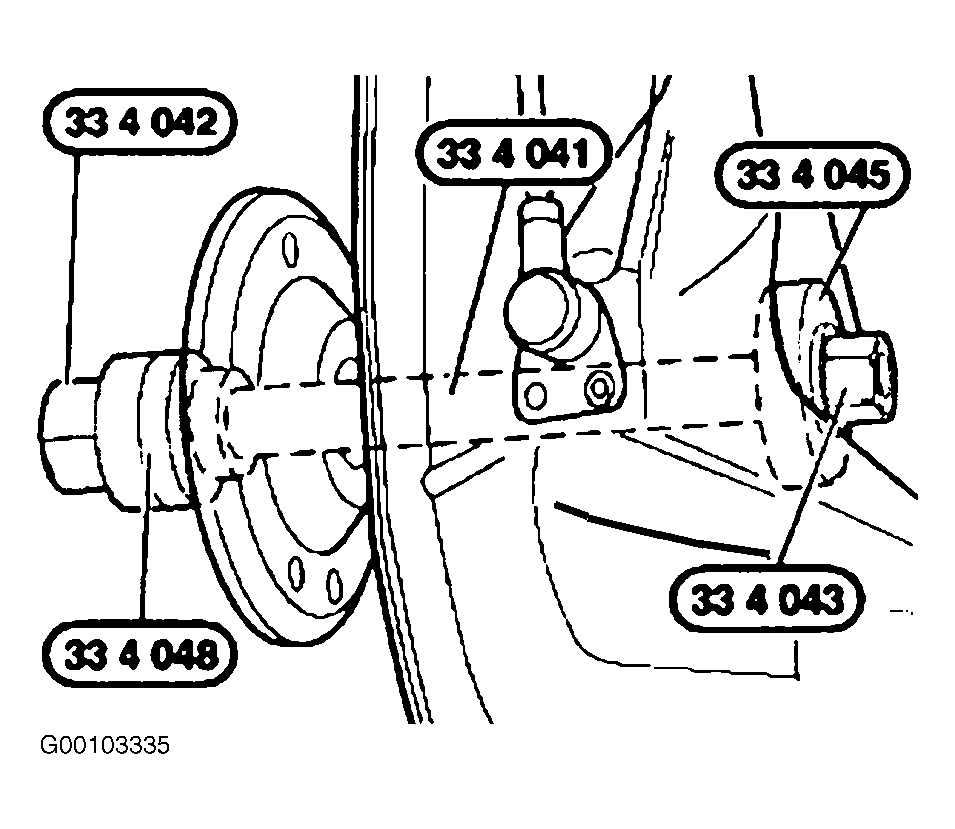

- Pull in drive flange using Special Tool (33 4 041/ 042/ 043/ 045/ 048). See Fig 2.
- Install brake disc.
- Install axle shaft.
