Pinion Shaft & Oil Seal: Installation

WARNING: This page does not describe the selected car, but rather 29 other vehicles, including the 2000 BMW Z8, 2000 BMW Z3, 2000 BMW X5, 2000 BMW M5, and 2000 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Install new shaft seal. Coat sealing lips of pinion shaft seal with differential oil. Install pinion shaft. Tighten collar nut until mark aligns. Install retaining plate.

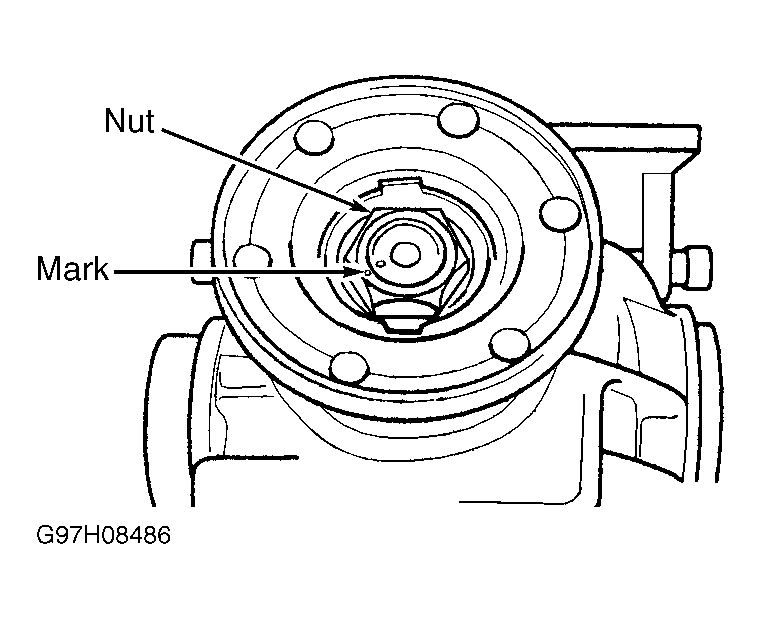

Fig 1: Marking Position Of Collar Nut & Pinion Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
