Mechanical Seat Belt TENSIONERS
WARNING: This page does not describe the selected car, but rather 151 other vehicles, including the 2006 BMW X5, 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, and 2005 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The mechanical seat belt tensioner is a simple method of countering the effects of the occupant moving forward (seat belt stretch) during the sharp deceleration of a collision.

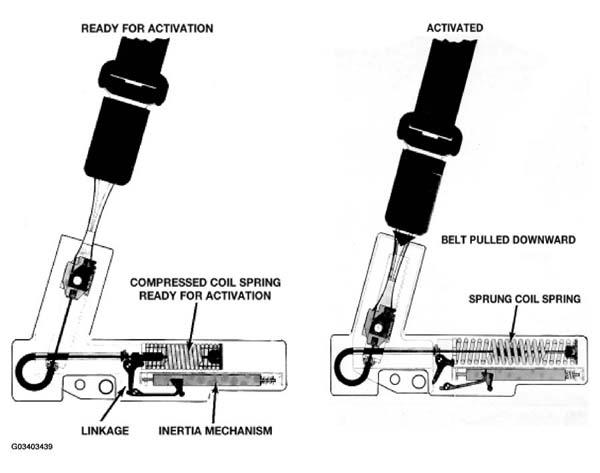

The seat belt tensioner consists of a cable operated seat belt latch, a tension spring and an inertia mechanism.
When the inertia mechanism is triggered during a collision, The linkage releases the tension spring and the seat belt latch is pulled downward to tighten the belt across the occupant's body. This action counters the effects of inertia and the "spooling" of the seat belt itself.
