67 16 011 Removing and installing/replacing left headlight vertical aim adjuster (xenon headlight)

Remove left headlight (xenon headlight). See 63 12 005 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (XENON HEADLIGHT)

Remove lens/reflector for left headlight. See 63 12 037 REMOVING AND INSTALLING/REPLACING LENS COVER FOR LEFT HEADLIGHT (XENON HEADLIGHT)

Remove lamp for xenon light. See 63 99 076 REPLACING LAMP FOR LEFT XENON LIGHT (SALOON/SEDAN, TOURING)

Remove halogen bulb for high-beam headlight. See 63 99 002 REPLACING HALOGEN BULB FOR HIGH-BEAM HEADLIGHT ON LEFT

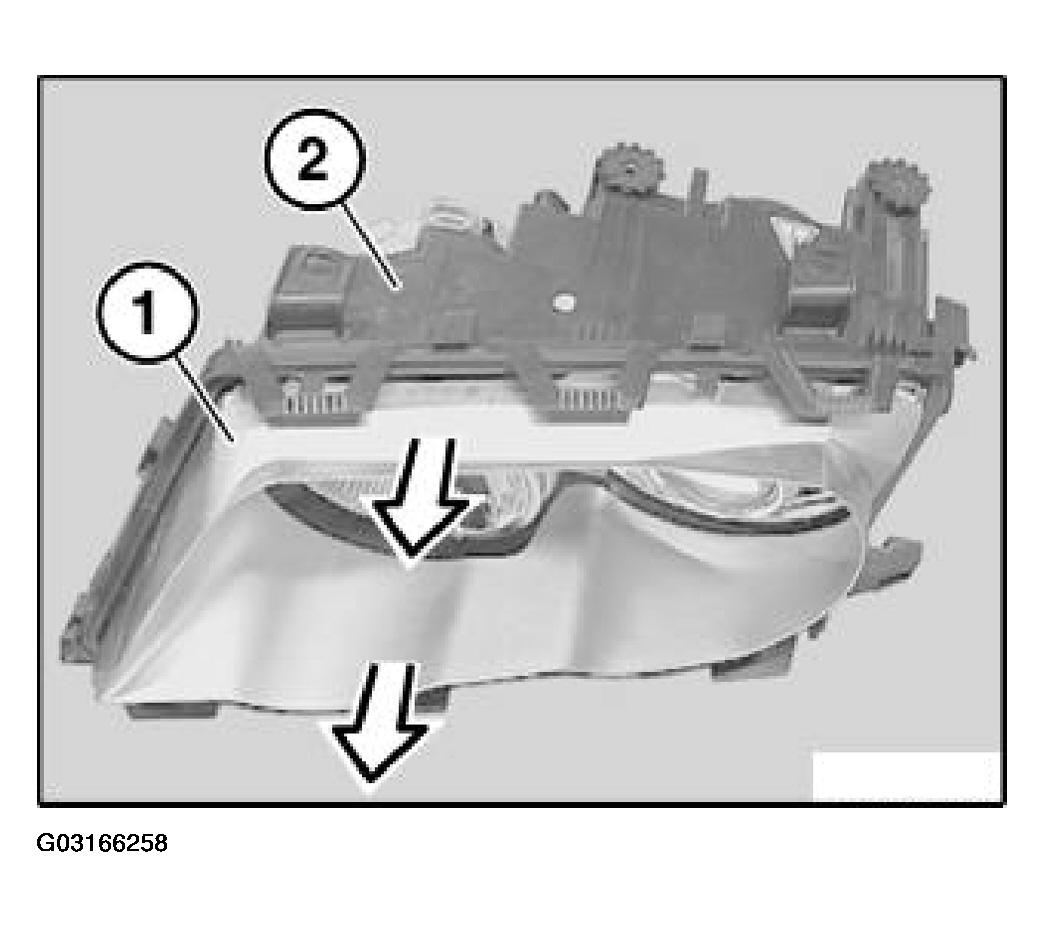

Remove cover frame (1) in direction of arrow from headlight housing (2).

Fig 1: Removing Cover Frame From Headlight Housing

Courtesy of BMW OF NORTH AMERICA, INC.

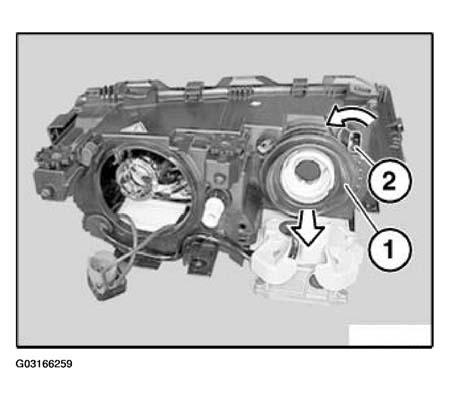

Turn sidelamp bulb holder (2) in direction of arrow and remove.

Remove high beam cover (1) in direction of arrow.

Fig 2: Turning Sidelamp Bulb Holder And Removing High Beam Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure high beam cover is correctly seated.

All Models Except M3:

To install cover for high beam, if necessary release control unit holder for xenon headlight. See 63 12 860 REPLACING CONTROL UNIT FOR LEFT XENON HEADLIGHT (SALOON/SEDAN, TOURING)

Saloon/sedan, Touring From 09/2001 Only:

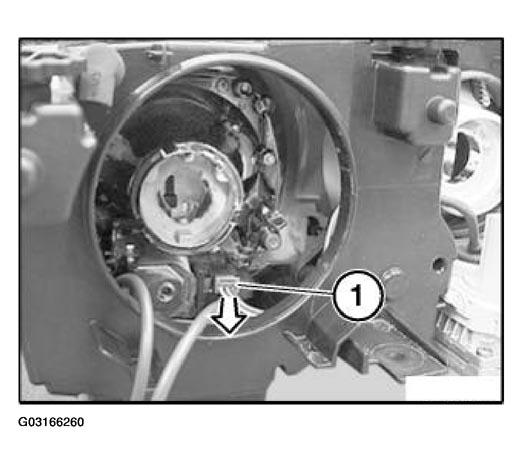

Disconnect plug connection (1).

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

All:

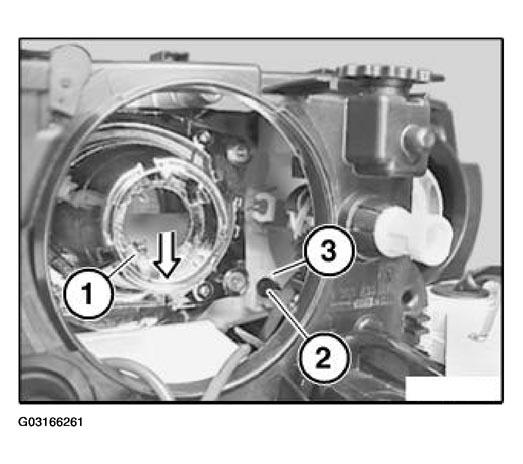

Press headlight insert (1) at an angle towards front/bottom until inner headlight vertical aim adjuster (2) snaps audibly out of its guide (3).

Fig 4: Pressing Headlight Insert

Courtesy of BMW OF NORTH AMERICA, INC.

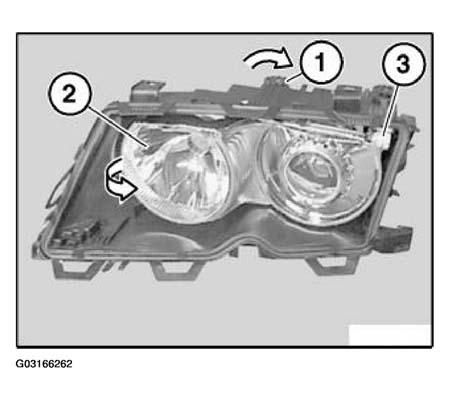

Turn thumbwheel (1) clockwise until headlight insert (2) is free.

Tilt out headlight insert (2) in direction of arrow and feed out of guide (3).

Remove headlight insert (2).

Fig 5: Turning Thumbwheel And Tilting Out Headlight Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure headlight insert is correctly seated in guide (3).

Turn thumbwheel (1) approx. 10 turns counterclockwise.

Then clip headlight insert (2) onto ball socket of inner headlight vertical aim adjuster.

Installation:

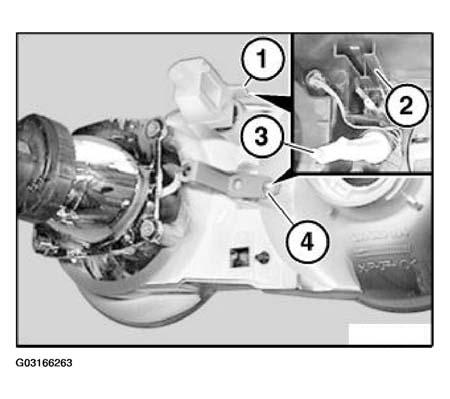

Insert guide (1) on headlight insert into rail (2) of headlight housing.

Fig 6: Inserting Guide On Headlight Insert Into Rail Of Headlight Housing

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, make sure pin (3) of adjusting lever for right/left-hand traffic is correctly seated in bore (4).

Disconnect plug.

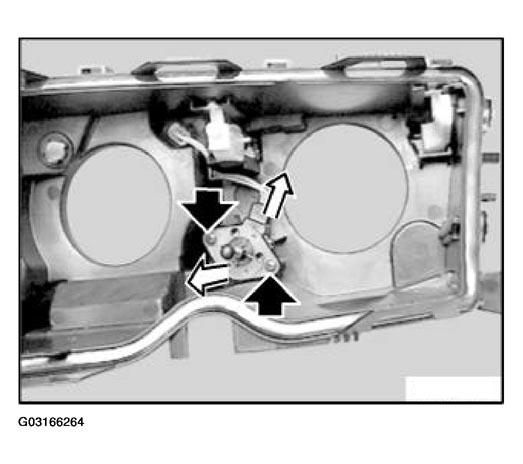

Release screws and remove headlight vertical aim adjuster.

Fig 7: Identifying Headlight Vertical Aim Adjuster Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust headlights. See 63 10 004 ADJUSTING HEADLIGHTS
