67 31 501 Removing and installing/replacing drive for longitudinal seat adjustment (front seat removed)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

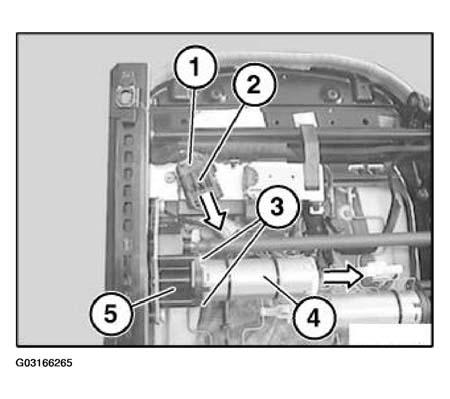

Disconnect plug connection (1).

Unclip plug housing (2) in direction of arrow from retaining fixture underneath.

Fig 1: Unclipping Plug Housing From Retaining Fixture Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure drive for longitudinal seat adjustment (4) against falling out.

Release screws (3) and remove drive for longitudinal seat adjustment (4) in direction of arrow from flange (5).

If necessary, remove inner drive shaft from drive for longitudinal seat adjustment (4).

Installation:

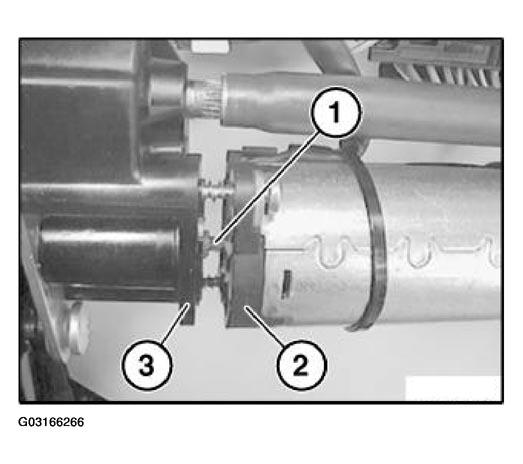

Make sure drive shaft (1) is correctly seated.

Fig 2: Identifying Correctly Seated Drive Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure drive for longitudinal seat adjustment (2) is correctly seated on flange (3).
