65 24 020 Removing and installing or replacing block circuit
WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
Remove panel for rear left roof pillar (C-pillar), refer to 51 43 251 REMOVING AND INSTALLING / REPLACING TRIM PANEL FOR LEFT OR RIGHT REAR ROOF PILLAR (C-PILLAR) .

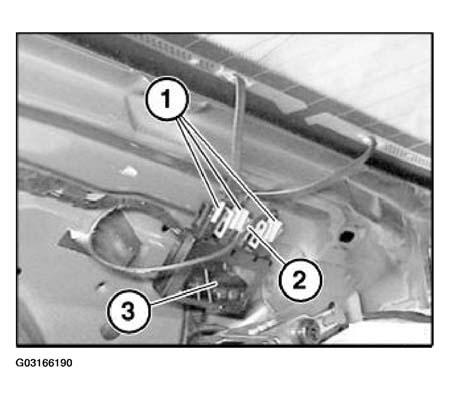

Unfasten plug connection (1). Release screw (2) and remove block circuit (3).
