65 11 055 Removing and installing/replacing radio receiver (radio navigation or on-board monitor)

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove luggage compartment wheel arch trim on left. See 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT TRUNK WHEEL HOUSING TRIM (TOURING)

Unlock plug connections (1) and (2) and disconnect.

Release screw (3).

Feed out radio receiver (4) in direction of arrow and remove.

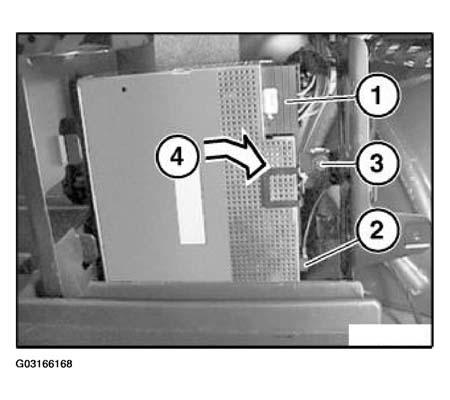

Fig 1: Feeding Out Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Metal tabs (1) of radio receiver (2) must be seated in mountings (3) of holder (4).

Fig 2: Identifying Radio Receiver Metal Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unscrew nut (1).

Remove holder (2) from radio receiver (3).

Fig 3: Removing Holder From Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.
