64 11 839 Replacing actuator drive of footwell flap

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install housing for glovebox and cover on equipment carrier at bottom, refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

Remove and install airbag module on passenger side.

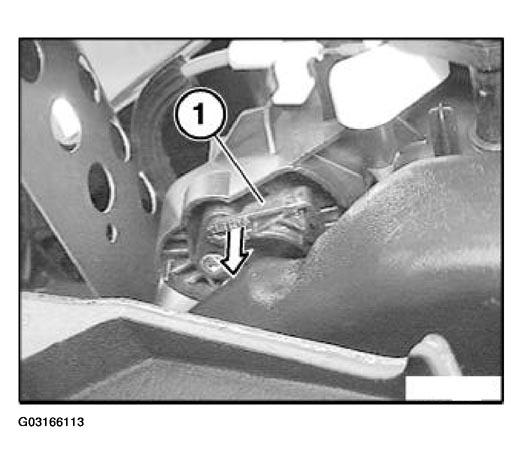

Unhook adjusting lever (1).

Fig 1: Identifying Unhook Adjusting Lever

Courtesy of BMW OF NORTH AMERICA, INC.

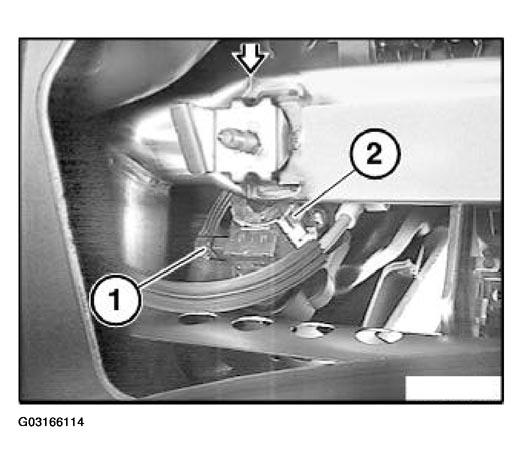

Disconnect plug connection (1). Unlock actuator drive (2) and feed out towards rear.

Fig 2: Disconnect Plug Connection And Removing Actuator Drive Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

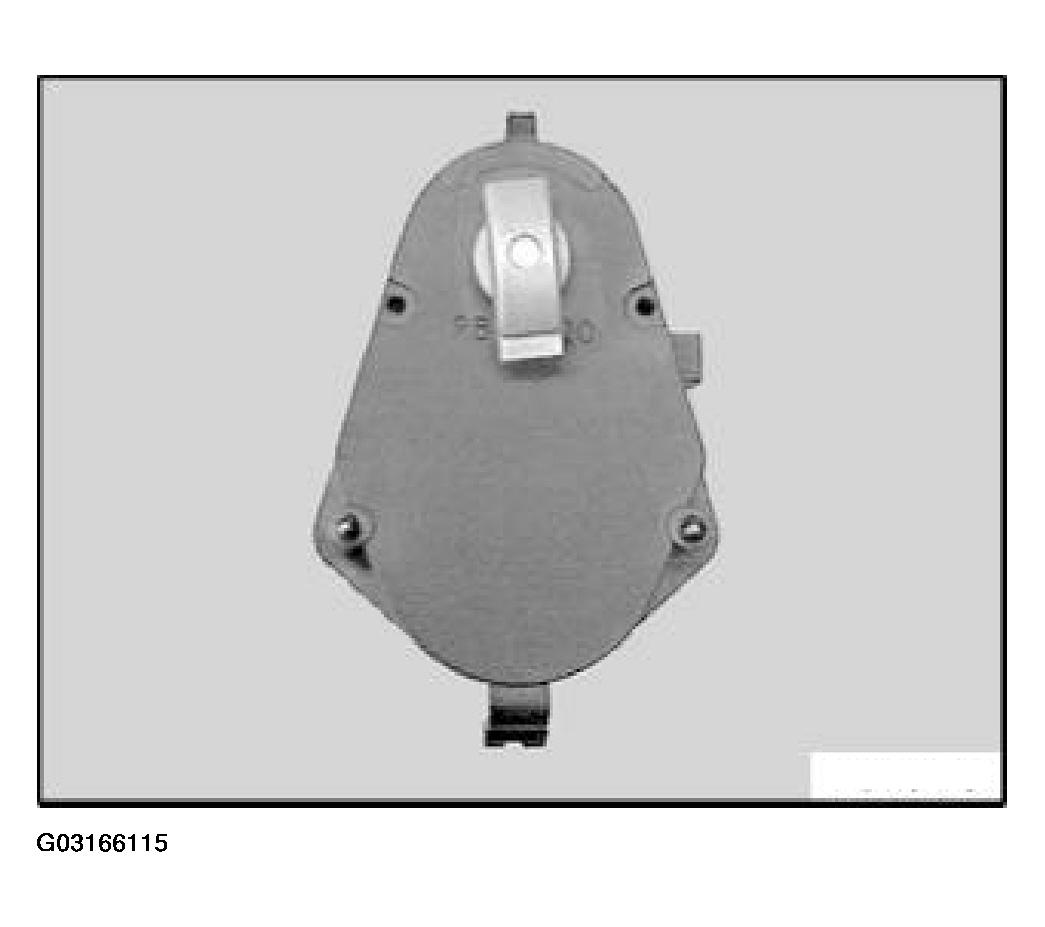

If necessary, align shaft for footwell flap and drive.

Fig 3: Aligning Shaft For Footwell Flap And Drive

Courtesy of BMW OF NORTH AMERICA, INC.
