64 11 750 Removing and installing heating control (heater)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove radio, refer to 65 11 030 REMOVING AND INSTALLING/REPLACING RADIO RECEIVER (BUILT-IN UNIT) or 65 11 040 REMOVING AND INSTALLING/REPLACING RADIO CONTROL PANEL (RADIO NAVIGATION) .

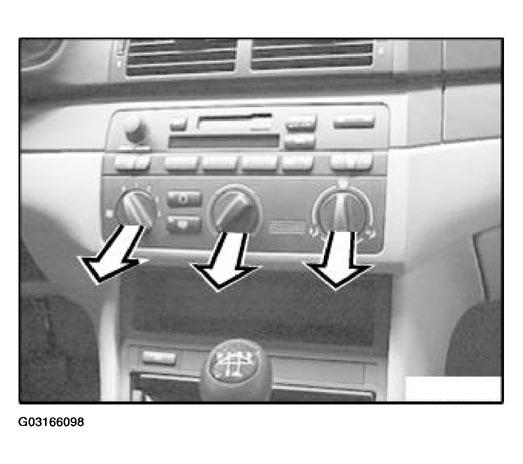

Press down rotary buttons.

Fig 1: Pressing Down Rotary Buttons

G03166098

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove front panel towards rear.

Fig 2: Removing Front Panel Towards Rear

G03166099

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove center fresh air grill.

Unlock retainers (2) and push control panel inwards.

Remove frame (3).

Fig 3: Removing Frame

G03166100

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining clips and withdraw shaft.

Fig 4: Unlocking Retaining Clips And Withdraw Shaft

G03166101

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining clips and unclip Bowden cable.

Fig 5: Unlocking Retaining Clips And Unclip Bowden Cable

G03166102

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out Bowden cable.

Fig 6: Feeding Out Bowden Cable

G03166103

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 7: Disconnecting Plug Connection

G03166104

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining clips and pull out microswitch (2) in direction of arrow.

Remove heater controls.

Installation:

Clip in microswitch with button (1) towards top.

Fig 8: Clipping Microswitch With Button Towards Top
Courtesy of BMW OF NORTH AMERICA, INC.
