64 11 220 Removing and installing/replacing resistor for heater blower

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove heater bulkhead, refer to 51 71 080 REMOVING AND INSTALLING/REPLACING HEATER BULKHEAD .

Release screws and lever out cover for blower impeller.

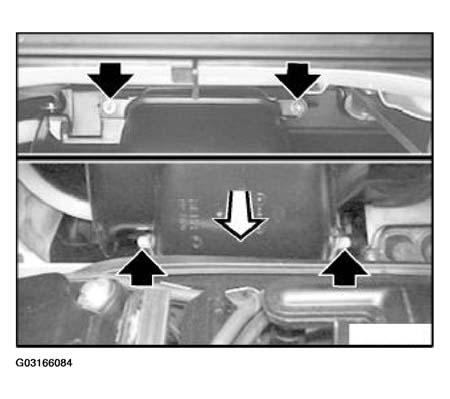

Fig 1: Releasing Screws And Lever Out Cover For Blower Impeller

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1), disconnect plug connection (2) and lever out blower resistor.

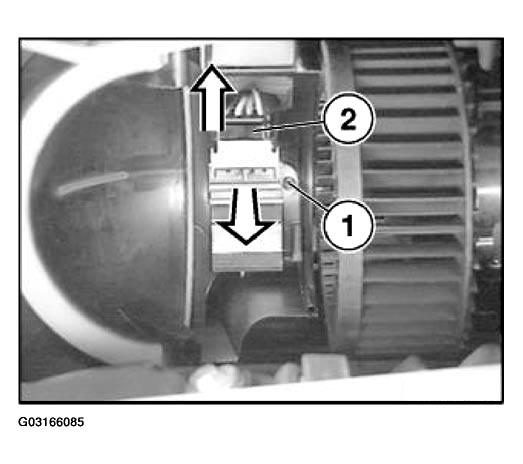

Fig 2: Disconnecting Plug Connection And Lever Out Blower Resistor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

First install resistor. Then insert plug connection.
