64 51 590 Removing and installing/replacing evaporator

Remove heating element, refer to 64 11 207 REPLACING HEATER CORE .

Remove output stage/switch for blower of heater - A/C, refer to 64 11 228 REPLACING OUTPUT STAGE/SWITCH FOR HEATER - A/C SYSTEM BLOWER .

Fig 1: Disconnecting Plug Connection And Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw temperature sensor (1).

Disconnect plug connection (2).

Unclip linkage (3) on servodrive.

Fig 2: Removing Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock servodrive (1), remove and disconnect plug connection.

Release screw (2).

Unlock plate (3) (see magnifying glass in Fig 2) and remove.

Installation:

Insert lugs (4) first.

Unclip wiring harness.

Turn cam disk (1) until microswitch (2) can be unclipped and removed.

Fig 3: Identifying Microswitch

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on fan housing.

Lift off blower housing (1) and feed out double pipe (2).

Fig 4: Lifting Off Blower Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure correct cable routing.

Unclip retainers (1) and remove lower housing (2).

Fig 5: Removing Lower Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove evaporator (1).

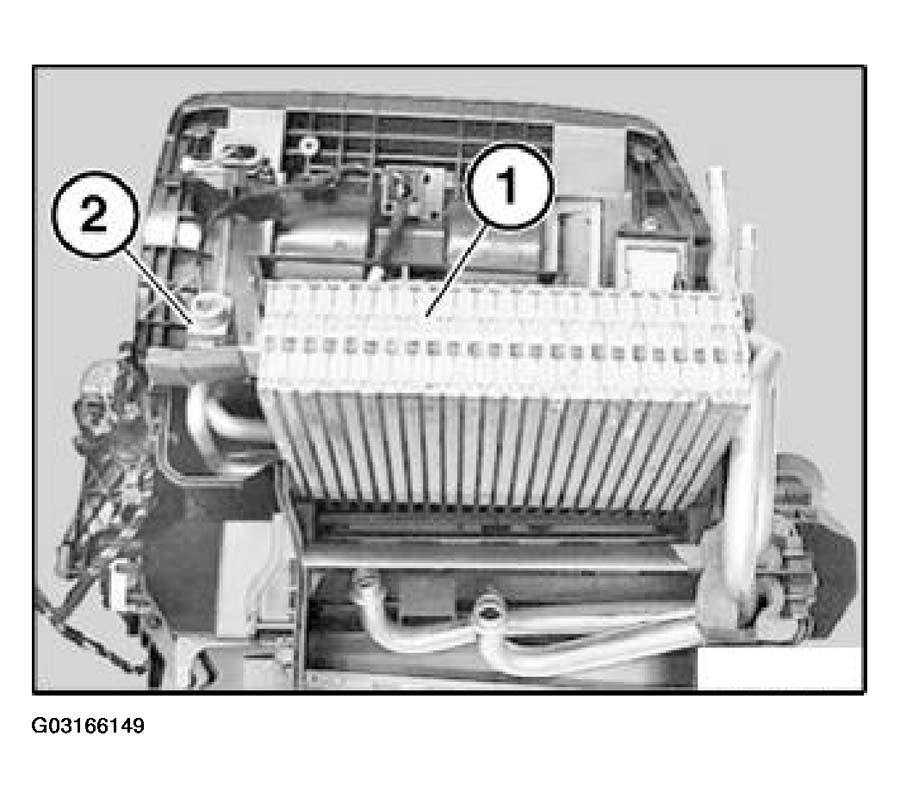

Fig 6: Removing Evaporator

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement Only:

Remove expansion valve (2), refer to 64 51 522 REMOVING AND INSTALLING OR REPLACING EXPANSION VALVE .
