64 51 001 Cleaning evaporator

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to HEATING & AIR CONDITIONING - SPECIAL TOOLS - 325I, 325CI, 325XI (M54/E46) .

64 1 451
64 1 456
64 1 457
64 1 458

WARNING: When handling cleaning agent, observe following protection measures: Wear protective rubber gloves and protective goggles. If cleaning agent comes into contact with eyes or skin, wash immediately with lots of water.

CAUTION: To avoid dirtying vehicle interior:

Close all air vents.
Switch air conditioner to recirculated air mode.
Cover carpet in work area.

Recycling:

Carry out the cleaning operation in a suitable washing bay as the emerging cleaning agent escapes through the drain openings in the transmission tunnel.

NOTE: For more information on cleaning agent, refer to appropriate Service Information. For further information on spray apparatus, refer to Special Tools/Equipment Service Information.

NOTE: Make sure the cleaning agent can escape freely from the drain openings. If necessary, remove rear underbody protection.

Remove limit switch for heater - A/C fan, refer to 64 11 228 REPLACING OUTPUT STAGE/SWITCH FOR HEATER - A/C SYSTEM BLOWER .

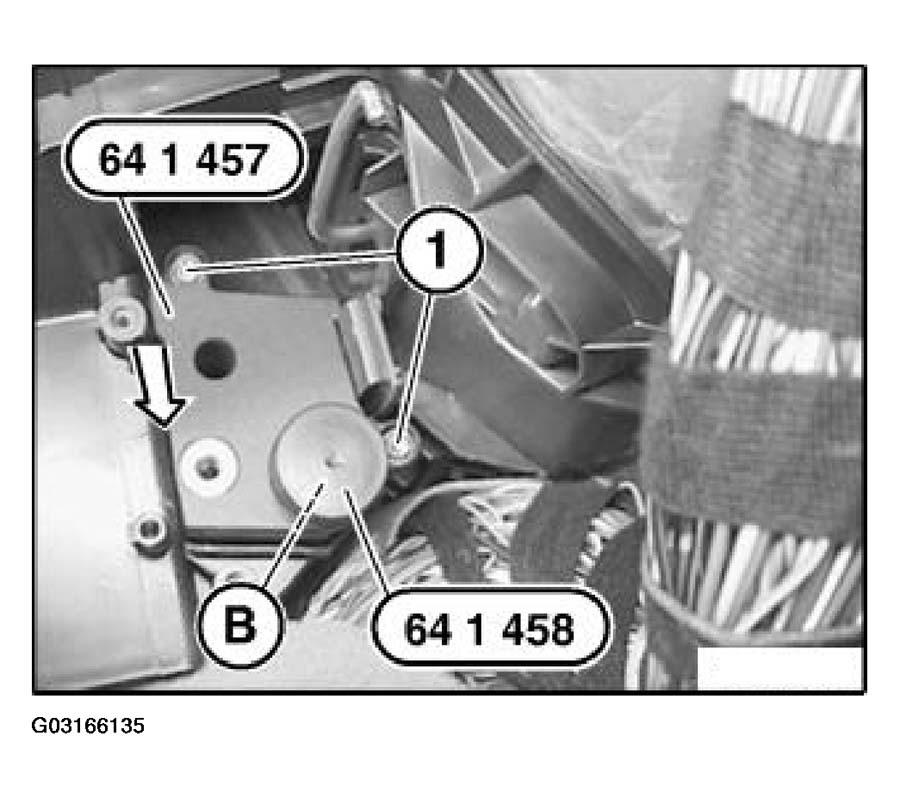

Secure adapter for special tool 64 1 457 spray lance with screws (1) of limit switch for heater - A/C fan.

Fig 1: Securing Adapter For Spray Lance

Courtesy of BMW OF NORTH AMERICA, INC.

Seal opening (B) with plug for special tool adapter 64 1 458.

Fig 2: Inserting Spray Lance

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool spray lance 64 1 451 in direction of arrow and secure with fixture for special tool 64 1 456 spray lance.

Insert travel limiter (1) into notch (2) of special tool spray lance 64 1 451 and turn approx. 45°.

Fig 3: Inserting Travel Limiter Into Notch Of Spray Lance

Courtesy of BMW OF NORTH AMERICA, INC.

Connect special tool spray lance 64 1 451 to spray apparatus.

Fig 4: Connecting Spray Lance To Spray Apparatus

Courtesy of BMW OF NORTH AMERICA, INC.

By moving special tool spray lance 64 1 451 back and forth, spray a uniform amount of cleaning agent onto evaporator.

For information on cleaning agent and rinsing again, refer to Appropriate Service Information.

NOTE: After completing cleaning, allow car to drip-dry for approx. 5 minutes.

Set heater - A/C to footwell ventilation and fresh air operation. Open windows/doors.

Start car and run heater - A/C at max. fan power for approx. 5 minutes in order to dry evaporator.

NOTE: In order to eliminate the last remnants of cleaning agent, repeat this procedure shortly before handover to the customer.
