63 21 183 Removing and installing/replacing left or right tail light (on rear lid)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Remove socket housing for rear light. See 63 21 055 Replacing a socket housing for left or right rear light (saloon/sedan, touring)

Release nut slightly.

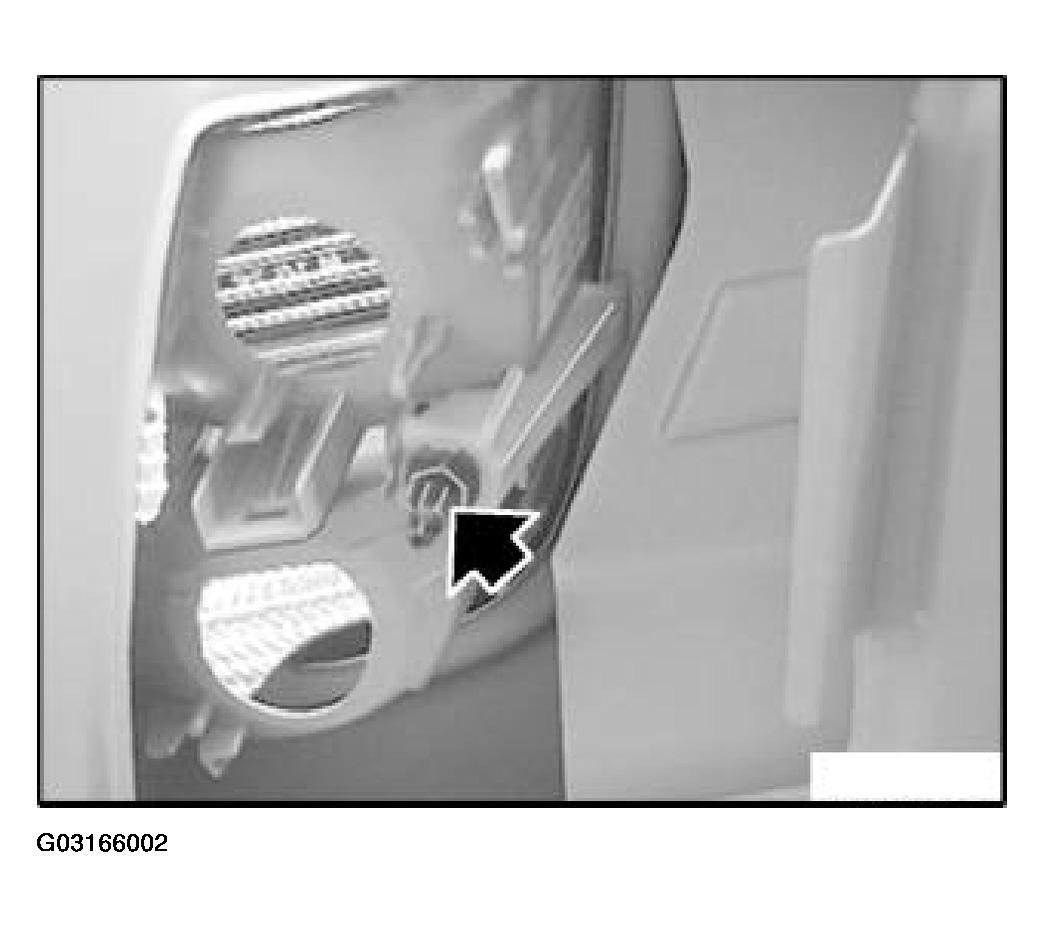

Fig 1: Releasing Nut Slightly

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock in direction of rear light housing and remove rear light towards outside.

Installation:

Make sure rear light seal is correctly seated, replace if necessary.

Make sure there is a uniform gap all round between outer rear light and rear lid.

Installation:

Attach outer detent lugs (1) to rear lid.

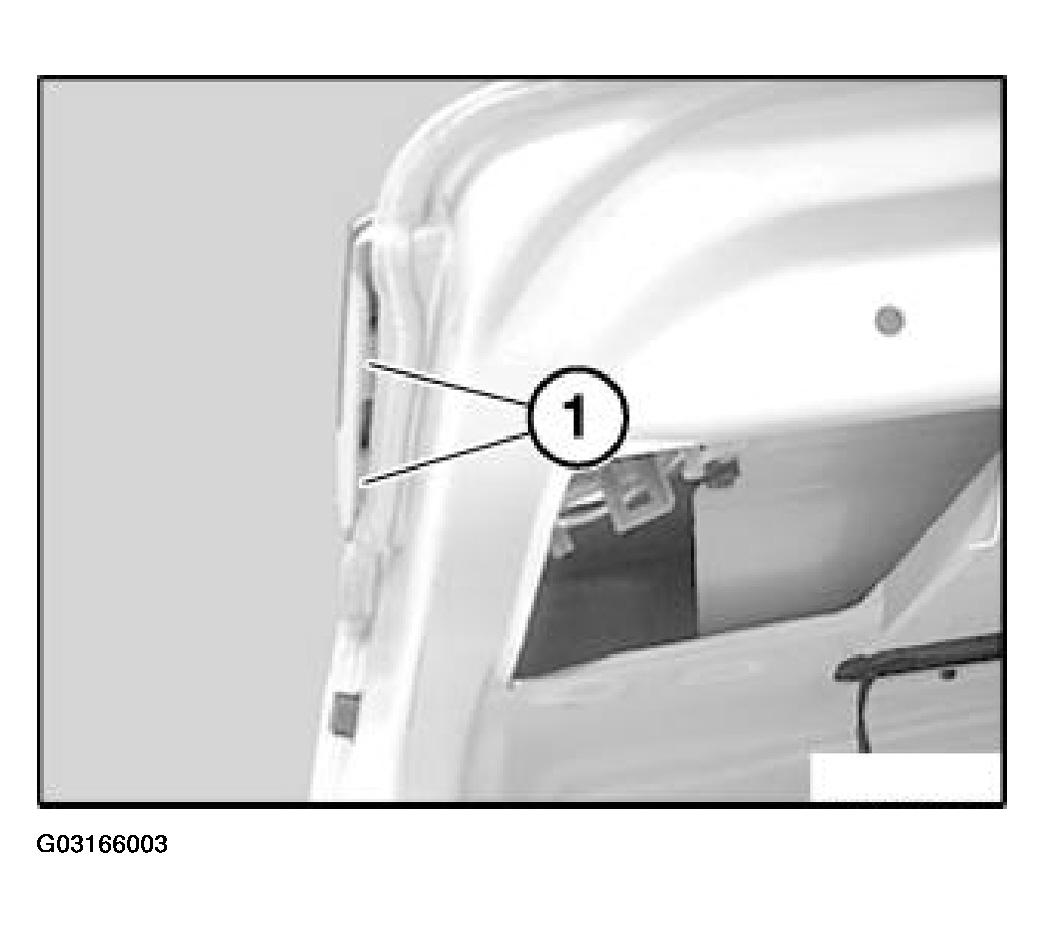

Fig 2: Attaching Outer Detent Lugs To Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.
