63 99 230 Replacing halogen bulb for left or right fog lamp (M aerodynamics package)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Follow instructions for handling light bulbs (exterior lights), refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Remove fog lamp.

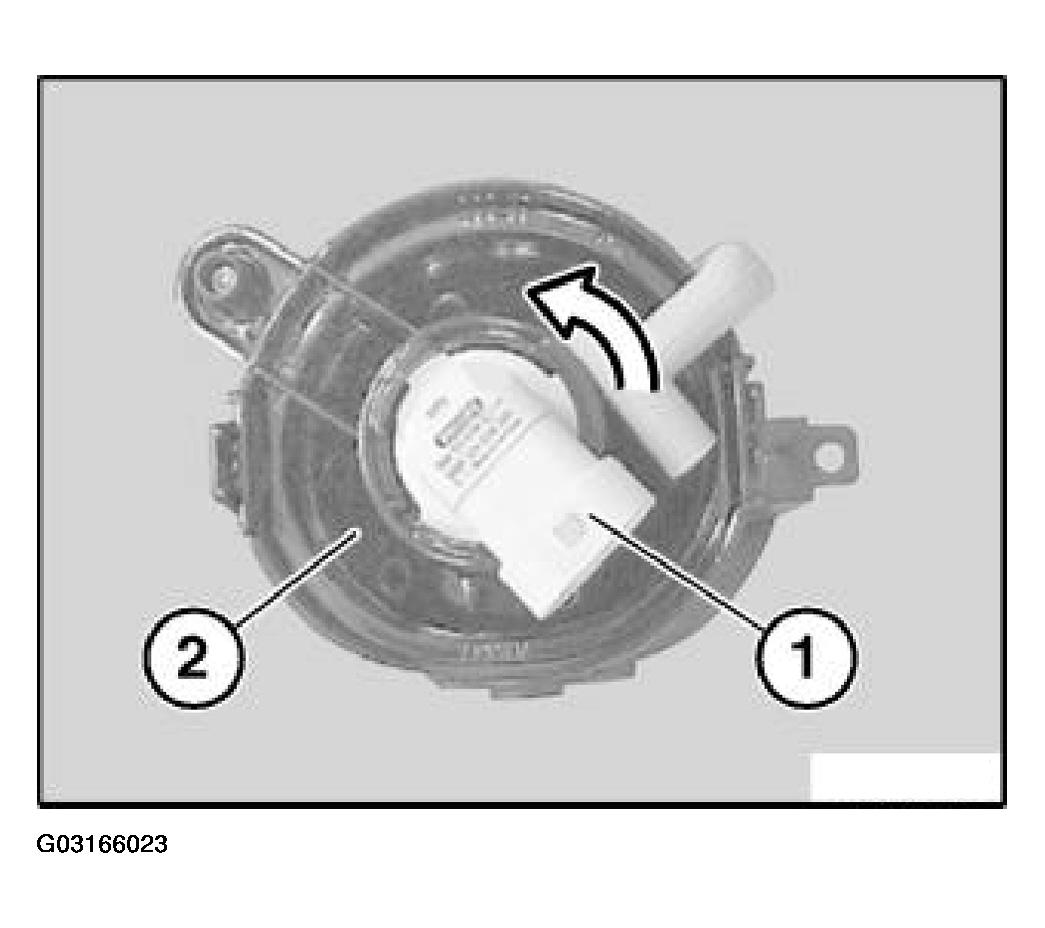

Turn bulb with socket (1) and remove from fog lamp (2).

Fig 1: Turning Bulb With Socket
G03166023Courtesy of BMW OF NORTH AMERICA, INC.
