63 12 870 Replacing ignition unit for left xenon headlight (saloon/sedan, touring)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal. Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.

Remove left headlight (xenon headlight). See 63 12 005 Removing and installing/replacing left headlight (xenon headlight)

Remove left headlight insert (xenon headlight).

Up to 09/2001:

Disconnect plug connection (1).

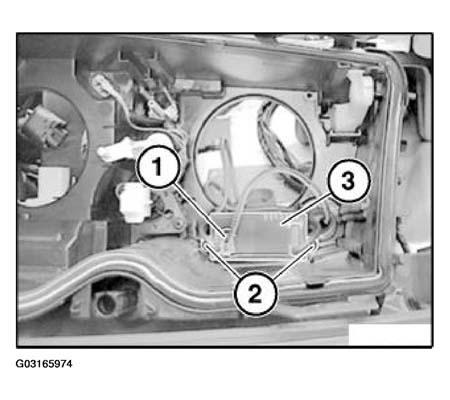

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Remove ignition unit for xenon headlight (3).

From 09/2001:

Loosen screws (1).

Raise ignition unit for xenon headlight (2) and disconnect plug connection (3).

Remove ignition unit for xenon headlight (2).

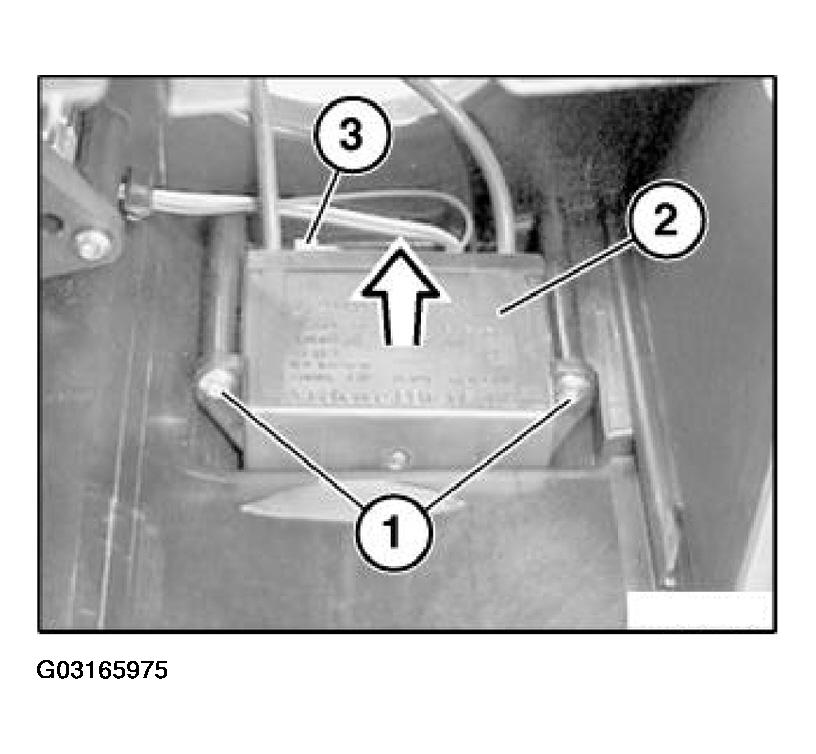

Fig 2: Raising Ignition Unit For Xenon Headlight
