54 12 497 Removing and installing / replacing wind deflector for glass sliding/tilting sunroof
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

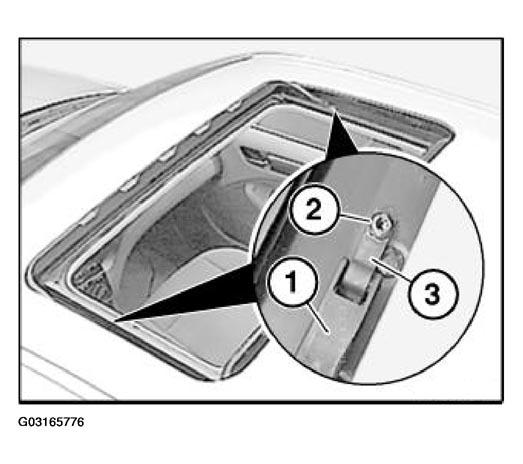

Open glass sunroof lid.
Press down wind deflector (1).
Release screws (2).
Remove spring (3) on left/right and wind deflector (1).
Installation:
- Tightening torque 1 N.m.
Installation:

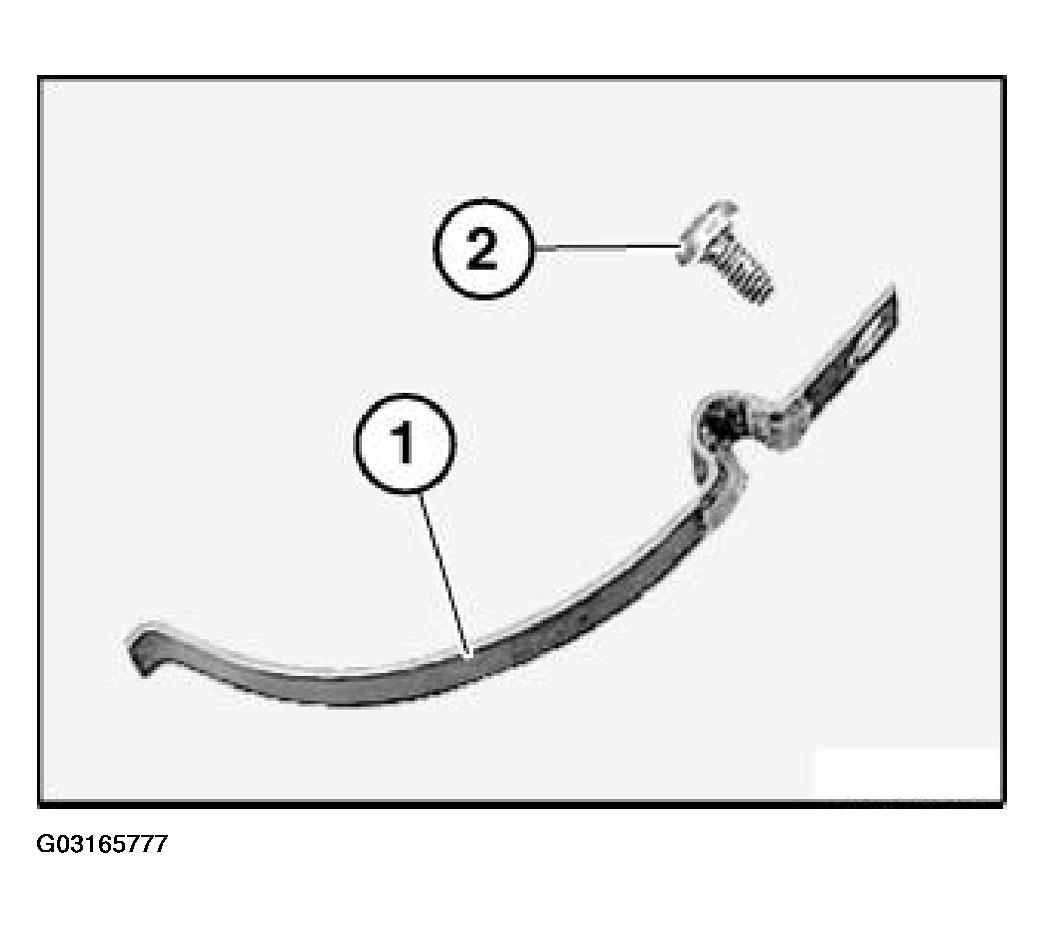

- If necessary, replace faulty spring (1) and screw (2).
