54 12 138 Removing and installing/replacing water gutter for glass slide/tilt sunroof (from 09/2001)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove glass sunroof lid, refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID .

Unhook lever (2) of water gutter on left/right from rail (1).

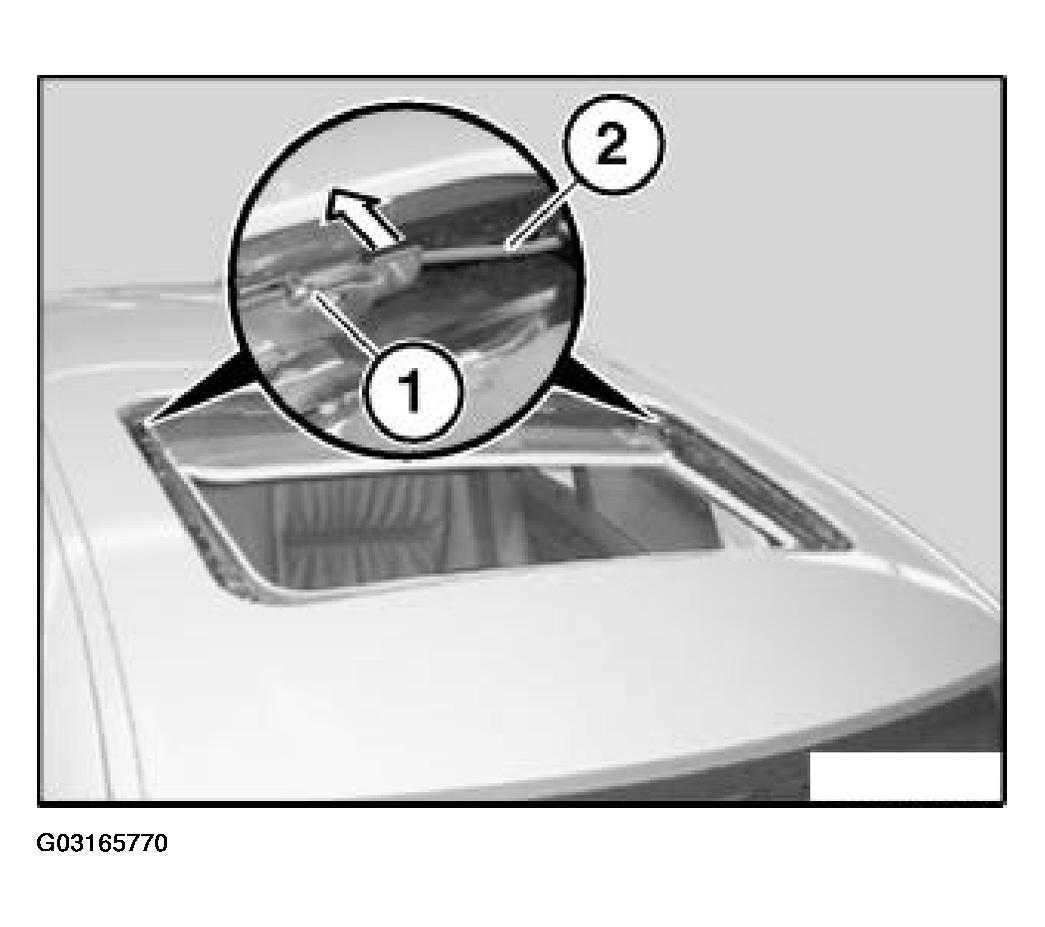

Fig 1: Unhooking Lever Of Water Gutter On Left/Right From Rail

G03165770

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure lever (1) is correctly locked.

Pull water gutter forwards until roller (2) can be seen through opening in guide channel (3).

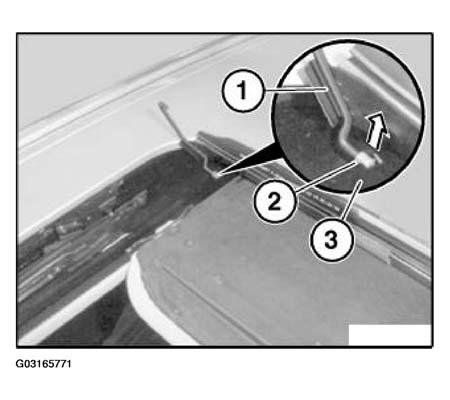

Fig 2: Pulling Water Gutter Forwards Until Roller And Opening In Guide Channel

G03165771

Courtesy of BMW OF NORTH AMERICA, INC.

Lever (1):

On right side to be pulled upwards.
On left side to be unhooked from guide channel.

Installation:

Following parts of water gutter must not be missing or damaged:

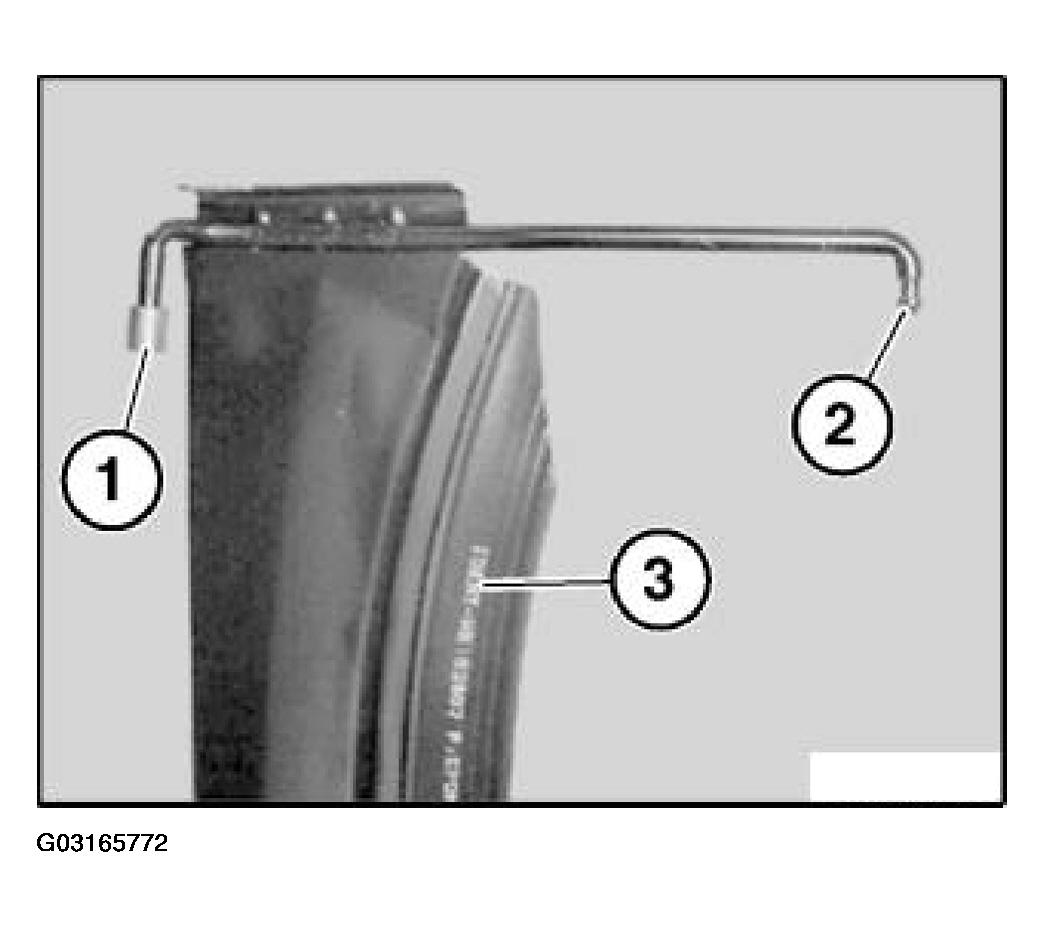

Fig 3: Identifying Roller, Lock And Rubber Seal

G03165772

Courtesy of BMW OF NORTH AMERICA, INC.

Roller
Lock
Rubber seal

Check function.
