Right Axle Shaft Bearing Pedestal (E46 All Wheel Drive Vehicles): Removal

WARNING: This page does not describe the selected car, but rather 120 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove cross brace from front axle support. See REINFORCEMENT CROSS BRACE .
Remove right axle shaft. See DRIVE AXLE SHAFTS (FRONT, ALL WHEEL DRIVE VEHICLES) .
Release grounding strap on bearing pedestal. Release screws and remove bearing block (1). See Fig 1.

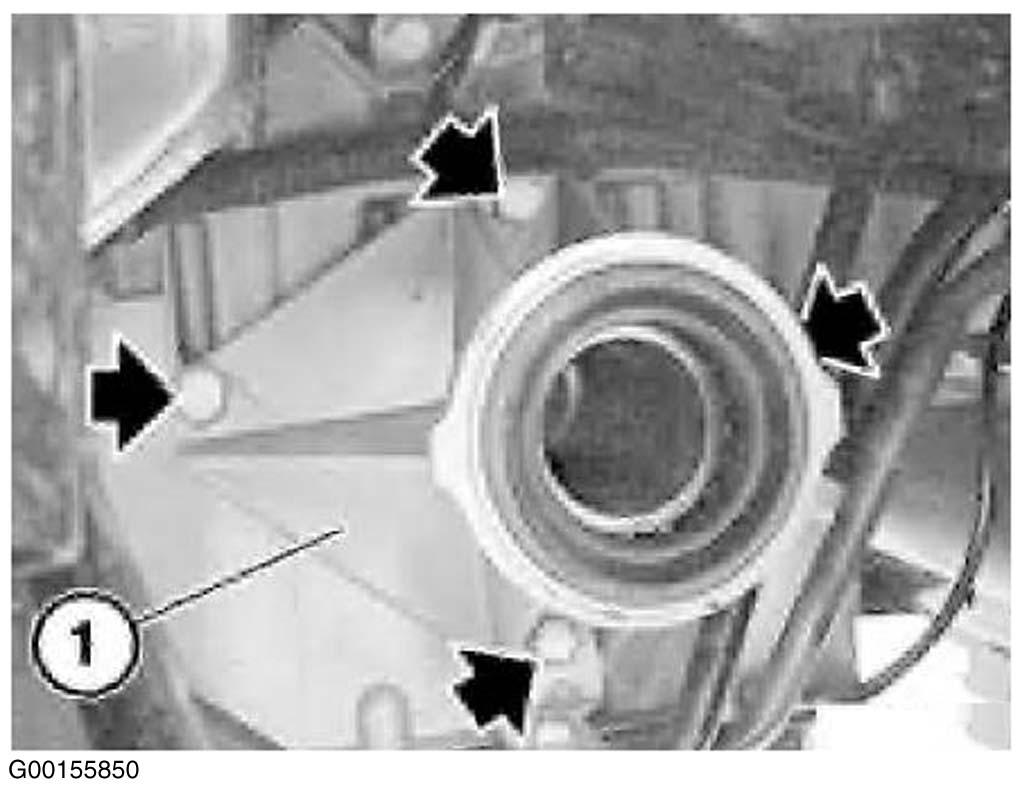

Fig 1: Removing Bearing Block

Courtesy of BMW OF NORTH AMERICA, INC.
