Right Axle Shaft Bearing Pedestal (E46 All Wheel Drive Vehicles): Installation
WARNING: This page does not describe the selected car, but rather 120 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
For non-limited slip differential use SAF-X0 or equivalent. For all other vehicles use only SAF-XLS or equivalent. Failure to comply will result in serious damage to the differential.

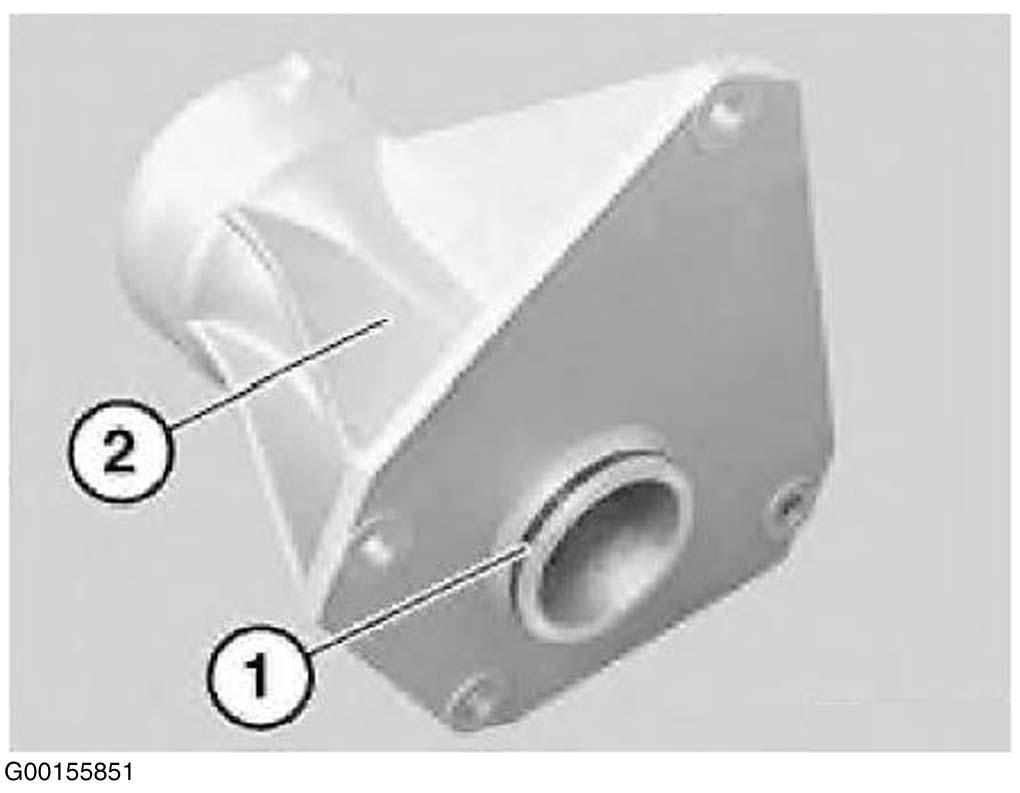

- Install new sealing ring (1) on bearing block (2). See Fig 1.
- Coat new sealing ring with gear oil.
- Install bearing pedestal and tighten screws to specification. See TORQUE SPECIFICATIONS .
- Install axle shaft assembly. See DRIVE AXLE SHAFTS (FRONT, ALL WHEEL DRIVE VEHICLES) .
- After completing work, open filler plug and check front axle differential fluid level. Fluid level should come to lower edge of filler plug.
