52 15 198 Removing And Installing/Replacing Rear Panel On Front Left Or Right Seat Backrest (Sports/Manual)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

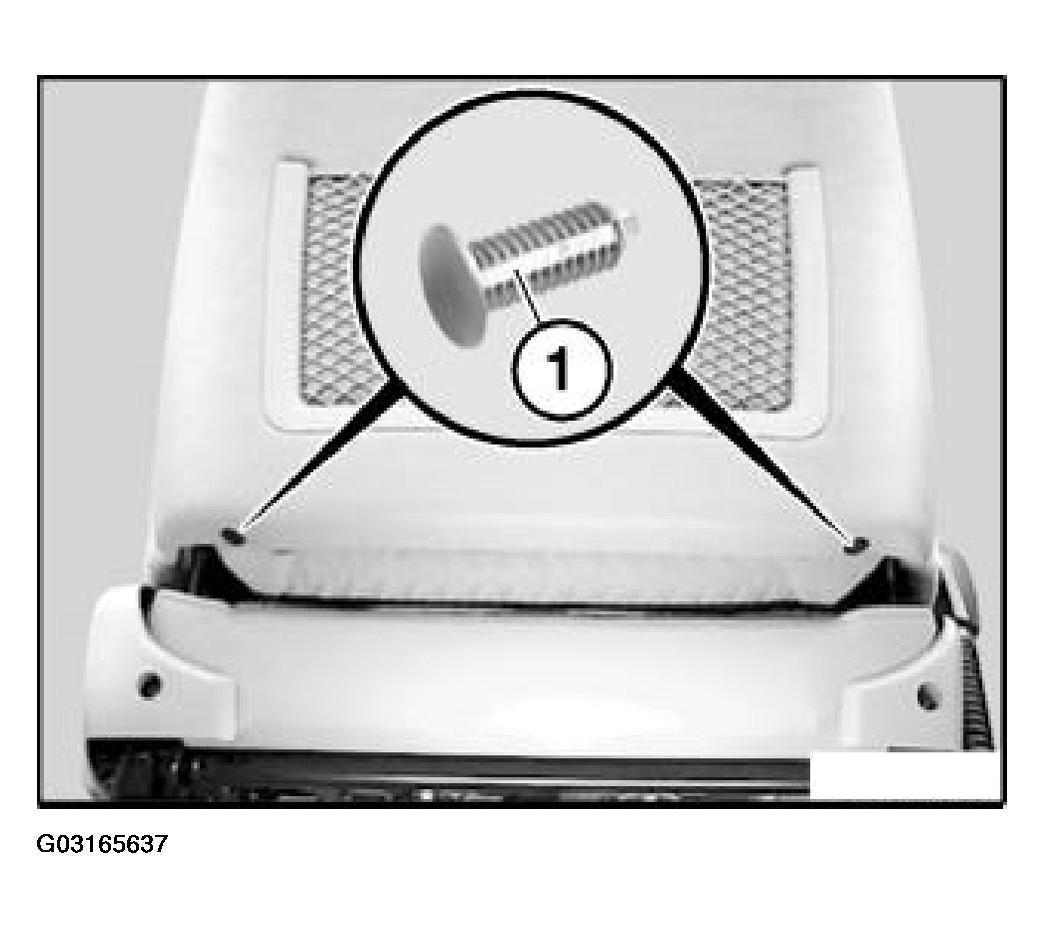

Release clips (1) with side cutting pliers.

Fig 1: Releasing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove clip remainders.

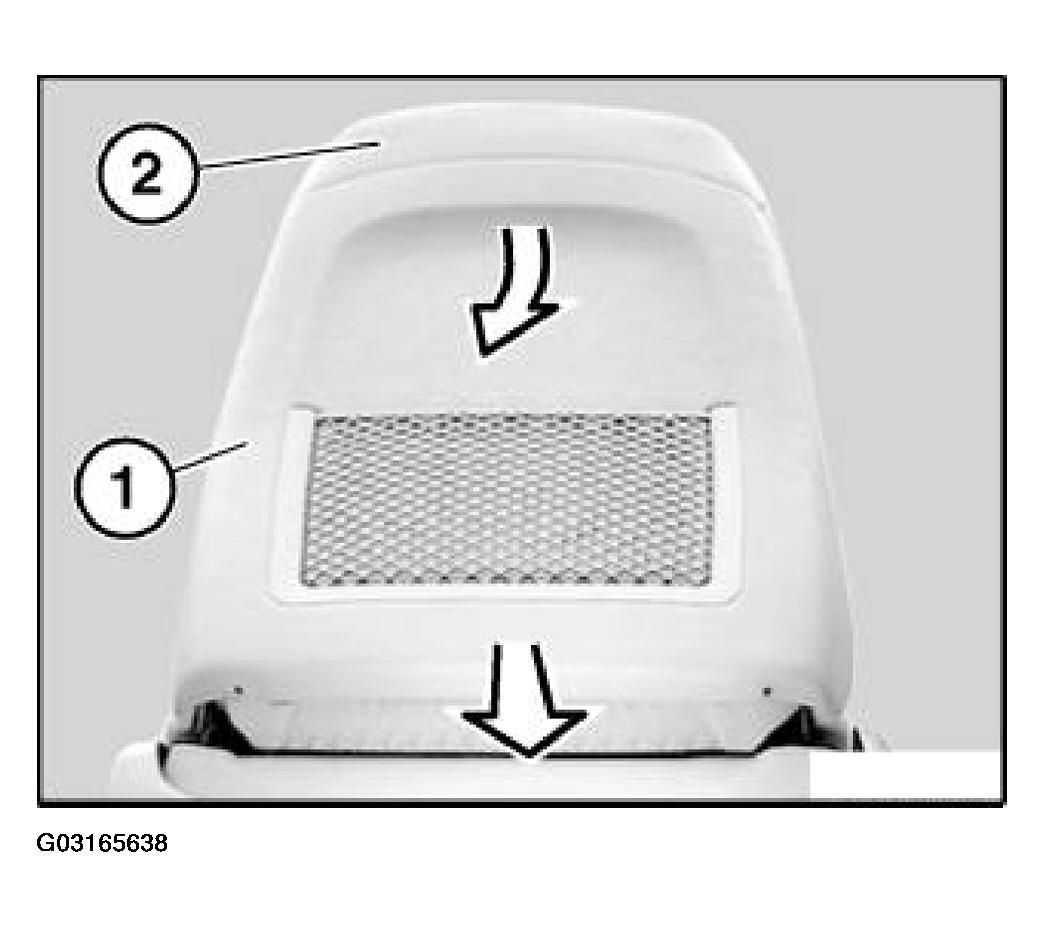

Lever out rear panel (1) at bottom towards rear and pull out towards bottom from backrest frame (2).

Fig 2: Removing Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

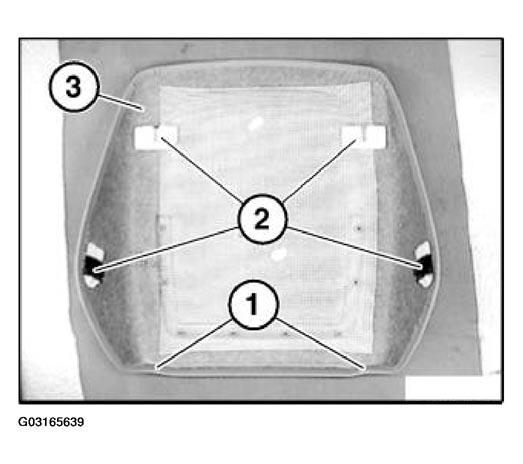

Bores (1) and fastening set (2) of rear panel (3) must not be damaged.

Fig 3: Locating Bores & Fastening Set Of Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

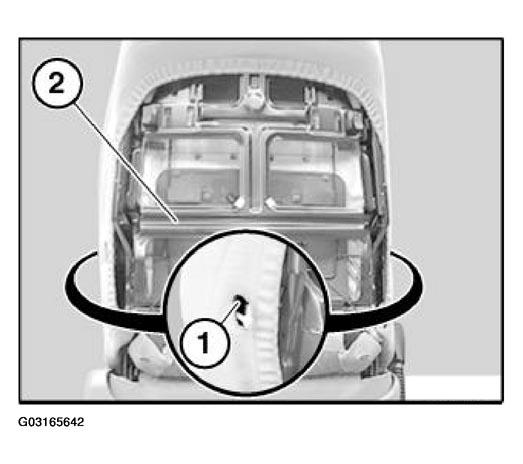

Slide backrest cover (1) on left/right over clip mount (2).

Fig 4: Sliding Backrest Cover Over Clip Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

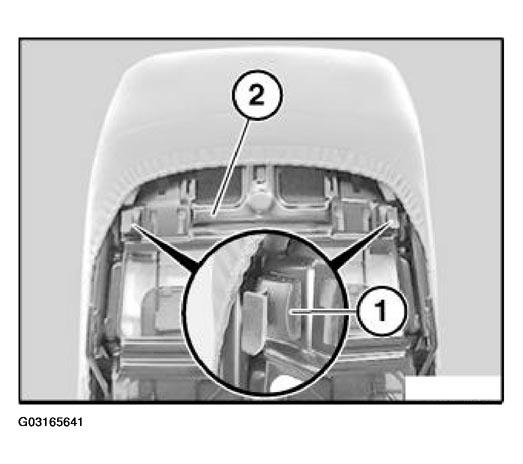

Mounts (1) on backrest frame (2) must not be damaged.

Fig 5: Locating Mounting On Backrest Frame
Courtesy of BMW OF NORTH AMERICA, INC.
To install rear panel, first slide into mounts (1) and then slide in at sides at bottom, refer to next work step.

Installation:

After installing rear panel in upper mounts, refer to previous work step:

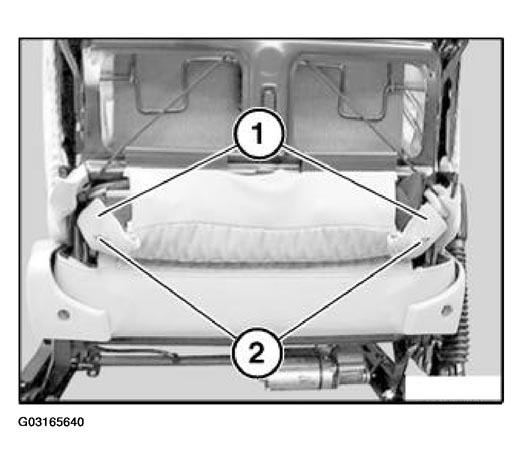

Feed rear panel at sides into opening in backrest cover and insert into mounts (1) on left/right on backrest frame (2) and snap into place.

Fig 6: Inserting Into Mounts On Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.
