51 13 001 Removing and installing/replacing front radiator grille, middle left or right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Open hood.

Lever out catches (1) on left/right and (2) at bottom.

Fig 1: Levering Out Catches On Left/Right And At Bottom

G03164871

Courtesy of BMW OF NORTH AMERICA, INC.

Front radiator grill (3) is movable.

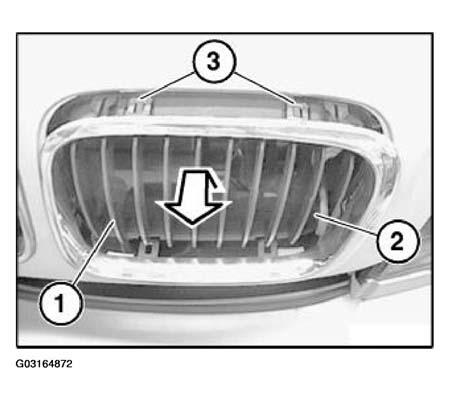

Feed out front radiator grill (1) from lever (2) and engine hood.

Fig 2: Feeding Out Front Radiator Grill From Lever And Engine Hood

G03164872

Courtesy of BMW OF NORTH AMERICA, INC.

After removal, lever out upper catches (3) and detach inner section from chrome ring.

Installation:

Retaining lugs (1) and catches (2) on inner section (3) must not be damaged.

Fig 3: Identifying Retaining Lugs (1) And Catches (2) On Inner Section (3)

G03164873

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

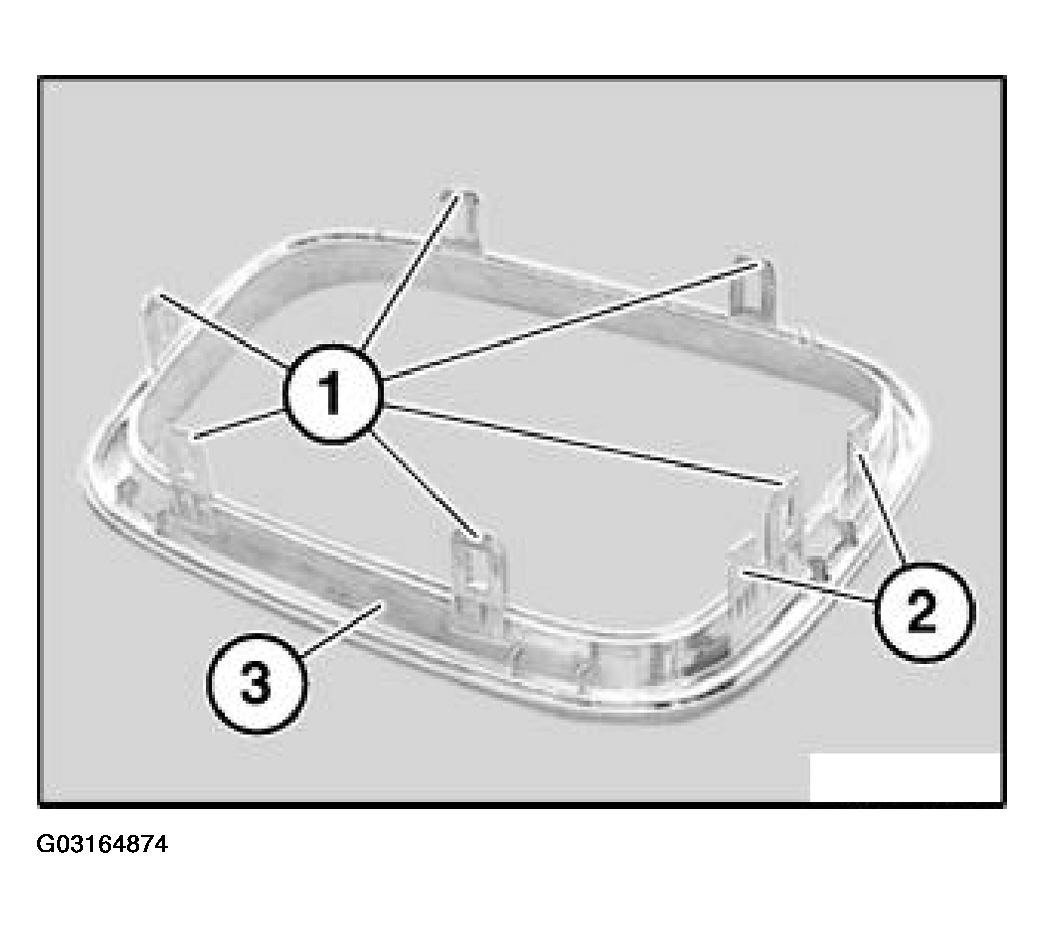

Catches (1) and guides (2) on chrome ring (3) must not be damaged.

Fig 4: Identifying Catches And Guides On Chrome Ring

G03164874

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Assemble chrome ring (1) and inner section (2).

Fig 5: Assembling Chrome Ring And Inner Section

G03164875

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure correct locking.

Installation:

Press on chrome ring to push front radiator grill (1) into engine hood.

Fig 6: Pressing On Chrome Ring To Pushing Front Radiator Grill Into Engine Hood

G03164876

Courtesy of BMW OF NORTH AMERICA, INC.

The supports (2) must lock correctly.
