51 43 201 Removing and installing or replacing trim for front left or right roof

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with head airbag: Follow safety instructions for working on cars with airbag systems, refer to 51 00... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS

CAUTION: Do not use sharp-edged tools to remove trim (risk of damage to head airbag).

Remove mucket from front roof pillar (A-pillar finisher).

Remove plate (1).

Fig 1: Removing Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Lift out trim (2) at top (3) and remove towards inside/top.

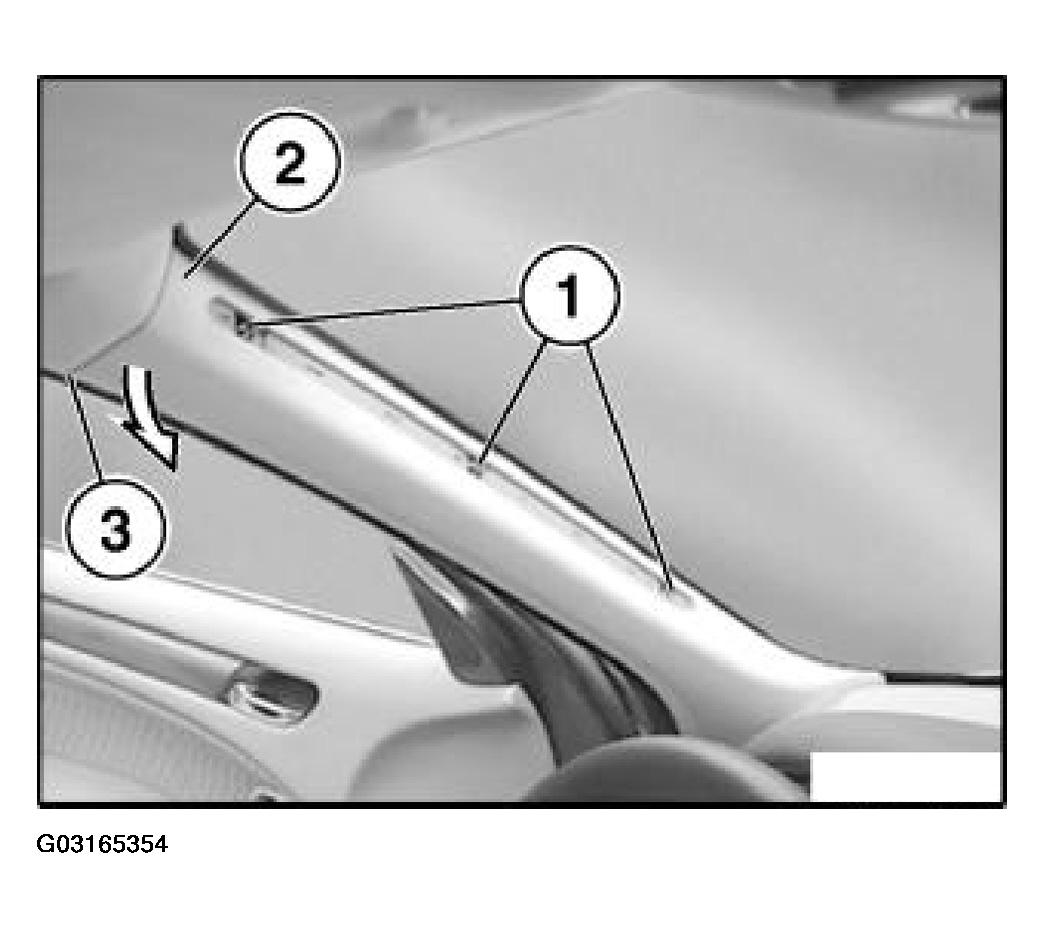

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install screws (1) with washers.
Tightening Torque, refer to 51 43 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 325I, CI & XI - E46
.
