51 22 300 Removing and installing/replacing window cavity cover strip on rear door on left or right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

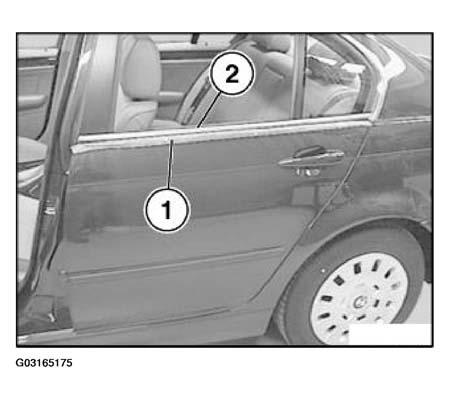

Attach adhesive tape (1) below window cavity cover strip (2) (risk of damage).

Fig 1: Attaching Adhesive Tape Below Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

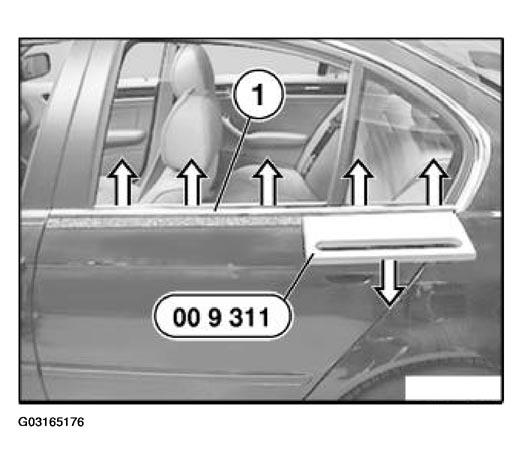

Using special tool 00 9 311 and proceeding from rear to front, lever out window cavity cover strip (1).

Fig 2: Levering Out Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Prior to installation, coat window cavity cover strip (1) with soapy solution (washing-up liquid).
Window cavity cover strip (1) must be flush with door edge at front and rear.
