51 12 435 Replacing left or right side molding for rear bumper

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 3-SERIES (M54/E46) .

0 9 321

Unclip rubbing strip first at rear then at side with special tool 00 9 321 (fishbone) and remove at an angle towards rear.

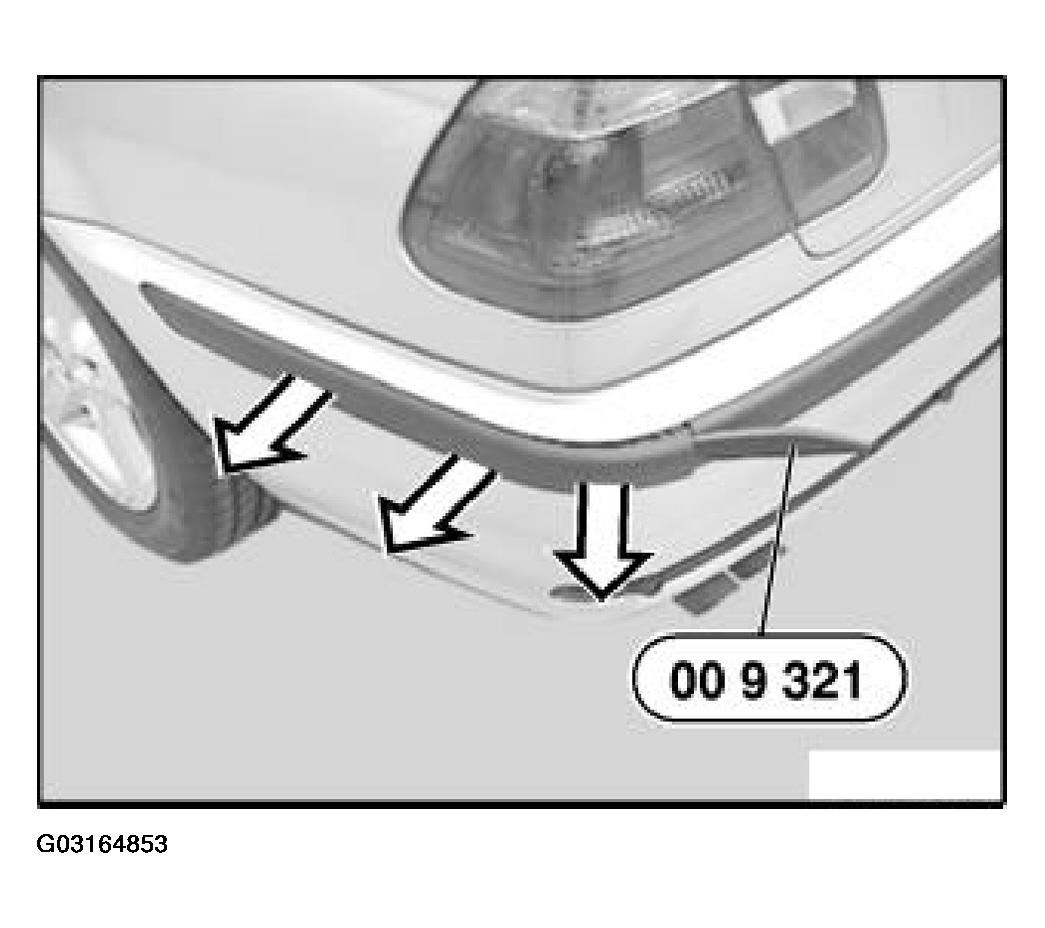

Fig 1: Uncliping Rubbing Strip First At Rear Then At Side With Special Tool 00 9 321

G03164853

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert rubbing strip first at front (1) and then clip into place.

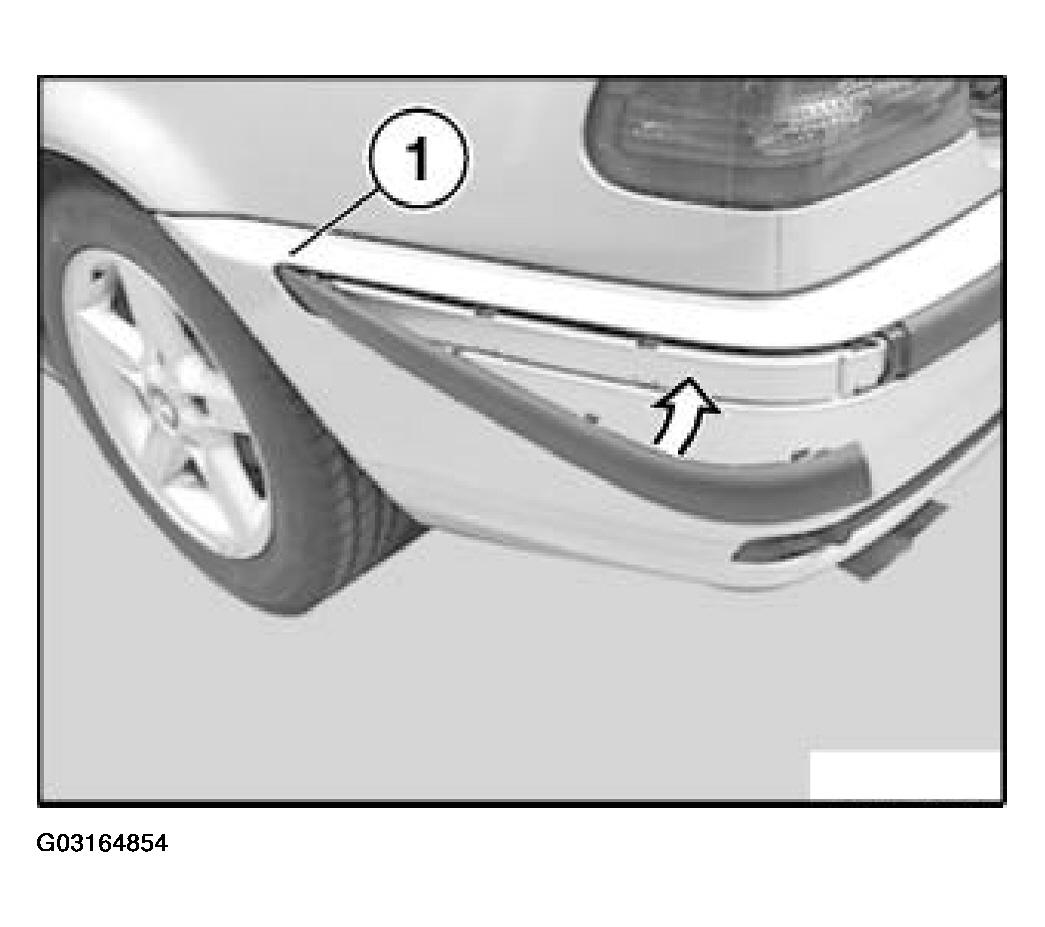

Fig 2: Inserting Rubbing Strip First At Front And Then Clip Into Place

G03164854

Courtesy of BMW OF NORTH AMERICA, INC.

Saloon/sedan, compact:

Installation:

Replace rubbing strip if detent lugs (1) are faulty.

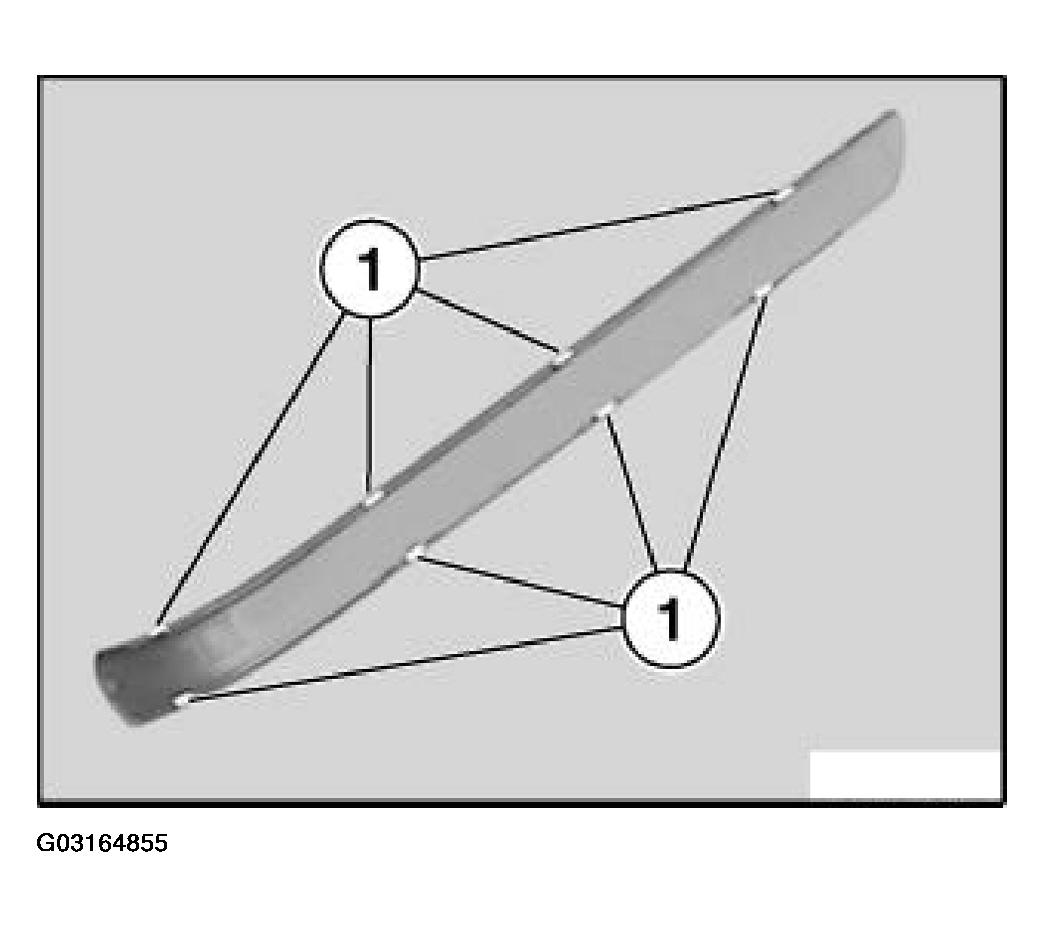

Fig 3: Replacing Rubbing Strip If Detent Lugs Are Faulty

G03164855

Courtesy of BMW OF NORTH AMERICA, INC.

touring:

Installation:

Replace rubbing strip (2) if detent lugs (1) are faulty.

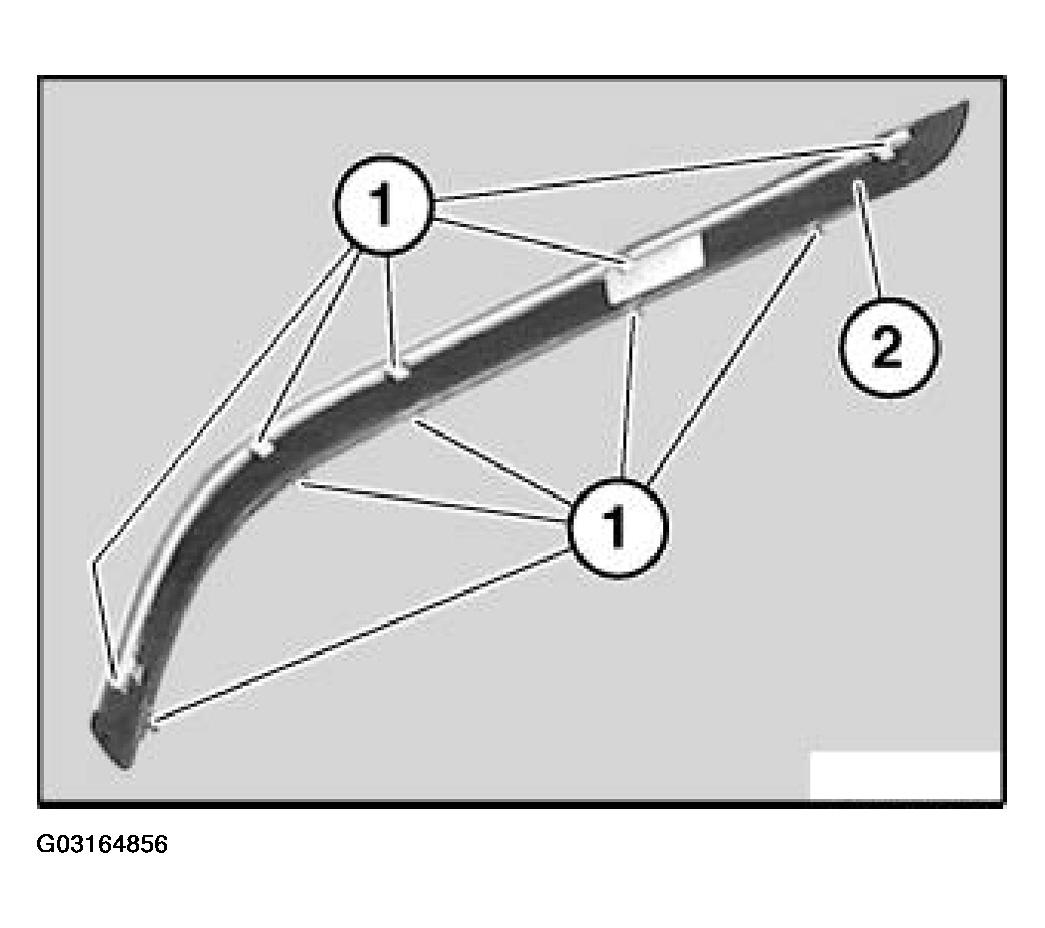

Fig 4: Replacing Rubbing Strip Detent Lugs

G03164856

Courtesy of BMW OF NORTH AMERICA, INC.
