51 16 211 Removing and Installing/replacing finisher for storage tray
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Version with automatic transmission only:
Remove finisher for preselector lever,
refer to 51 16 210 REMOVING AND INSTALLING / REPLACING FINISHER FOR PRESELECTOR LEVER .

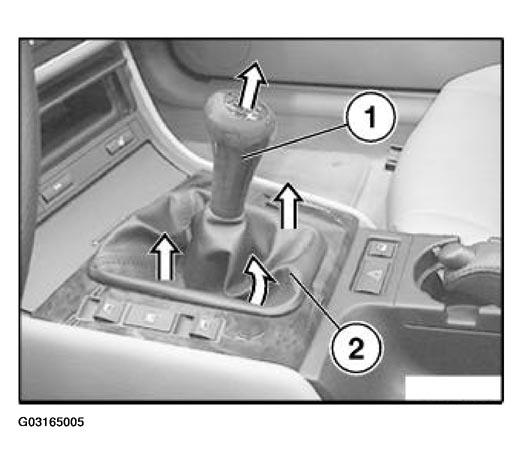

Jerkily remove knob (1) for selector lever towards top.
Lift out rubber gaiter (2).

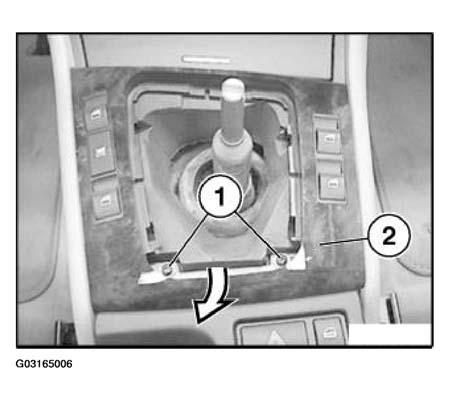

Unscrew bolts (1).
Remove finisher (2) towards rear/top.
Disconnect plug connections and remove finisher (2).
Replacement only:

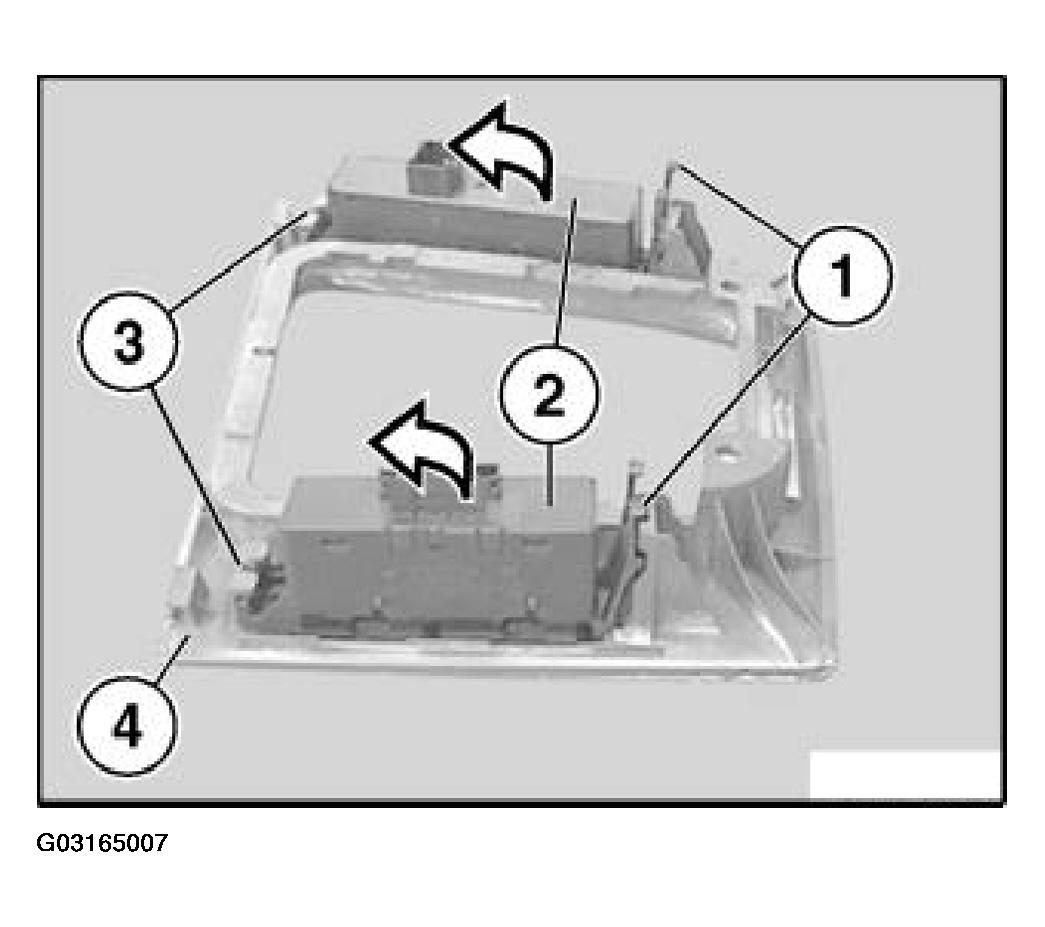

Unlock lock (1),
unscrew switch (2) towards top from support (3) and remove from finisher (4) for storage tray.
Installation:
- Check function.
