51 21 180 Removing and installing/replacing cover on outside handle

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

coupe:

Lever out cover (1) only until bore (2) is accessible.

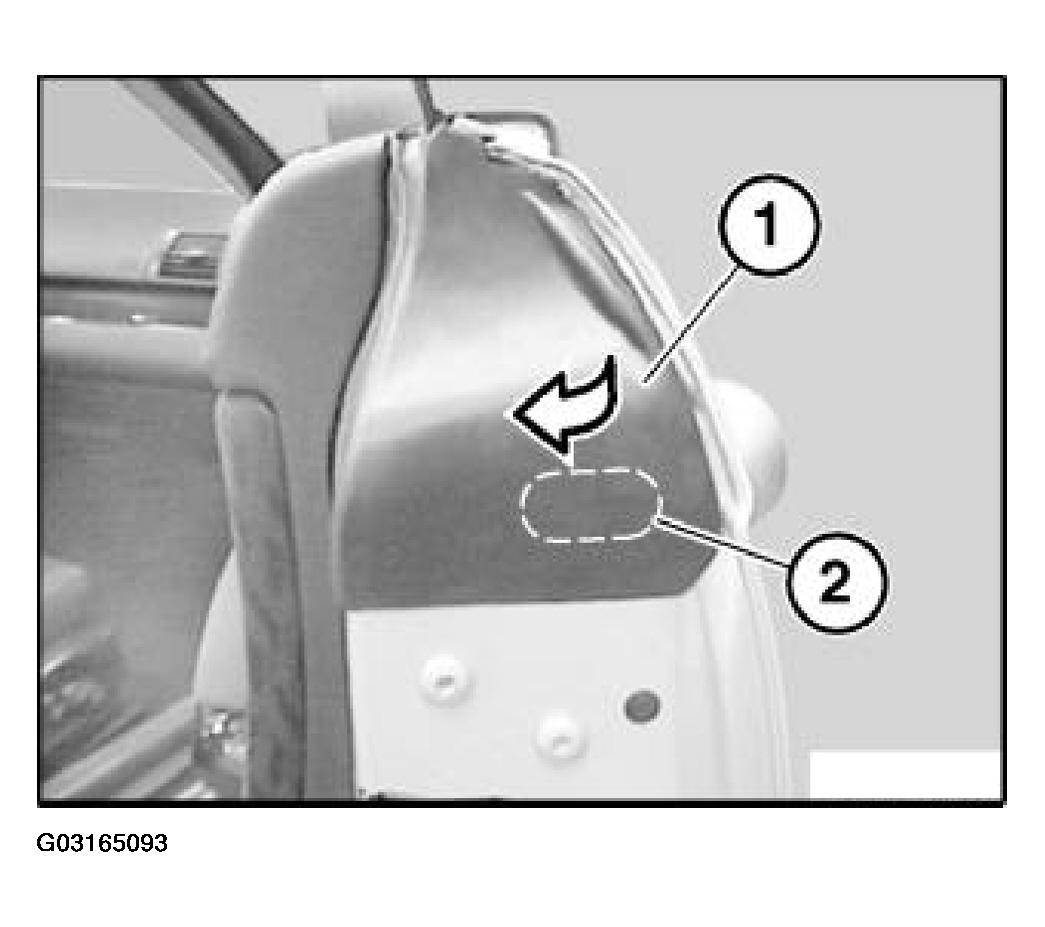

Fig 1: Levering Out Cover (1) Only Until Bore (2) Is Accessible
G03165093Courtesy of BMW OF NORTH AMERICA, INC.

sedan:

Remove plate (1).

Installation:

Fit new plate (1).

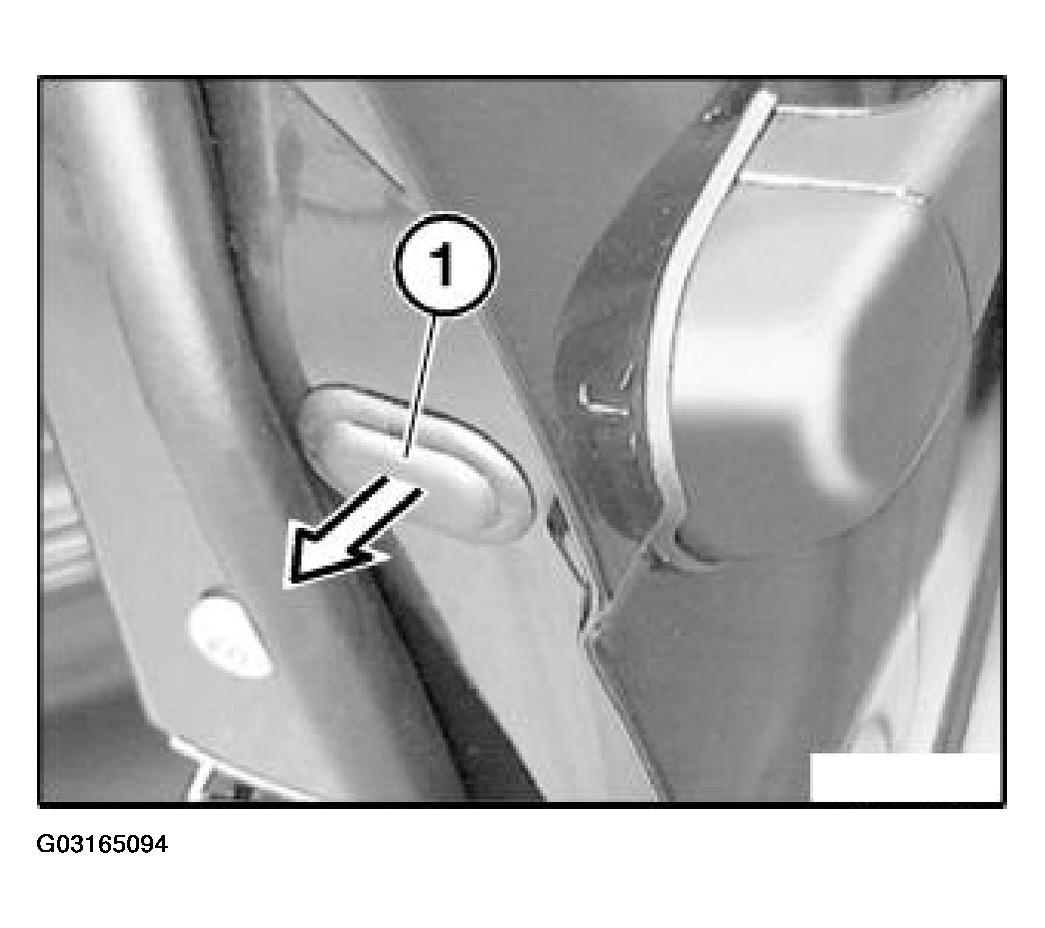

Fig 2: Fitting Plate
G03165094Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

Detach cover (2).

Fig 3: Unscrewing Bolt And Cover
G03165095Courtesy of BMW OF NORTH AMERICA, INC.

Lever out catches (1) and detach cover (2) from filler element (3).

Installation:

  1. Catches (1) on cover (2) must not be damaged.

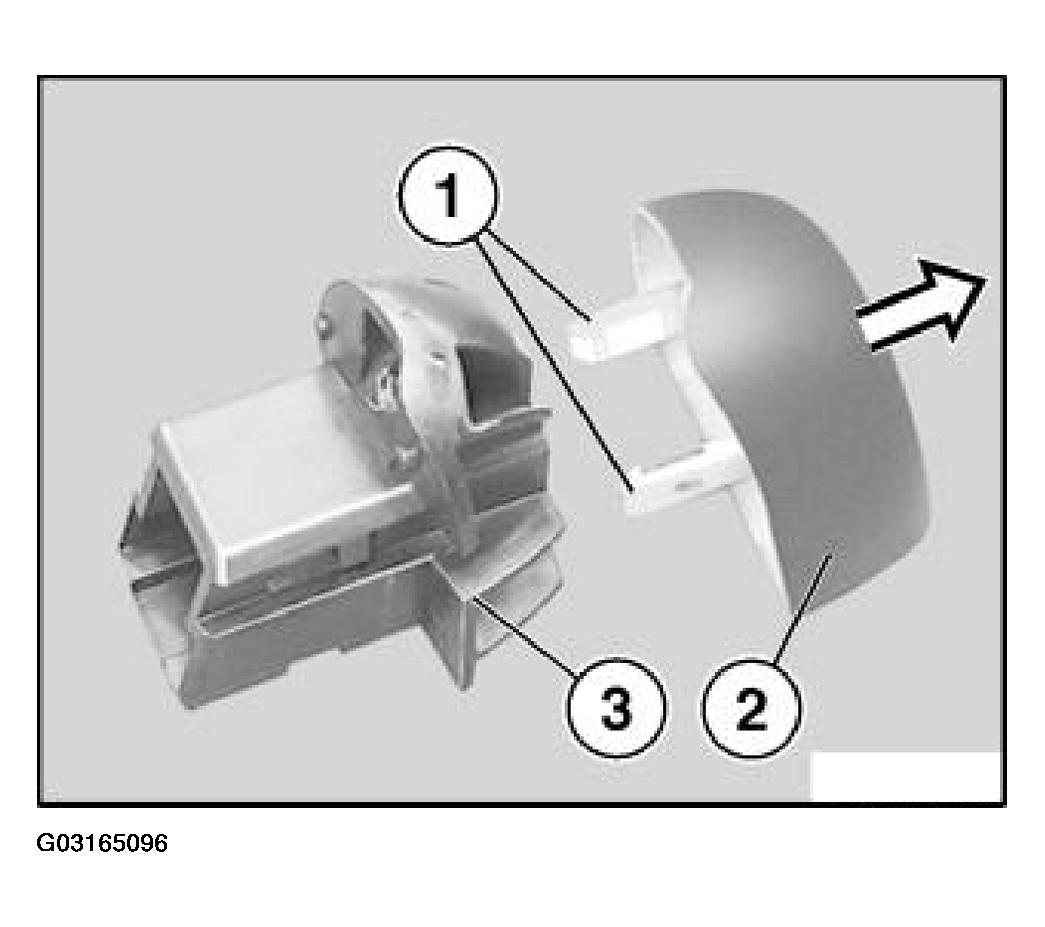

Fig 4: Identifying Catches On Cover
G03165096Courtesy of BMW OF NORTH AMERICA, INC.
