51 47 101 Removing and installing/replacing luggage compartment floor trim panel

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.

Take out luggage compartment floor trim panel (1).

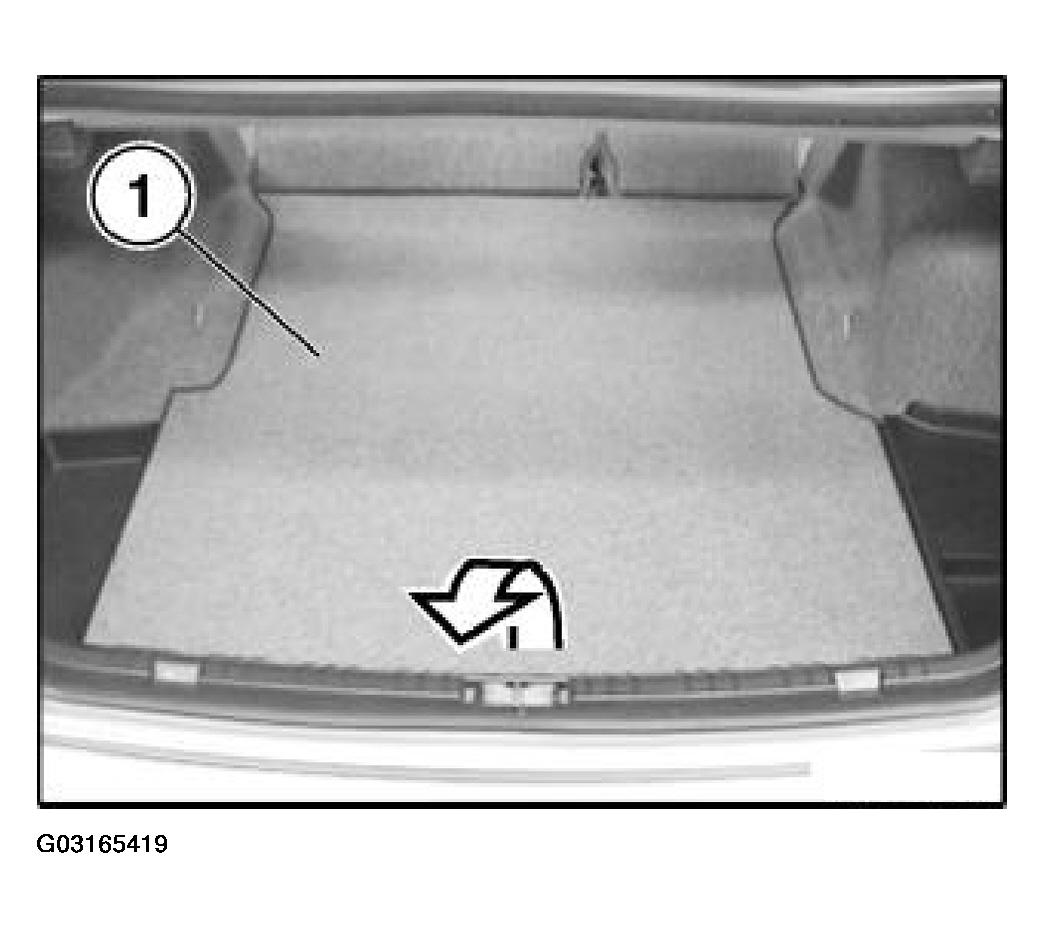

Fig 1: Removing Luggage Compartment Floor Trim Panel
G03165419Courtesy of BMW OF NORTH AMERICA, INC.
