26 11 090 Removing and installing/replacing centering mount for propeller shaft

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

NOTE: For special tools, refer to PROPELLER SHAFT - SPECIAL TOOLS - 325i, 325Ci, 325xi (M54/E46) .

00 5 500
11 1 310
11 2 030

Necessary Preliminary Tasks:

Remove propeller shaft, refer to 26 11 000 REMOVING AND INSTALLING PROPELLER SHAFT (CARDAN UNIVERSAL JOINT) COMPLETELY .

Fill centering bore (1) completely with viscous grease.

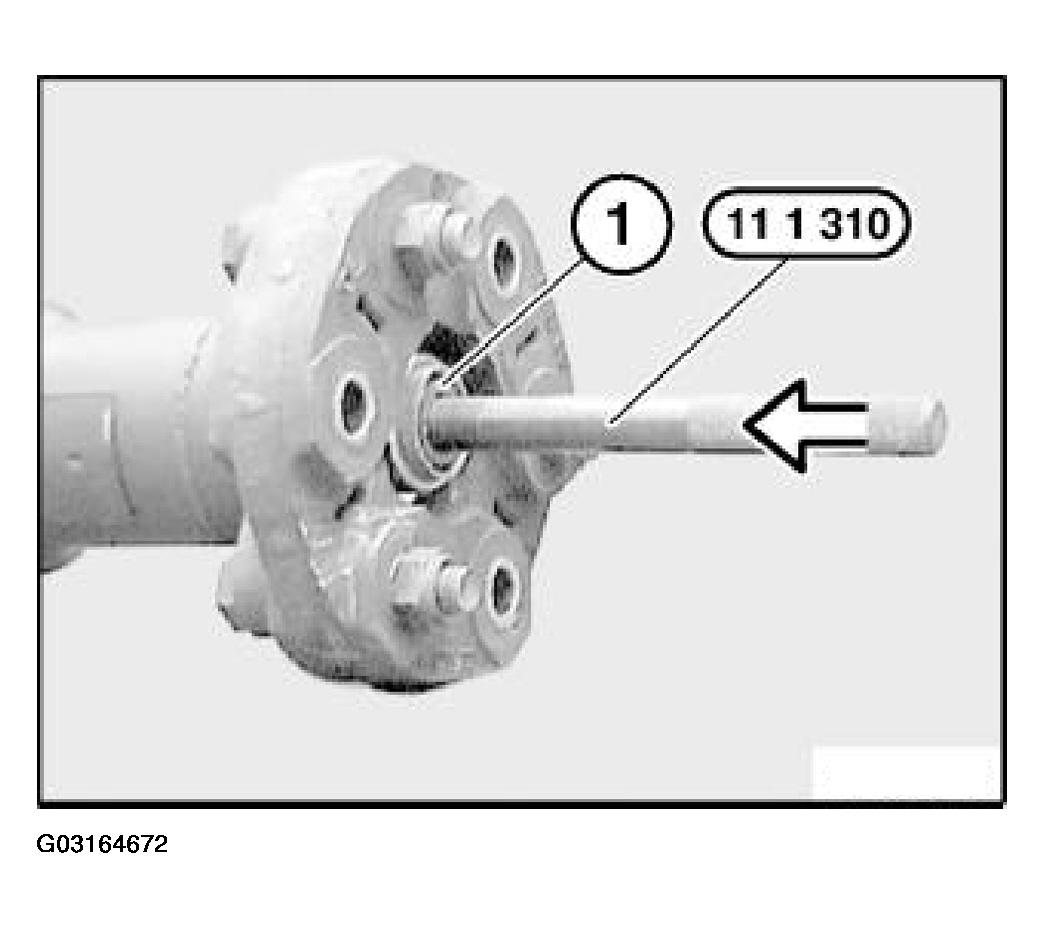

Drive special tool 11 1 310 with a plastic hammer into centering bore.

The centering mount (1) is forced out of the propeller shaft by the pressure on the grease filling.

Fig 1: Filling Centering Bore Completely With Viscous Grease

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, top up grease repeatedly.

NOTE: To drive out the mount, you can also fill the centering bore with water instead of grease.

Installation:

Remove grease/water from mount bore.

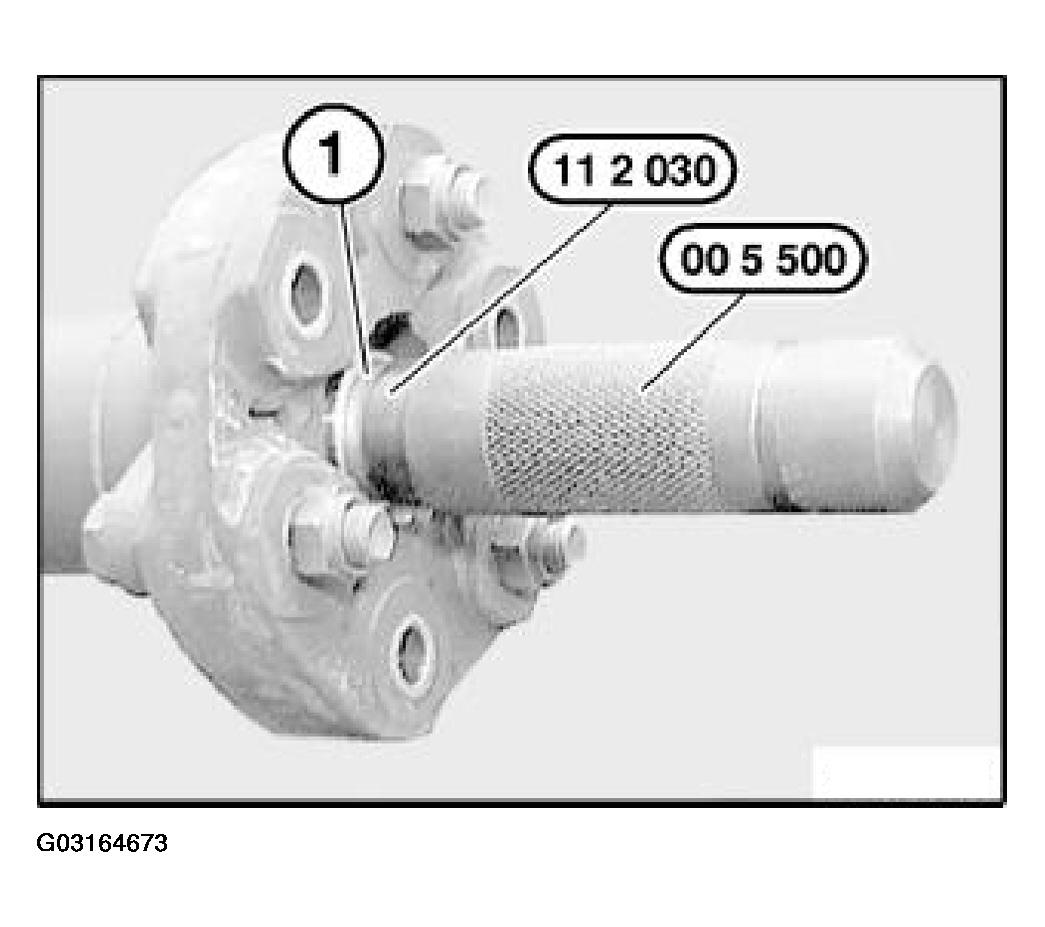

Drive in centering (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).

Fig 2: Driving In Centering (1) With Special Tools 11 2 030 And 00 5 500

Courtesy of BMW OF NORTH AMERICA, INC.

Grease centering mount.

Installation:

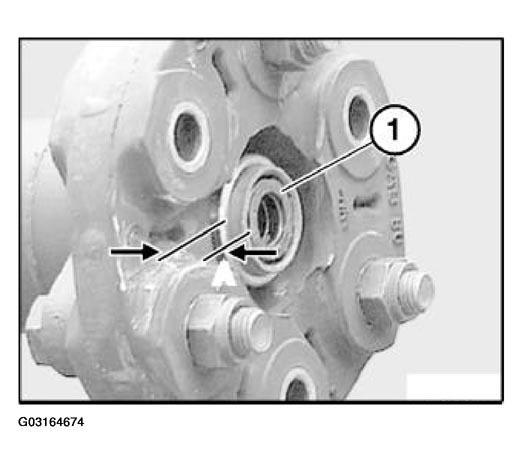

Observe protrusion A = 4+² mm of centering (1).

Fig 3: Checking Centering Mount Position

Courtesy of BMW OF NORTH AMERICA, INC.
