18 12 030 Replacing final muffler

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

00 2 210

WARNING: Scalding hazard! These tasks should only be carried out on an exhaust system that has cooled down!

Determining Cutting Point:

Carry over length of new rear muffler to installed rear muffler.

Mark out cutting point.

Fig 1: Marking Out Cutting Point

G03164645

Courtesy of BMW OF NORTH AMERICA, INC.

Cut exhaust pipes with special tool 00 2 210 at marked points and deburr.

Fig 2: Cutting Exhaust Pipes With Special Tool 00 2 210

G03164646

Courtesy of BMW OF NORTH AMERICA, INC.

If fitted, detach vacuum hose (1) from vacuum unit (2).

Fig 3: Detaching Vacuum Hose From Vacuum Unit

G03164647

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts on rubber mount of rear muffler on left and right and remove rear muffler.

Fig 4: Removing Rear Muffler

G03164648

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install rubber mounts for suspension from body, vibration damper and both chrome exhaust pipes on new rear muffler.

Installation:

Connect new rear muffler and center muffler by means of clamping sleeves

Cutting point is in middle of clamping sleeve.

Align exhaust system and clamping sleeves in such a way that there is sufficient spacing to adjoining components.

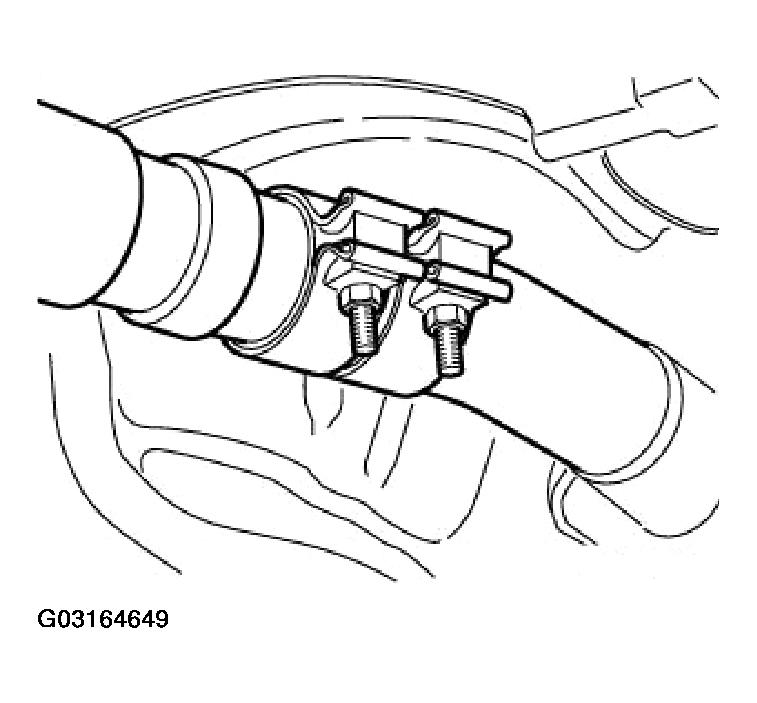

Fig 5: Aligning Exhaust System And Clamping Sleeves

G03164649

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check position of end pipes to body cutout.

Fig 6: Checking Position Of End Pipes To Body Cutout

G03164650

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws of clamping sleeves.
