Arrangement Of Flushing Device For Transmission A5S 440Z

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

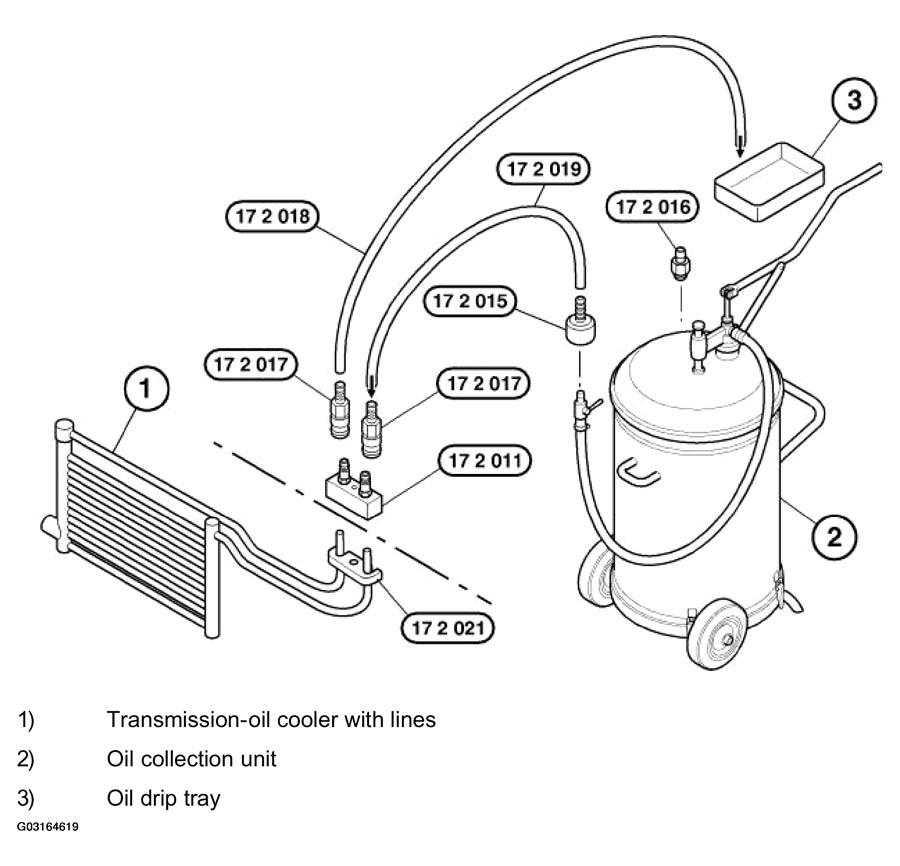

Fig 1: Identifying Arrangement Of Flushing Device For Transmission A5S 440Z

Courtesy of BMW OF NORTH AMERICA, INC.

17 2 012 Adapters (2 x) for connecting transmission-side oil cooler lines (1).

17 2 013 Banjo bolt for connecting transmission-side oil cooler lines (1).

17 2 015 Connection for oil collection unit (2), manufacturer: Deutsche Tecalemit or 17 2 016 Connection for oil collection unit (2), manufacturer: Horn.

17 2 017 Quick-release coupling (2 pieces).

17 2 018 Hose to oil drip tray (3).

17 2 019 Hose to oil collection unit (2).
